Energy Meter & Current Transformer

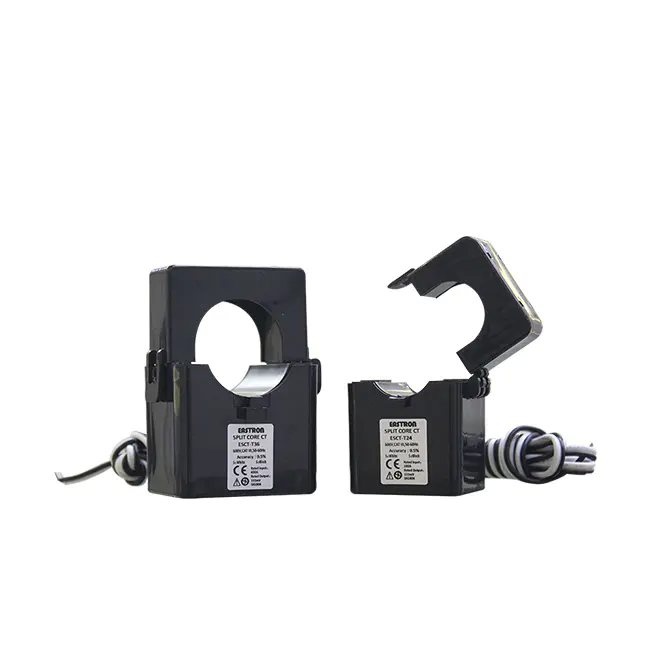

1/5a Output Split Core Current Sensor Eastron ESCT-T Series
- Primary input 5A~600A
- Secondary output: 1A/5A
- Split core, self-locking, easy installation
- Safe Operation
| Model | Primary Current |
Secondary Output |
Burden(VA) | |
| Class 0.5 | Class 1.0 | |||
| ESCT-T24 | 100A | 1A or 5A | - | 1.5 |
| 150A | 1A or 5A | - | 1.5 | |
| 200A | 1A or 5A | 1.5 | 2.5 | |
| 250A | 1A or 5A | 1.5 | 2.5 | |
| 300A | 1A or 5A | 1.5 | 2.5 | |
| ESCT-T36 | 100A | 1A or 5A | - | 1.5 |
| 150A | 1A or 5A | - | 1.5 | |
| 200A | 1A or 5A | 1.5 | 2.5 | |
| 300A | 1A or 5A | 1.5 | 2.5 | |
| 400A | 1A or 5A | 1.5 | 2.5 | |
| 500A | 1A or 5A | 2.5 | 3.75 | |
| 600A | 1A or 5A | 2.5 | 5 | |
