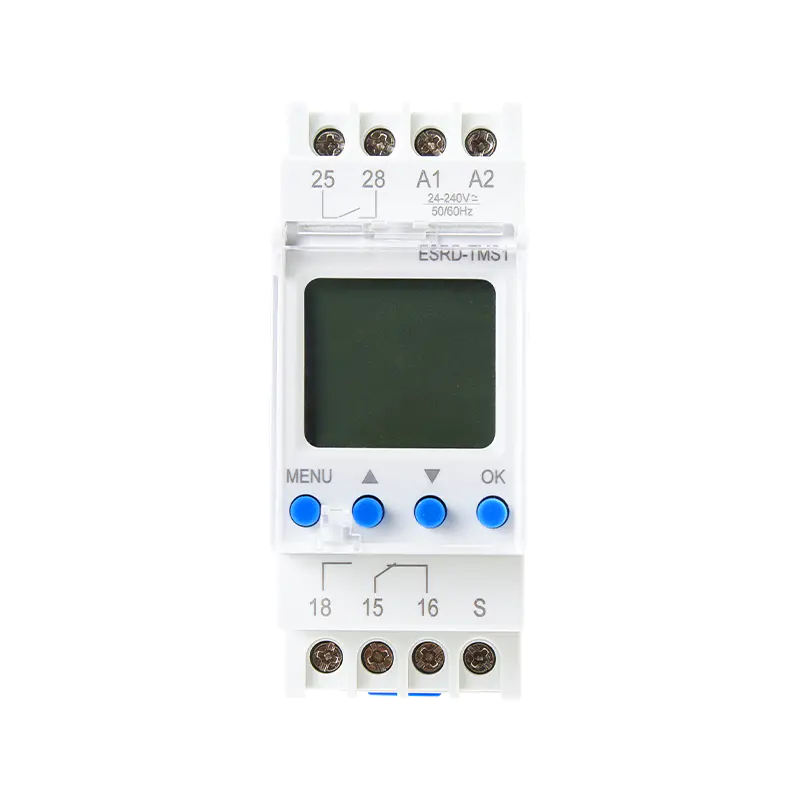

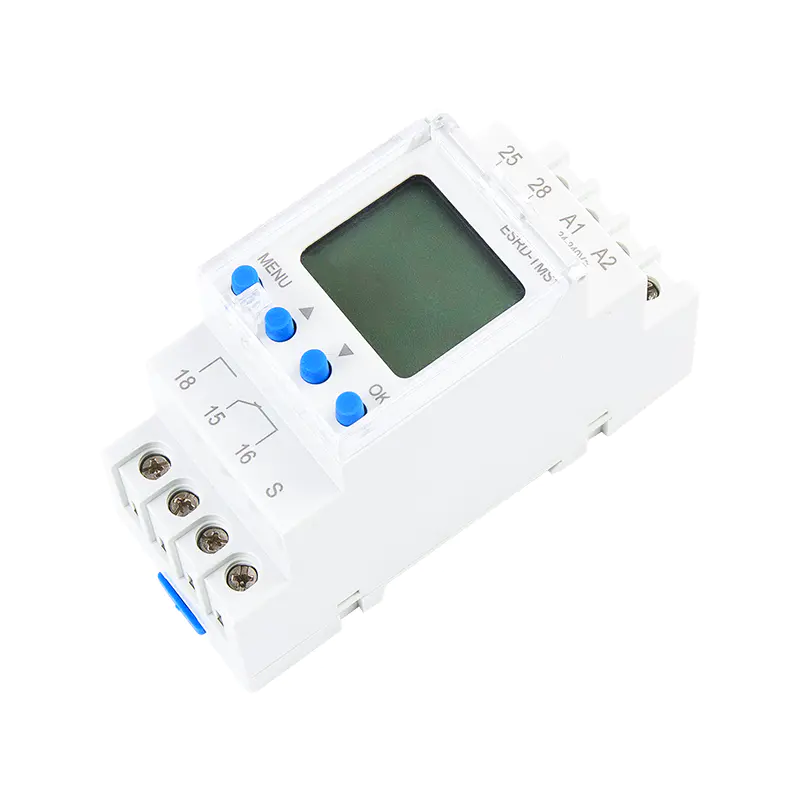

1c/o+1no Contacts Digital Multifunction Time Relay Eastron ESRD-TMS1
- Microcontroller based
- LCD display for functions, set delay and operating time 24 functions
- Time range:0s-99h59min59sec.
- AC/DC 24-240V supply voltage
- 1C/O+1NO contacts
- Backlighted LCD display
- Easy setting by keys
- 2 module Din-rail mounting
|
Technical data |
|
|
Supply terminals |
A1-A2 |
|
Pulse terminal |
S |
|
Supply voltage |
AC/DC 24-240V |
|
Time range |
0s-99h59min59sec |
|
Repetition accuracy |
max.±3s/24h 25V |
|
Data readout |
Back-lighted LCD display |
|
Data storage |
10 years |
|
Output contacts |
1C/0 + 1 NO |
|
Current rating |
8A/AC1 |
|
Contacts capacity |
AC-15:2A |
|
Insulation voltage |
250V |
|
Protection degree |
IP20 |
|
Mechanical life |
106 |
|
Protection degree |
IP20 |
|
Pollution degree |
3 |
|
Ambient temperature |
-5℃~40℃ |
|
Storage temperature |
-10℃~50℃ |
|
Wire size |
0.5mm2 〜1mm2 |
|
Standard |
IEC/EN60730-1/IEC/EN60730-2-7 |
