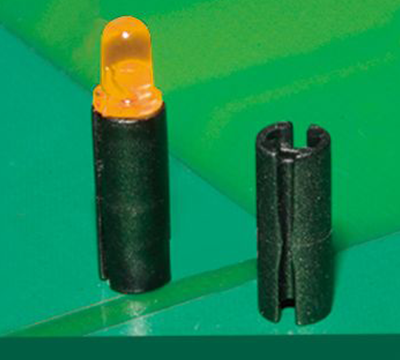

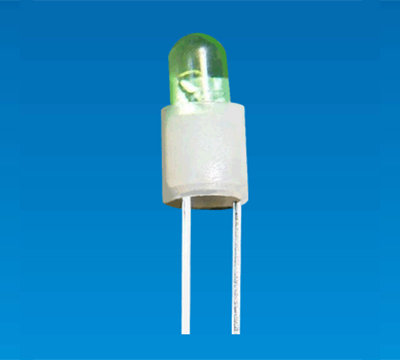

Ø3 Ø5 2 PIN CYLINDER LED HOLDER EDP-02
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for Ø3,Ø5 2pin LED lamp.
Ø3 Ø5 2 PIN CYLINDER LED HOLDER EDP-02
FEATURES
SPECIFICATION
FEATURES
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for Ø3,Ø5 2pin LED lamp.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL, BLACK
- BUILD-IN CLAMP FUNCTION
| PART NO | A | B | PACKAGE |
| EDP-02 | 2.0 | Ø4.25 | 2000 |
| EDP-3M | 3.5 | Ø4.25 | |
| EDP-04 | 4.0 | Ø4.25 | |
| EDP-4A | 4.5 | Ø4.25 | |
| EDP-05 | 5.0 | Ø4.25 | |
| EDP-5A | 5.5 | Ø4.25 | |
| EDP-06 | 6.0 | Ø4.25 | |
| EDP-6A | 6.5 | Ø4.25 | |
| EDP-07 | 7.0 | Ø4.25 | |
| EDP-7A | 7.5 | Ø4.25 | |
| EDP-08 | 8.0 | Ø4.25 | |
| EDP-8A | 8.5 | Ø4.25 | |
| EDP-09 | 9.0 | Ø4.25 | |
| EDP-9A | 9.5 | Ø4.25 | |
| EDP-10 | 10.0 | Ø4.25 | |
| EDP-10A | 10.5 | Ø4.25 | |
| EDP-11 | 11.0 | Ø4.25 | |
| EDP-11A | 11.5 | Ø4.25 | |
| EDP-12 | 12.0 | Ø4.25 | |
| EDP-12A | 12.5 | Ø4.25 | |
| EDP-17 | 17.0 | Ø4.25 |
