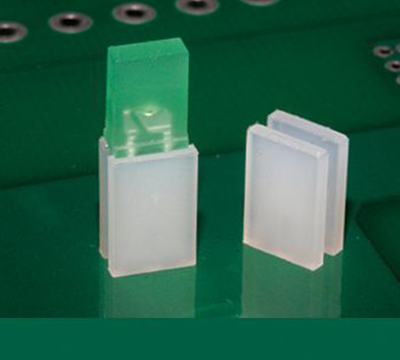

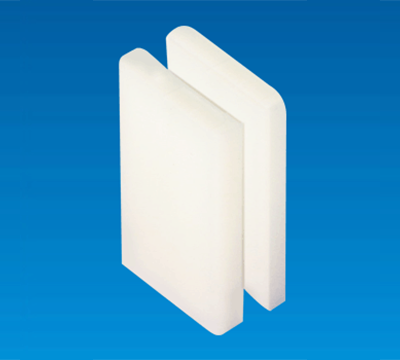

3 PIN QUADRATE LED HOLDER QLE-8LR
- To stand LED lamp on circuit board.
- Pads LED lamp with distance from circuit board.
- Suit for quadrate 3 pin LED Lamps.
3 PIN QUADRATE LED HOLDER QLE-8LR
FEATURES
SPECIFICATION
FEATURES
- To stand LED lamp on circuit board.
- Pads LED lamp with distance from circuit board.
- Suit for quadrate 3 pin LED Lamps.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- BUILD-IN CLAMP FUNCTION
| PART NO | A | F | D | FORM | PACKAGE |
| QLE-8LR | 8.5 | 3.5 | Ø1.1 | FORM.2 | 1000 |
| QLE-9AK | 9.0 | 4.0 | Ø1.1 | FORM.1 | 1000 |
