Adhesive Sealant & Lubricant

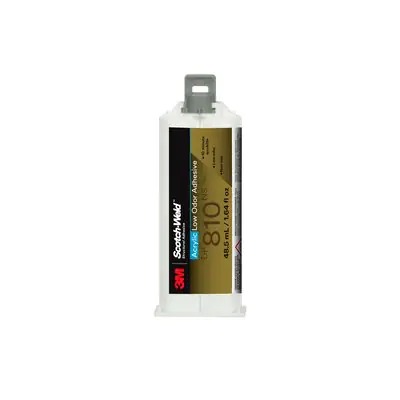

3M™ Scotch-Weld™ Low Odor Acrylic Adhesive DP810NS
- Low odor adhesive is ideal for any setting where harsh fumes or flammability are an issue
- Delivers non-sag formulation so adhesive stays where applied
- Provides high shear and peel strength and is toughened for impact resistance
- 10 minute work life and 20 minute handling strength
- Bonds oily metals with minimal surface prep
- Bonds most plastics, composites and metals
Specifications
Details
3M™ Scotch-Weld™ Low Odor Acrylic Adhesive DP810NS is a non-sag, toughened two-part, room-temperature curing acrylic adhesive specially formulated to bond oily metals, plastics, and other surfaces. With lower odor and non-flammable properties, 3M™ Scotch-Weld™ Acrylic Adhesive DP810NS contributes to a safer work environment compared to typical acrylic adhesives.
When using a Duo-Pak (DP) size adhesive, rely on 3M dispensing equipment for convenient and accurate metering, mixing and dispensing.
Delivers Non-sag Formulation so Adhesive Stays Where Applied
This unique acrylic gives you the strong shear and peel strength along with good impact resistance for durability to meet your demanding end-use applications. Making work safer, faster, and more efficient, that's just a few of the benefits of 3M™ Scotch-Weld™ Low Odor Acrylic Adhesive DP810NS. It bonds on a variety of substrates ranging from metals, composite and many plastics including nylon. The non-sag formula creates rigid adhesion. The acrylic adhesive cures to a tan or black color.
Recommended Applications
10 Minute Work Life and 20 Minute Handling Strength
With a mix ratio is 1:1, 3M™ Scotch-Weld™ Low Odor Acrylic Adhesive DP810NS provides a 10 minute work life to allow time to adjust fit prior to setting. The adhesive reaches handling strength in approximately 20 minutes and is fully cured in 8-24 hours (at 72°F/22°C). (Note: excess adhesive exposed to air around the bond lines may remain tacky up to 48 hrs.) 3M™ Scotch-Weld™ Low Odor Acrylic Adhesive DP810NS is approved under UL 746C, polymeric materials use in electrical equipment.
Easy Adhesion with Acrylic
Acrylic adhesives are two-part adhesives that provide excellent bond strength and durability, although slightly lower adhesion than 2 part epoxy in some situations. Acrylic glues have several features that make them easier to use, including a much faster cure speed, higher tolerance for oily or unprepared bonding surfaces and the ability to bond a wide variety of materials, including nearly all plastics. Newer acrylic adhesive formulations are room temperature stable with a long shelf life.
|
Adhesion Strength
|
320 oz/in
|
|
Adhesive Type
|
Acrylic
|
|
Alternative Sale Availability
|
6. This item is for industrial use only and there are no VOC restrictions.
|
|
Brand
|
Scotch-Weld™
|
|
Color Family
|
Beige, Multi-color
|
|
Container Size (Imperial)
|
1.64 fl oz (US), 13.52 fl oz (US), 5.28 Gallon, 6.76 fl oz (US)
|
|
Container Size (Metric)
|
20 Liter, 200 ml, 400 ml, 48.5 ml
|
|
Design Challenges
|
Impact & Shock Absorption, Noise Vibration & Harshness Control NVH
|
|
Full Cure Time
|
8-24 Hours @ 72 F (22 C)
|
|
Indoor/Outdoor
|
Both
|
|
Industries
|
Automotive, Construction, Consumer Goods, Electronics, General Industrial, Metalworking, Military, Military & Government, Signage, Specialty Vehicle, Transportation, Woodworking
|
|
Market
|
General Industrial
|
|
Maximum Operating Temperature (Celsius)
|
79 Degree Celsius
|
|
Maximum Operating Temperature (Fahrenheit)
|
175 Degree Fahrenheit
|
|
Mix Ratio Volume Base:Accelerator
|
1 : 1
|
|
Open Time
|
10 min @ 72 °F (22 °C)
|
|
Physical Form
|
Flowable Liquid
|
|
Position
|
Best
|
|
Product Color
|
Tan, White
|
|
Product Form
|
Cartridge, Gallon, Liter
|
|
Product Type
|
Acrylic Adhesive
|
|
Regulatory Key
|
AD-02454
|
|
Set Time
|
10 min
|
|
Shear Strength
|
4200 psi
|
|
Shelf Life in Months (From Date of Manufacture)
|
12
|
|
Specific Gravity
|
1.07
|
|
Storage Temperature
|
32 F (0 C), <=40 Degree Fahrenheit
|
|
Storage Temperature (Celsius)
|
0°C, 4 °C
|
|
Substrate
|
Ceramic, Glass, Hardwood, High Surface Energy, (400-1100 Dynes/cm), Metal, Oily, Paint, Plastic (ABS, PVC, Acrylic), Plastic (High Performance Nylon), Rubber (Except EPDM), Smooth, Wood
|
|
Substrate 1
|
Glass & Ceramics, Metal, Plastic (ABS, PVC, Acrylic), Plastic (High Performance Nylon), Wood & Hardboard
|
|
Substrate 2
|
Glass & Ceramics, Metal, Plastic (ABS, PVC, Acrylic), Plastic (High Performance Nylon), Wood & Hardboard
|
|
Units per Case
|
1, 12, 6
|
|
Viscosity
|
Non-sag
|
|
Viscosity Range (cps) at Room Temperature
|
90,000-95,000, 95,000
|
|
Volatile Organic Compounds (VOCs)
|
See Safety Data Sheet, Regulatory Data Sheet
|
|
Volume (Imperial)
|
1.71 fl oz, 13.52 fl oz, 5 gal, 6.76 fl oz
|
|
Volume (Metric)
|
20 L, 200 mL, 400 mL, 48.5 mL
|
|
Work Time
|
10 Minutes
|
Details
3M™ Scotch-Weld™ Low Odor Acrylic Adhesive DP810NS is a non-sag, toughened two-part, room-temperature curing acrylic adhesive specially formulated to bond oily metals, plastics, and other surfaces. With lower odor and non-flammable properties, 3M™ Scotch-Weld™ Acrylic Adhesive DP810NS contributes to a safer work environment compared to typical acrylic adhesives.
When using a Duo-Pak (DP) size adhesive, rely on 3M dispensing equipment for convenient and accurate metering, mixing and dispensing.
Delivers Non-sag Formulation so Adhesive Stays Where Applied
This unique acrylic gives you the strong shear and peel strength along with good impact resistance for durability to meet your demanding end-use applications. Making work safer, faster, and more efficient, that's just a few of the benefits of 3M™ Scotch-Weld™ Low Odor Acrylic Adhesive DP810NS. It bonds on a variety of substrates ranging from metals, composite and many plastics including nylon. The non-sag formula creates rigid adhesion. The acrylic adhesive cures to a tan or black color.
Recommended Applications
- Sporting goods (metal to metal, metal to plastic bonding)
- Appliance manufacturing (metal to metal, metal to glass)
- Electronic casing assembly
10 Minute Work Life and 20 Minute Handling Strength
With a mix ratio is 1:1, 3M™ Scotch-Weld™ Low Odor Acrylic Adhesive DP810NS provides a 10 minute work life to allow time to adjust fit prior to setting. The adhesive reaches handling strength in approximately 20 minutes and is fully cured in 8-24 hours (at 72°F/22°C). (Note: excess adhesive exposed to air around the bond lines may remain tacky up to 48 hrs.) 3M™ Scotch-Weld™ Low Odor Acrylic Adhesive DP810NS is approved under UL 746C, polymeric materials use in electrical equipment.
Easy Adhesion with Acrylic
Acrylic adhesives are two-part adhesives that provide excellent bond strength and durability, although slightly lower adhesion than 2 part epoxy in some situations. Acrylic glues have several features that make them easier to use, including a much faster cure speed, higher tolerance for oily or unprepared bonding surfaces and the ability to bond a wide variety of materials, including nearly all plastics. Newer acrylic adhesive formulations are room temperature stable with a long shelf life.
