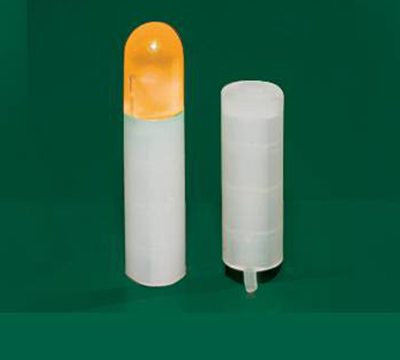

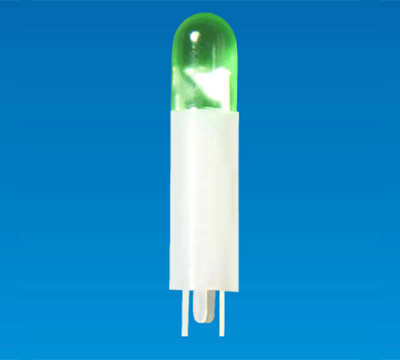

Ø5 2 PIN CYLINDER LED HOLDER LED-4T
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for 5mm 2pin LED lamp.
- With mount feet.
Ø5 2 PIN CYLINDER LED HOLDER LED-4T
FEATURES
SPECIFICATION
FEATURES
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for 5mm 2pin LED lamp.
- With mount feet.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
| PART NO | A | B | C | PACKAGE |
| LED-4T | 4.0 | Ø5.0 | 4.0 | 2000 |
| LED-4DT | 4.0 | Ø4.2 | 3.0 | |
| LED-6T | 6.0 | Ø5.0 | 4.0 | |
| LED-7T | 7.0 | Ø5.0 | 4.0 | 1000 |
| LED-8T | 8.0 | Ø5.0 | 4.0 | |
| LED-10T | 10.0 | Ø5.0 | 4.0 | |
| LED-11T | 11.0 | Ø5.0 | 4.0 | |
| LED-12T | 12.0 | Ø5.0 | 4.0 | |
| LED-12AT | 12.5 | Ø5.0 | 4.0 | |
| LED-13T | 13.0 | Ø5.0 | 4.0 | |
| LED-14T | 14.0 | Ø5.0 | 4.0 | |
| LED-14FT | 14.5 | Ø5.0 | 4.0 | |
| LED-15T | 15.0 | Ø5.0 | 4.0 | |
| LED-17T | 17.0 | Ø5.7 | 4.6 | |
| LED-18T | 18.3 | Ø5.0 | 4.0 | |
| LED-19T | 19.0 | Ø5.0 | 4.0 | |
| LED-20T | 20.0 | Ø5.0 | 4.0 | |
| LED-24T | 24.0 | Ø5.0 | 4.0 | 500 |
| LED-28T | 28.0 | Ø5.0 | 4.0 |
