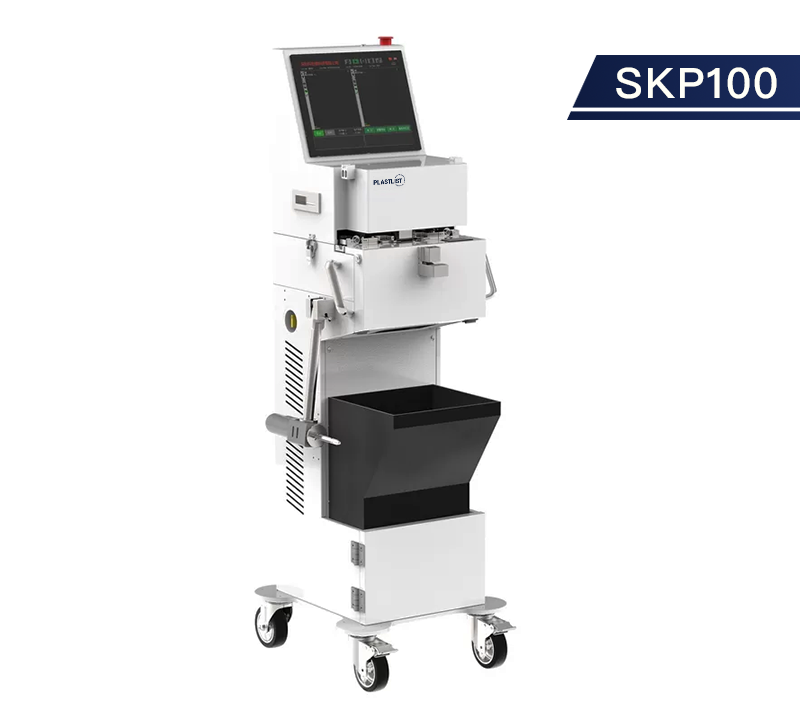

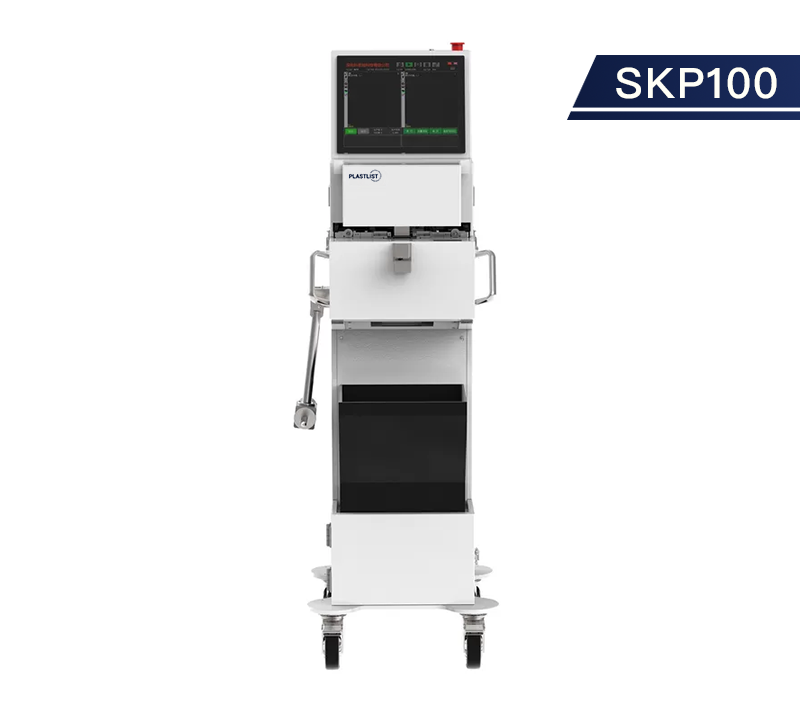

Automatic SMT Splicing Machine
Empty Pocket and Wrong Material Detection
Connection with ERP and MES System
Connection with ERP and MES System
Features
Application
For jointing carrier tapes in the SMT process
Specification
- Automatic splicing
- Applicable for all types of 8mm carrier tapes.
- Improve the splicing speed and FPY (≥99.3%)
- Low noise: unique non-vacuum splicing design to avoid excessive noise
- Automatic detection of empty pocket and pitch by visual recognition system
- Hot-melt splicing tape are applied for improving the splicing strength, the carrier tape will not loose or break when moving in the feeder
- Wrong material detection by Intelligent validation system connected with ERP or MES system
Application
For jointing carrier tapes in the SMT process
Specification
| Appearance | Dimension/mm: L469*W416*H1,346 Weight/kg: 70 |
| Conveyor | Conveyor Height/mm: 930±10 Width/mm: 8 |
| Carrier Tape | Material: Paper /Plastics Width/mm: 8 Pitch/mm: 2, 4 Minimum Splicing Length/mm: 120 |
| Splicing Tape | Length of Splicing Tape/mm: 32 |
| Equipment accuracy | Carrier Tape Feeding Accuracy/mm: ±0.10 |
| Power Supply System | Battery Capacity/Ah: 22 Battery Voltage/V: 48 Charging Voltage/V: 110-220 Charging Time/ Hour: 8 Full Charging Working Time/Hour:12- 16 |
| Splicing Efficiency | Splicing Time (C/T)/Sec: 12-15(Loading time isn’t included) Winding Speed/RPM: 300 |
| FPY | Empty Component Spliced/pcs: 0-2 |
| Accuracy | Misalignment Accuracy/mm: ±0.15 |
| Rewinding | Control Mode: Automatic Reset Button Winding Device: One set (Left Side) Carrier Tape Reel/Inch: 7/ 13/ 15 |
| Control System | VCU PLC+PPC |
| Empty Component Detection | Visual Inspection (Component 01005 and above ) |
| Optional Accessories | Automatic Pre-Cutting Device Dock for connecting with MES System Barcode Scanner Automatic Brass Press Receiving Device |
