SPECIFICATIONS
Operating frequency(mechanical):120 Operation / mim
Operating frequency(electrical):
10~30 Operation / mim
Contact resistance:
100m Ω(max)
Insulation resistance(at 500 VDC)
100M Ω(Min)
Service life(mechanical)
MIN.500,000 Operations
RATING
0.1A/3A 125V;0.1A/3A 12VDCAPPLICATION
1. Industrial and automotive applicationsdetection of door opening and closing and shift lever position etc.
2. Household appliances
propane stoves, vacuum cleaners, washing machines, air conditioners etc.
3. Security system

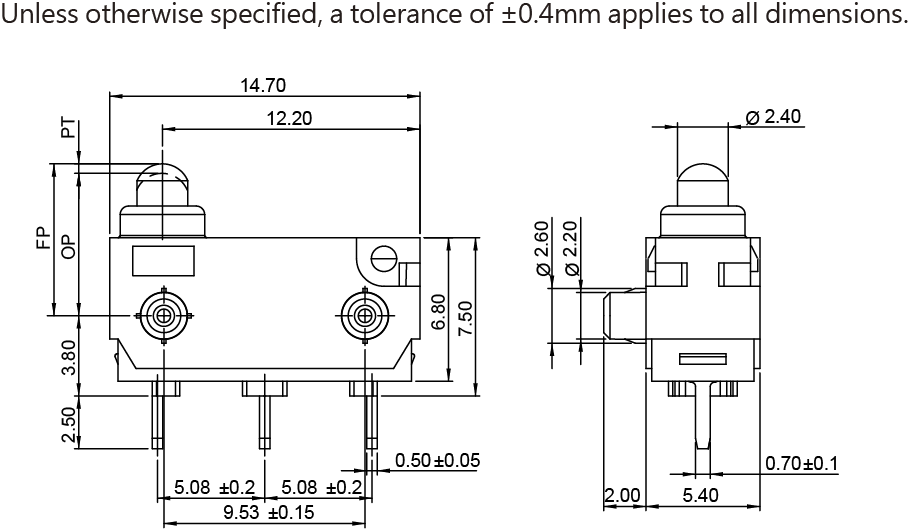

DIMENSIONS
CONTACT CONFIGURATION
ORDER INFORMATION
TERMINAL TYPES

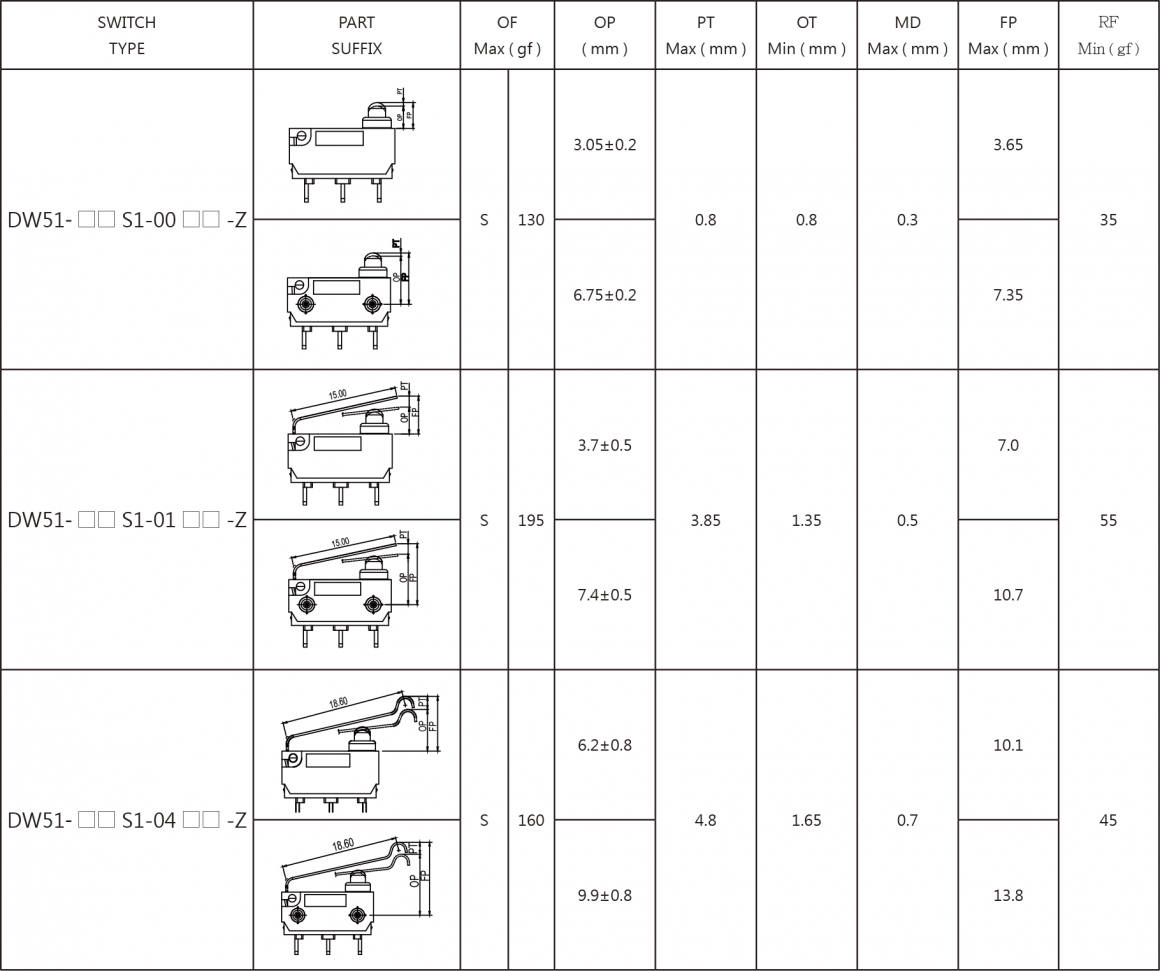

OPERATING CHARACTERISTICS
