Mold Parts

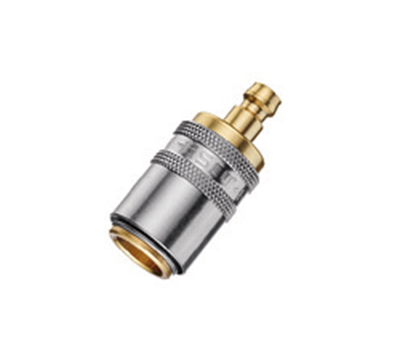

Adapter, open flow

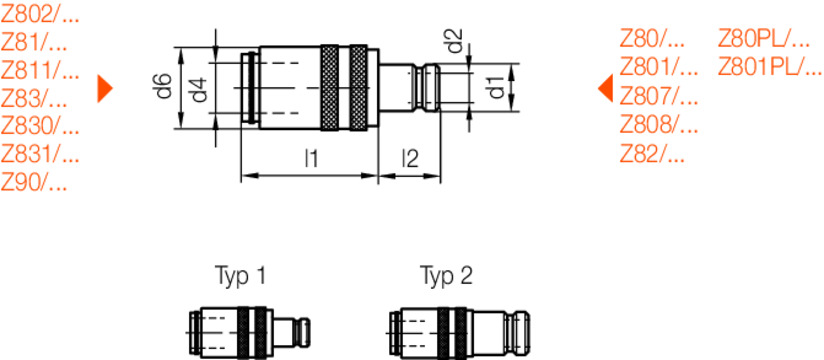

| Typ | p | l2 | l1 | d6 | d2 | d4 | d1 | Product |
|---|---|---|---|---|---|---|---|---|
| 2 | 25 | 14 | 30 | 17 | 8 | 9 | 13 |
Z8021/9x13
|
| 1 | 25 | 14 | 36,5 | 22 | 6 | 13 | 9 |
Z8021/13x9
|
| 2 | 25 | 27 | 36,5 | 22 | 13 | 13 | 19 |
Z8021/13x19
|
