Mold Parts

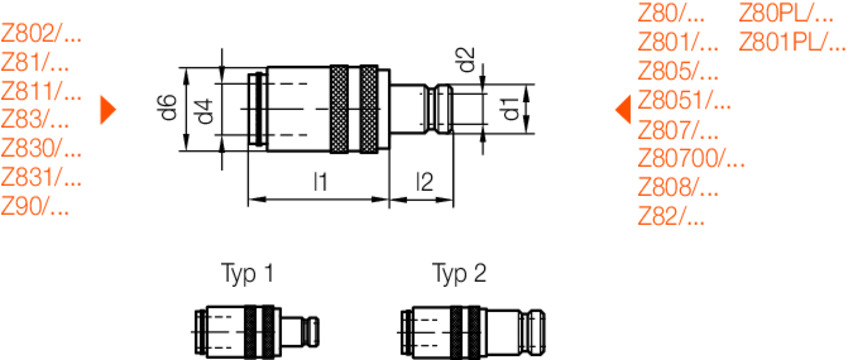

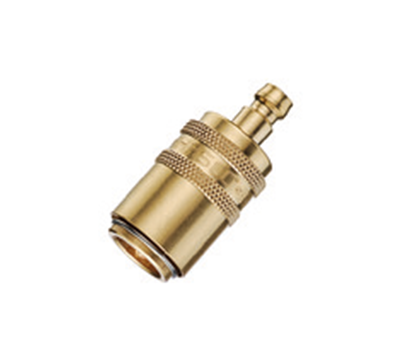

Adapter, with valve
| p | l2 | l1 | d6 | d2 | d4 | d1 | Product |
|---|---|---|---|---|---|---|---|
| 25 | 15 | 20,5 | 10 | 6 | 5 | 9 |
Z802/5x9
|
| 25 | 14 | 30 | 17 | 8 | 9 | 13 |
Z802/9x13
|
| 25 | 14 | 36,5 | 22 | 6 | 13 | 9 |
Z802/13x9
|
| 25 | 27 | 36,5 | 22 | 13 | 13 | 19 |
Z802/13x19
|
| 25 | 14 | 58 | 31 | 9 | 19 | 13 |
Z802/19x13
|
