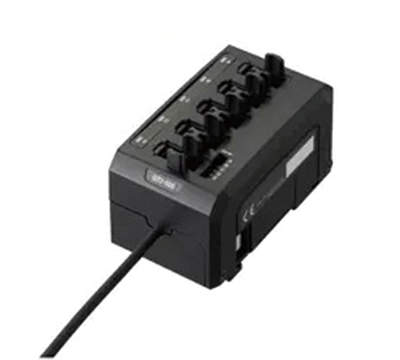

Amplifier main unit supporting multi-head connection
|
Model |
GT2-500 |
|||
|
Mounting method |
DIN-rail mount*1 |
|||
|
Main unit/expansion unit |
Main unit |
|||
|
Power supply voltage |
20 to 30 VDC, including 10 % ripple (P-P) (GT2-550 power supplied from the main unit), Class 2 |
|||
|
Response time |
hsp(3)/5/10/100/500/1,000 ms |
|||
|
Number of expandable units |
Maximum of 3 units including the main unit |
|||
|
Rating |
Power consumption |
4,800 mW, 160.0 mA or less at 30 V |
||
|
Environmental resistance |
Ambient temperature |
-10 to +50 °C 14 to 122 °F |
||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
|||
|
Materials |
Main body |
Main body case: polycarbonate, Cable: PVC |
||
|
Weight |
Approx. 140 g |
|||
|
*1 When connecting the DL Series and expansion units, always connect them when the amplifier units is connected to the DIN-rail and use the end unit (OP-26751 included with the DL Series). |
||||
