Sensor

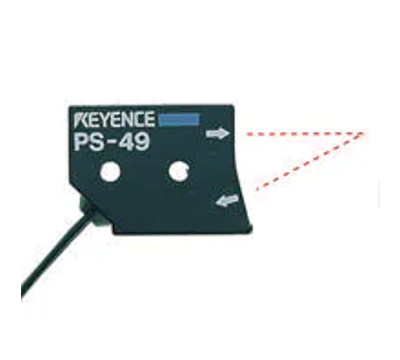

Amplifier Separate Type Photoelectric Sensor PS-49
- Reflective Sensor Head
- General-purpose Type
- Long-distance
Amplifier Separate Type Photoelectric Sensor PS-49
|
Model |
PS-49*1 |
|||
|
Type |
Definite reflective |
|||
|
Detecting distance |
TURBO |
- |
||
|
FINE |
32 to 53 mm 1.26" to 2.09" |
|||
|
Light source |
Red LED |
|||
|
Environmental resistance |
Ambient temperature |
-10 to +50 °C 14 to 122 °F (No freezing) |
||
|
Relative humidity |
35 to 85 % RH |
|||
|
Weight |
Approx. 30 g (including 2-m 6.6' cable) |
|||
|
*1 Models with a (C) come with plug-in connectors. (For other models, use the connector included with the amplifier.) |
||||
