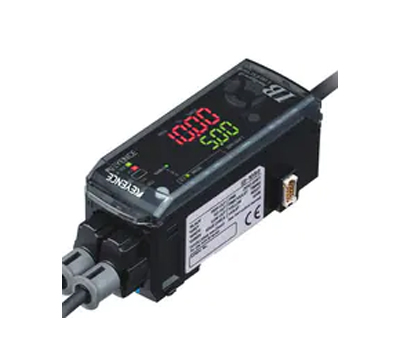

Amplifier Unit DIN Rail Type Keyence IB-1050
Rated no-voltage input: ON voltage 2 V or less, OFF current 0.05 mA or less
Rated voltage input: Max. input rating 30 V or less, ON voltage 7.5 V or more, OFF current 0.05 mA or less
*2 Rated NPN open collector output: Max. 100 mA/ch (20 mA/ch when expansion units are connected), 30 V or less, residual voltage 1 V or less
Rated PNP open collector output: Max. 50 mA/ch (20 mA/ch when expansion units are connected), power voltage or less, residual voltage 2 V or less
*3 Use with the over current protection device which is rated 30 V or more and not more than 1 A.
*4 Does not include the power consumption of the load.
The power consumption with expansion units installed is the total of each amplifier unit’s power consumption.
Example: When using one main unit (IB-1000) with two expansion units (IB-1050) (2400 mW X 1) + (2400 mW X 2) = 7200 mW
|
Model |
IB-1050 |
|||
|
Type |
DIN rail mount |
|||
|
Main unit/Expansion unit |
Expansion unit |
|||
|
Head compatibility |
Yes |
|||
|
Display |
Display resolution |
0.01 %, 0.1 %, 1 % (switchable) |
||
|
Display range |
–99.999 to 99.999, –99.99 to 99.99 |
|||
|
Digital display method |
Dual7-segmentdisplay |
|||
|
Operating indicators |
Judgment indicator: 2-color (green/red) LED (HI, GO, LO) |
|||
|
Analog output voltage |
No |
|||
|
Analog current output |
||||
|
Control Input |
Bank switch input, zero shift input |
Non-voltage input *1 |
||
|
Control input |
Zero shift input |
|||
|
Laser emission stop input |
||||
|
Timing input |
||||
|
Reset input |
||||
|
Adjust input |
||||
|
Control output |
Judgment output (check output) |
Open collector (NPN/PNP switchable, N.O./N.C. switchable) *2 |
||
|
Power supply |
Power consumption |
2400 mW or less (at 30 V, 80 mA max.) *3 *4 (including analog current output) |
||
|
Power voltage |
Supplied from main unit *3 |
|||
|
Environmental resistance |
Pollution degree |
2 |
||
|
Ambient temperature |
-10 to +50 °C (No freezing) |
|||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Vibration resistance |
10 to 55 Hz, compound amplitude 1.5 mm, 2 hours each for X, Y, Z axes |
|||
|
Material |
Main unit case/Front panel: polycarbonate, keytop: polyacetal, cable: PVC |
|||
|
Weight |
Approx. 140 g (including accessories) |
|||
|
*1 The four external input wires are assigned with desired inputs. |
||||
