Sensor
|
Model |

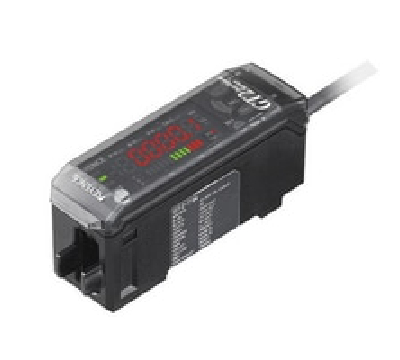

GT2-71N |
|||
|
Mounting method |
DIN-rail mount |
|||
|
Output |
NPN output |
|||
|
Main unit/expansion unit |
Main unit |
|||
|
Power supply voltage |
10 to 30 VDC, including 10 % ripple (P-P), Class 2*1 |
|||
|
Power consumption |
Normal |
2,200 mW max. (30 V, 73.3 mA max.) |
||
|
Power saving (Eco) |
1,700 mW max. (30 V, 56.7 mA max.) |
|||
|
Display power |
Measured value display |
6 + 1/2-digit 7-segment LED (red) |
||
|
Other displays |
2-color, 13-level bar LED display (red, green), indicators (red, green) |
|||
|
Display range |
-199.999.9 to 199.999.9 |
|||
|
Display resolution |
0.1 μm 0.004 Mil |
|||
|
Control input |
Timing/preset/ |
No-voltage input |
||
|
Control output |
HH/HI/GO/LO/LL |
NPN open collector, 40 V 50 mA or less, residual voltage 1 V or less*1*2 |
||
|
Analog output |
- |
|||
|
Response time |
hsp(3)/5/10/100/500/1,000 ms |
|||
|
Environmental resistance |
Ambient temperature |
-10 to +50 °C 14 to 122 °F (GT2-71MCN/71MCP: -10 to +45 °C 14 to 113 °F when expansion unit (s) is connected) |
||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
|||
|
Material |
Main body case: Polycarbonate, Key top: Polyacetal, Front sheet: PET, Cable: PVC |
|||
|
Weight |
Approx. 140 g (including power cable) |
|||
|
*1 When adding expansion units, there are the following restrictions according to the number of connected units. |
||||
