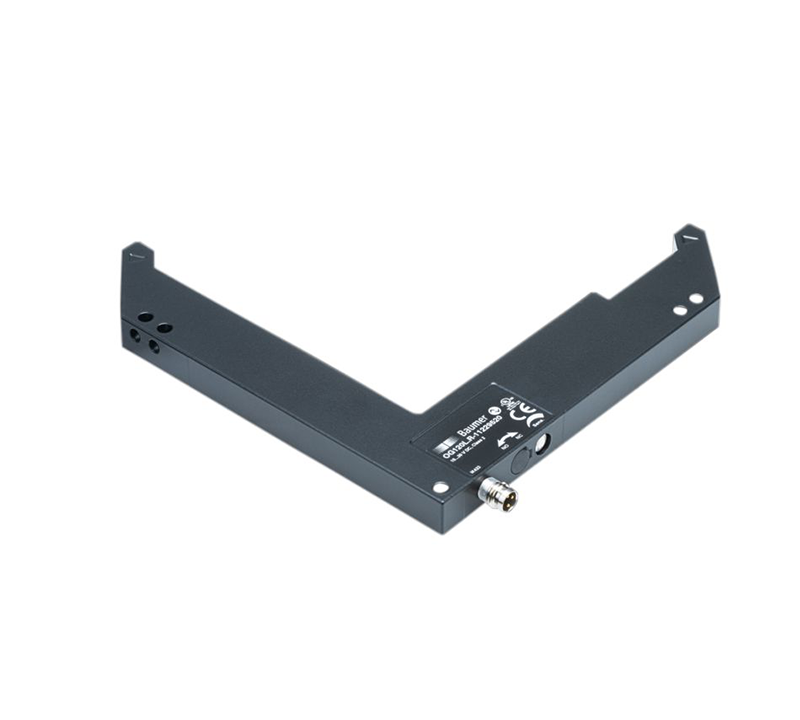

    Angle sensors Baumer OG120L.R-GW1O.7WL

    General Data
    Type Through beam sensor
    Object Size > 1 mm
    Repeat Accuracy < 0.06 mm
    Hysteresis < 0.25 mm
    Sensitivity Adjustment Potentiometer, 270° IO-Link
    Light Source Pulsed red LED
    Wave Length 660 nm
    Light Indicator LED yellow
    Communication Interface
    IO-Link Yes
    Interface IO-Link V1.1
    Electrical Data
    Response Time / Release Time < 0.1 ms 0
    Switching Frequency < 5000 Hz, default
    < 1500 Hz
    < 250 Hz
    < 8000 Hz
    Voltage Supply Range +Vs 10 ... 30 VDC
    Current Consumption Max. (no load) 40 mA
    Output Function Light / dark operate switchable
    Output Circuit Push-pull / IO-Link
    Voltage Drop Vd < 2.8 VDC
    Output Current < 200 mA
    Short Circuit Protection Yes
    Reverse Polarity Protection Yes
    Mechanical Data
    Width / Diameter 150 mm
    Fork Width Sb 158.4 mm
    Height / Length 150 mm
    Penetration Depth 120 mm
    Depth 12 mm
    Type L profile
    Housing Material Die-cast zinc
    Connection Types Connector M8, 3 pin
    Ambient Conditions
    Operating Temperature -25 ... +60 °C
    Protection Class IP 67
