Soldering

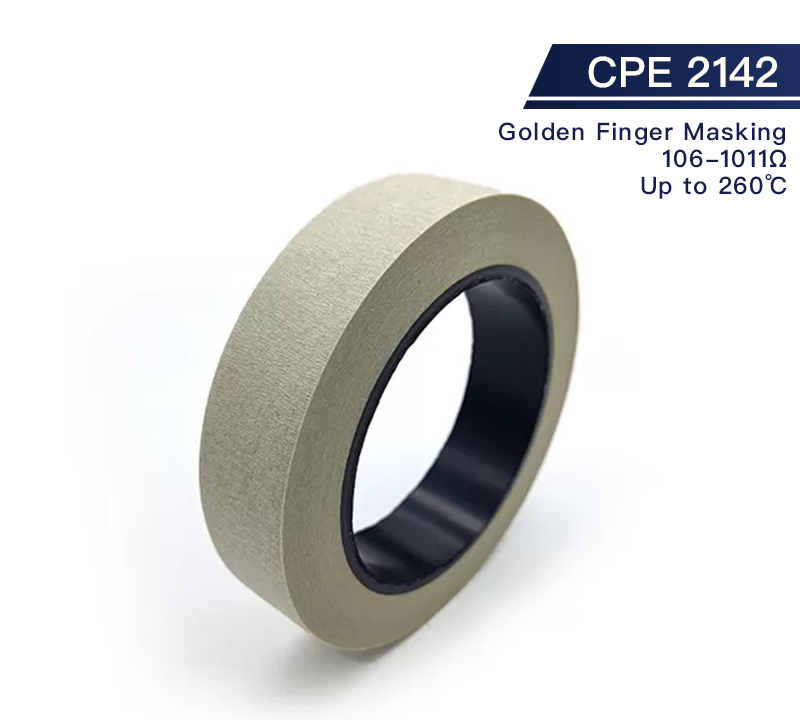

Anti-Static Crepe Paper Heat Resistant Masking Tape
- For golden finger masking in wave soldering process
- Leaves no residue
- Anti-Static
- RoHS Compliant
Description
High temperature performance, slivering resistance after heating, no solder bath contamination and easy peel off after masking.
Crepe paper with acrylic adhesive. Superior in heat resistance. This tape is developed for wave solder masking of P.C. Board.
Application
For protecting circuit board/ golden finger in the wave soldering process
Features
Typical Physical Properties and Performance Characteristics
Product Construction/Material Description
High temperature performance, slivering resistance after heating, no solder bath contamination and easy peel off after masking.
Crepe paper with acrylic adhesive. Superior in heat resistance. This tape is developed for wave solder masking of P.C. Board.
Application
For protecting circuit board/ golden finger in the wave soldering process
Features
- For golden finger masking in wave soldering process
- Leaves no residue
- Anti-Static
- RoHS Compliant
Typical Physical Properties and Performance Characteristics
|
Item |
Typical Value |
|
Total Thickness |
0.145±0.010mm |
|
colour |
Off-white |
|
Adhesion to Steel |
≥2N/25mm |
|
Tensile Strength |
≥2KN/M |
|
Elongation |
≥5% |
|
Surface Resistance |
106-1011ohms |
|
Operating Temperature |
260℃ |
Product Construction/Material Description
|
Part No |
Description |
Length/m |
Width/mm |
|
CPE21420950 |
Anti-Static Crepe Paper Heatproof Masking Tape |
50 |
9 |
|
CPE21421950 |
Anti-Static Crepe Paper Heatproof Masking Tape |
50 |
19 |
