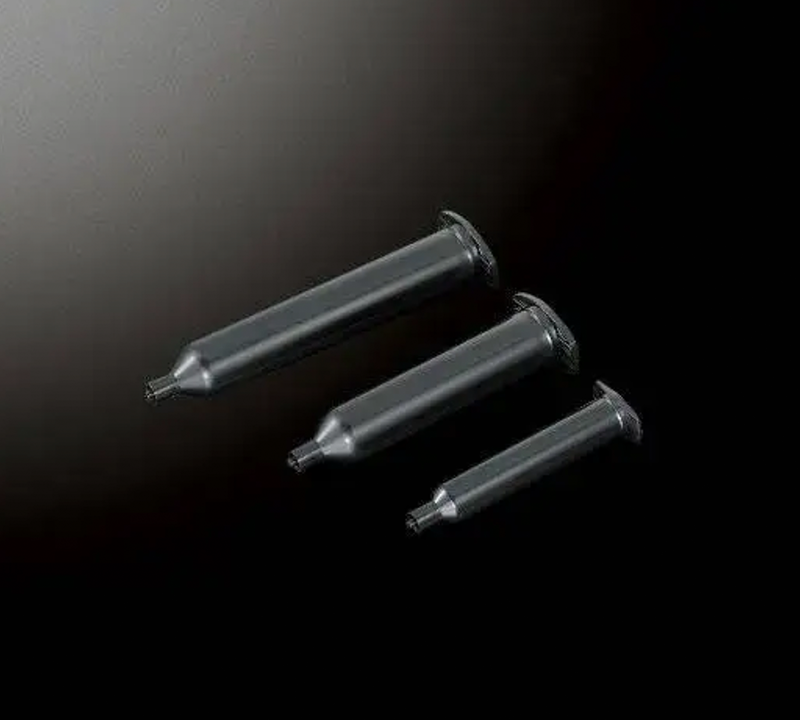

Antistatic syringe set Musashi PSY-10E-SEP PSY-30E-SEP PSY-50E-SEP

Syringe capacity	Antistatic syringe					Antistatic adapter tube (with stopper)		Applicable dispenser
	Model	Dimensions (mm)			Minimum Order Quantity (pcs per pack)	Model	Tube length
		Full length	Outside diameter	Flange dimension
10 mL	PSY-10E-SEP	105.5	φ18.3	32×20	50	AT-10E-H-SEP-1.0M	1m	-
30 mL	PSY-30E-SEP	130	φ26.2	45×30	50	AT-50E-H-SEP-1.0M	1m	-
						AT-50E-H-SEP-SIGMA-1.0M	1m	For Σ
50 mL	PSY-50E-SEP	161.5	φ26.2	45×30	50	AT-50E-H-SEP-1.0M	1m	-
						AT-50E-H-SEP-SIGMA-1.0M	1m	For Σ

Note:
1. Working pressure: 0.5 MPa (5 kgf/cm2) maximum, when using a PSY-10E-SEP at normal temperature 0.3 MPa (3 kgf/cm2) maximum, when using a PSY-30E-SEP or a PSY-50E-SEP at normal temperature
2. The tube length of the adapter tube can be specified (in steps of 0.5 mm). The following example shows how to specify the length. e.g., To order a 1.5 m-long antistatic adapter tube (with stopper) for a 10 mL syringe, specify it as “AT-10E-H-SEP-1.5M”.
