Introduction

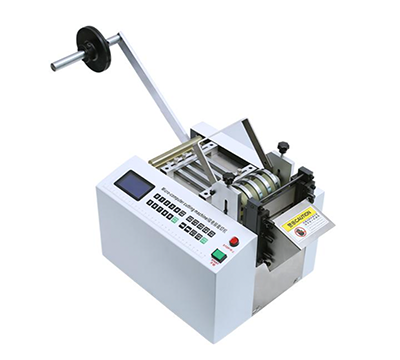

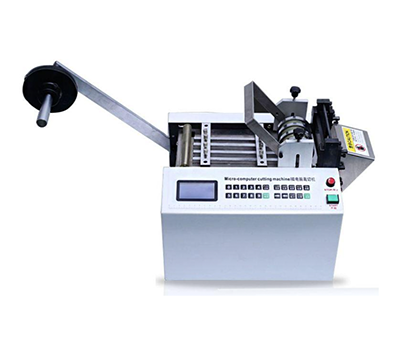

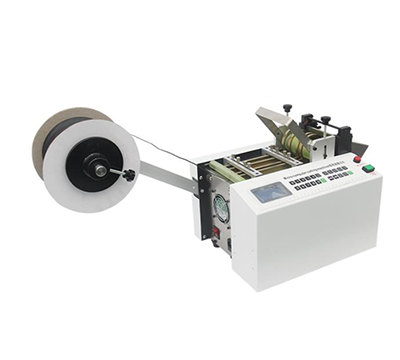

This machine adopts microcomputer numerical control display device, cutting length, quantity and feeding speed can be set freely, and can be equipped with adjustable roller feeding mechanism. The pressure and lifting are automatically adjusted on both sides, which can be discharged and matched with ejector feeding mechanism to prevent material. Suitable for PVC heat shrinkable sleeve, glass fiber tube, PEPU silicone rubber tube, zipper, cable, wire, tie ribbon, copper sheet, aluminum sheet, nickel sheet, self-adhesive paper, insulating paper, etc.
Technical Parameters
This machine adopts microcomputer numerical control display device, cutting length, quantity and feeding speed can be set freely, and can be equipped with adjustable roller feeding mechanism. The pressure and lifting are automatically adjusted on both sides, which can be discharged and matched with ejector feeding mechanism to prevent material. Suitable for PVC heat shrinkable sleeve, glass fiber tube, PEPU silicone rubber tube, zipper, cable, wire, tie ribbon, copper sheet, aluminum sheet, nickel sheet, self-adhesive paper, insulating paper, etc.
Technical Parameters
| Model | HCC-100 | HCC-200 | HCC-300 |
| Width of blade | 0-100mm | 0-180mm | 0-280mm |
| Cutting length | 0-9999.9mm | 0-9999.9mm | 0-9999.9mm |
| Cutting accuracy | 0.1mm | 0.1mm | 0.1mm |
| Cutting speed | 34 meter/min | 34 meter/min | 34 meter/min |
| Material of blade | High speed steel | High speed steel | High speed steel |
| Power | 300w | 500w | 700w |
