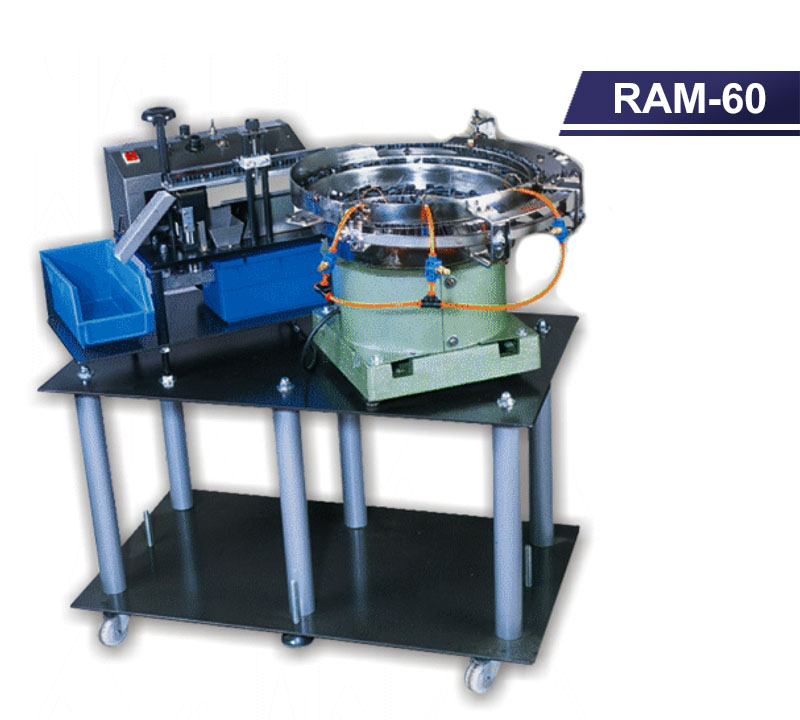

Automatic Loose Radial Lead Cutter
Power : 110V/60Hz;220V/50Hz
Air Source : 4 kgs/cm
Dimension : 1150 (L) x 700(W) x 1050(H)mm
Net Weight : 145 kgs
Capability : 18,000pcs/ Hour
Air Source : 4 kgs/cm
Dimension : 1150 (L) x 700(W) x 1050(H)mm
Net Weight : 145 kgs
Capability : 18,000pcs/ Hour
- Shorten leads in the massive production to save the labor cost.
- If the leads were cut, the bowl feeder cannot run them because they fall down easily. Recommend to use AR-110 to cut shortened leads shorter.
- Lead Cutter can work independently from or together with the bowl feeder and supporting table. Hand Feeding is available when removing the bowl feeder.
- LED component Counter is available, please indicate on the order. The Lead Cutter
- Model No. with counter is CF-360.
Models :
1. Multifunction :
- The body dia. /width is less than 10mm ; the body height is less than 18mm apply to CF-366. (Such as middle/small-size Electrolytic capacitors, TO-92, LED, small film capacitors, etc.)
- Please provide at least 200 pieces of samples for evaluation and test running.
- Power Transistor/MOSFET TO-220 (culbic shape) must use a specialized single function bowl feeder.
- Each shape for one single bowl. Please provide 200 pcs of each part to customize the bowl feeder. Longer Lead Time.
