- PCB Working Range (Wdth of feeding trals): 10 - 280mm.
- Brush is suitabie to clean and brush away lead residuals after cutting.
- Available to connect with wawe soldering machines in mass production.
- PCB Wrap-proof device is equipped.
- The heights of iniet and outlet conweyors are adjustable to meet the various brands of soldering machines.
- Don't recommend the after-cut lead length shorter than 0.8mm because PCB is damaged easily. If the lead wire is cut aiready, the cutter cannot cut it shorter due to strong pressure on short leads.

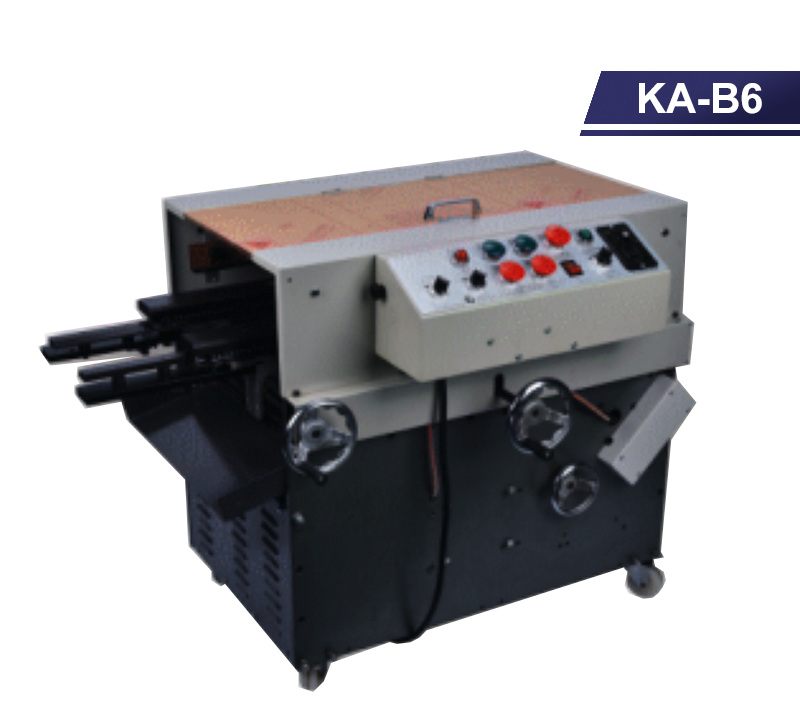

| Model (mm) | KA-B6 |
| Type | Automatic + Brush |
| Thickness Pange | 0.8-2.5 |
| RPM of Spindle | 4500 |
| HP | 3/4 HP |
| Feeding Speed | 0-3 M / minute Adjustable |
| RPM of Brushing | 600 RPM / 1/5HP Brass/Copper Brush |
| MIN Lead Height | >1.0mm Adjustable |
| PC(L)x(W) MAXPCB Working Sizes |
500 x 280 |
| Dimension | 1160 x 730 x 800 |
| Power | 220V AC, 50/60HZ |
| Net Wight | 200 kgs |
