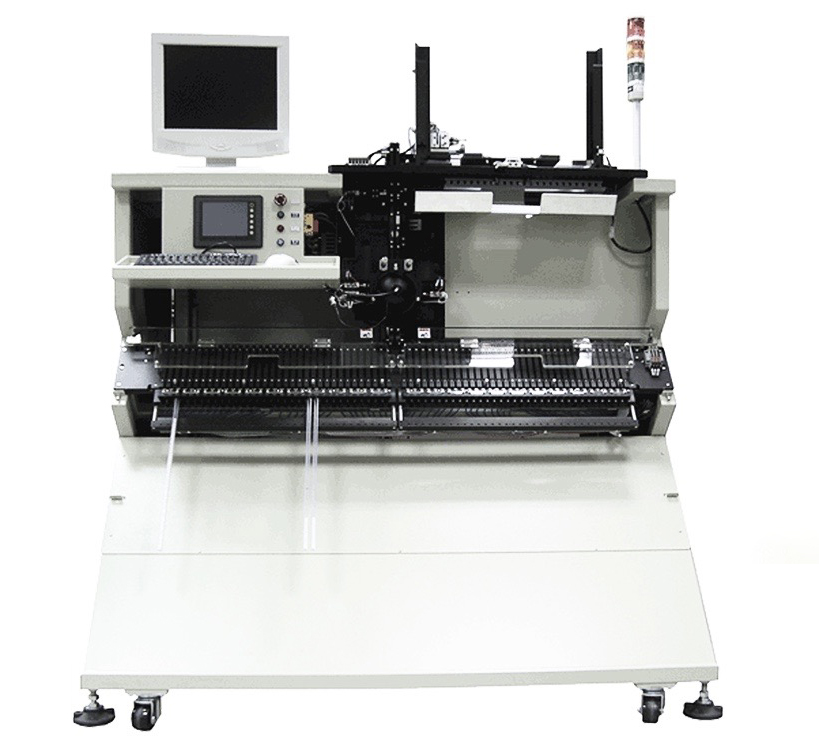

Automatic Piranha LED Sorting Machine
Automatic Piranha LED Sorting Machine S214 S215 S216
Features:
- Tube In / Tube Out: Users only have to put the tubes in loading and unloading station and it will load and sort DUT automatically.
- Precise Measurement: There are optical head & integrating sphere stations for options and it's also available to add in the polarity identification to prevent the bias of measurement
| Specification | Model No.: S214 | Model No.: S215 | Model No.: S216 |
|---|---|---|---|
| Throughput (PPH) | Max. 5K (with measurement time < 120 msec) | Max. 4.5K (with measurement time < 120 msec) | Max. 4K (with measurement time < 120 msec) |
| Bin Number | 32 Bins (Tube Loaders) | 66 Bins (Tube Loaders) | 132 Bins (Tube Loaders) |
| Dimensions (mm) | 1,600(W) x 700(D) x 1,800(H) | 1,200(W) x 1,500(D) x 1,900(H) | 1,850(W) x 1,250(D) x 1,750(H) |
| Air Pressure (kg/cm²) | 5 | 5 | 5 |
| Power Supply (V/Hz) | AC 220 / 50 | AC 220 / 50 | AC 220 / 50 |
