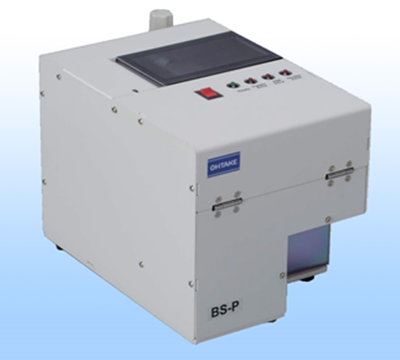

Automatic Pneumatic Screw Feeder Ohtake BS-P Type

Automatic Pneumatic Screw Feeder BS-P Type

Uses air pressure to convey screws to distant locations
Improves work efficiency drastically

Available for small screws and non-magnetic screws
Screw size M1.0 – M3.0, shaft length up to 18 mm.



Applicable screw diameter (mm)	Model number
	BS-P Series
1.0	BS-P10
1.2	BS-P12
1.4	BS-P14
1.7	BS-P17
2.0	BS-P20
2.3	BS-P23
2.6	BS-P26
3.0	BS-P30

• Product name：BS-P
• Dimensions：175(W)x304(D)x186(H)
• Total weight (with rail) ：Approx. 4 kg
• Power supply：AC100V - 240V DC24V 1.9A AC Adapter
• Overload protection：-
• External interface：(D-SUB 9pin)
• Tack time：Approx. 1.2 sec.
• Applicable screw diameter：M1.0 - M3.0
• Applicable screw under-head length：Up to 12 mm
• Capacity：Approx. 80cc
• Accessories：Instruction manual, AC adapter, hex wrench, adjustment screw driver, ground wire, pneumatic feeding tube
