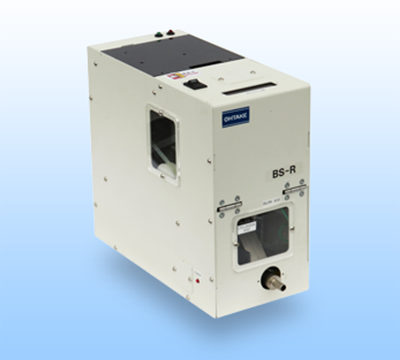

Automatic Pneumatic Screw Feeder Ohtake BS-R Type
- Pneumatic mechanism for efficient screw feeding in robotic applications
- Improves cycle time to as short as 1.5 seconds
- Compact size, with 280cc storage available
Automatic Pneumatic Screw Feeder BS-R Type
Pneumatic mechanism for efficient screw feeding in robotic applications
Improves cycle time to as short as 1.5 seconds
Compact size, with 280cc storage available
Pneumatic mechanism for efficient screw feeding in robotic applications
Improves cycle time to as short as 1.5 seconds
Compact size, with 280cc storage available
| Supported screw diameter (mm) |
Main component type | |||||
| BS Series | BS-R Series | BS-D Series | BS-C Series | |||
| Scooping chamber capacity: approx. 280cc |
Scooping chamber capacity: approx. 1300cc |
- | - | Scooping chamber capacity: approx. 280cc |
Scooping chamber capacity: approx. 1300cc |
|
|---|---|---|---|---|---|---|
| 2.0 | BS-S20 | BS-L20 | BS-R20 | - | BS-CS20 | BS-CL20 |
| 2.3 | BS-S23 | BS-L23 | BS-R23 | - | BS-CS23 | BS-CL23 |
| 2.6 | BS-S26 | BS-L26 | BS-R26 | - | BS-CS26 | BS-CL26 |
| 3.0 | BS-S30 | BS-L30 | BS-R30 | BS-D30 | BS-CS30 | BS-CL30 |
| 3.5 | BS-S35 | BS-L35 | BS-R35 | BS-D35 | BS-CS35 | BS-CL35 |
| 4.0 | BS-S40 | BS-L40 | BS-R40 | BS-D40 | BS-CS40 | BS-CL40 |
| 5.0 | BS-S50 | BS-L50 | BS-R50 | BS-D50 | BS-CS50 | BS-CL50 |
| 6.0 | BS-S60 | BS-L60 | - | BS-D60 | BS-CS60 | BS-CL60 |
- Product name：BS-R
- Dimensions：118(W)×310(D)×237(H)
- Total weight (with rail) ：Approx. 4kgf
- Power supply：AC100V～240V DC15V 1A AC adapter included
- Overload protection：-
- Output signal：（D-SUB 9pin)
- Screw size：M2.0～M5.0
- Screw length：Up to 25mm
- Capacity：Approx. 280cc
- Accessories：Operation Manual, AC Adapter, hex wrench, adjustment driver, grounding cable
