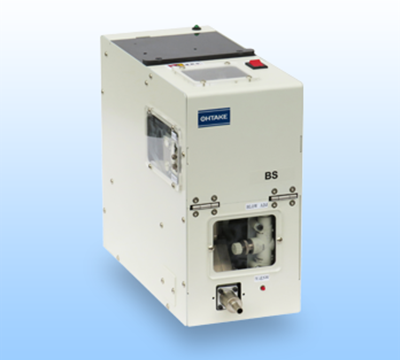

Automatic Pneumatic Screw Feeder Ohtake BS Type
- Pneumatic mechanism for efficient screw feeding in large-area assembly lines
- Large storage available
Automatic Pneumatic Screw Feeder Screw Feeder BS Type
Pneumatic mechanism for efficient screw feeding in large-area assembly lines
Provides improvement of assembly efficiency
Large storage available
Extended size of 1300cc available
Pneumatic mechanism for efficient screw feeding in large-area assembly lines
Provides improvement of assembly efficiency
Large storage available
Extended size of 1300cc available
| Supported screw diameter (mm) |
Main component type | |||||
| BS Series | BS-R Series | BS-D Series | BS-C Series | |||
| Scooping chamber capacity: approx. 280cc |
Scooping chamber capacity: approx. 1300cc |
- | - | Scooping chamber capacity: approx. 280cc |
Scooping chamber capacity: approx. 1300cc |
|
|---|---|---|---|---|---|---|
| 2.0 | BS-S20 | BS-L20 | BS-R20 | - | BS-CS20 | BS-CL20 |
| 2.3 | BS-S23 | BS-L23 | BS-R23 | - | BS-CS23 | BS-CL23 |
| 2.6 | BS-S26 | BS-L26 | BS-R26 | - | BS-CS26 | BS-CL26 |
| 3.0 | BS-S30 | BS-L30 | BS-R30 | BS-D30 | BS-CS30 | BS-CL30 |
| 3.5 | BS-S35 | BS-L35 | BS-R35 | BS-D35 | BS-CS35 | BS-CL35 |
| 4.0 | BS-S40 | BS-L40 | BS-R40 | BS-D40 | BS-CS40 | BS-CL40 |
| 5.0 | BS-S50 | BS-L50 | BS-R50 | BS-D50 | BS-CS50 | BS-CL50 |
| 6.0 | BS-S60 | BS-L60 | - | BS-D60 | BS-CS60 | BS-CL60 |
- Product name：BS-S ｜ BS-L
- Dimensions：118(W)×310(D)×237(H) ｜ 169(W)×436(D)×270(H)
- Total weight (with rail) ：Approx. 4kgf ｜ Approx. 10kgf
- Power supply：AC100V～240V DC15V 1A AC adapter included
- Overload protection：-
- Output signal：（D-SUB 9pin)
- Brush overload prevention：-
- Delivery cycle time：M6X25/3M
- Screw size：M2.0～M6.0
- Screw length：Up to 25mm
- Capacity：Approx. 280cc ｜ Approx. 1300cc
- Accessories：Operation Manual, AC Adapter, hex wrench, adjustment driver, grounding cable
