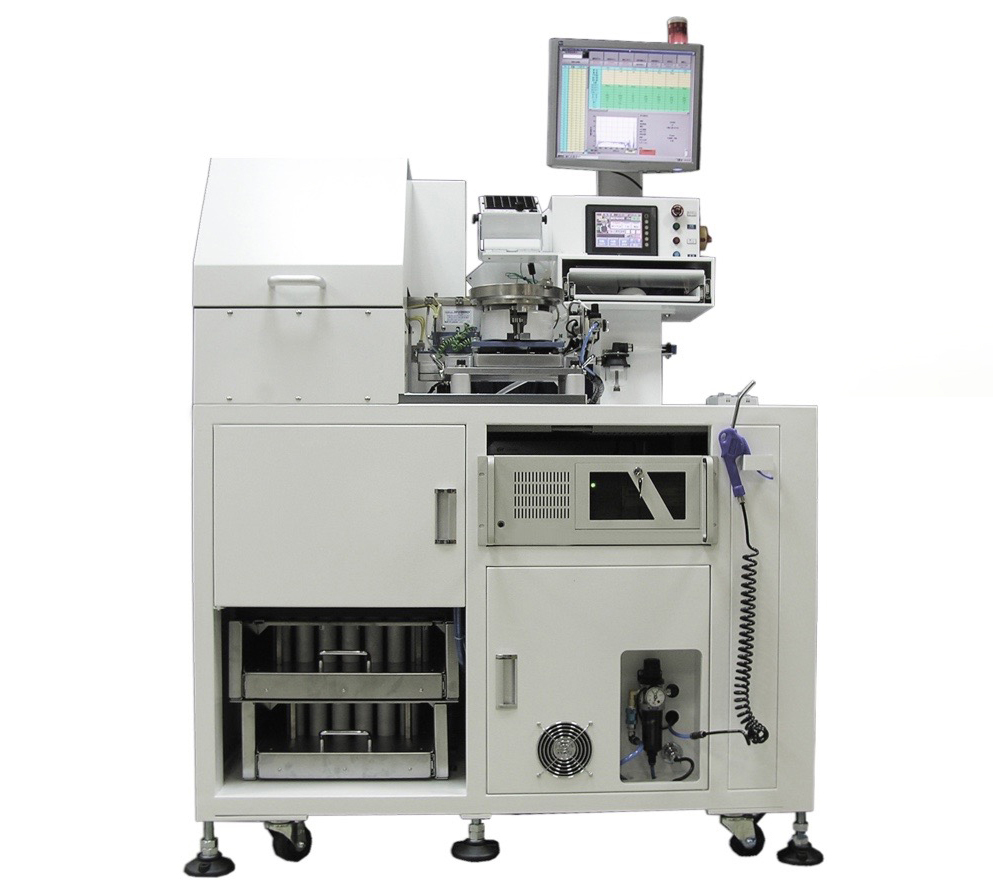

Machine
Features:
- High speed and stable operation, and LED sorting was assured with Plastlist instrument.
- Applicable to various Top View SMD LED Sorting Machine.
| Specification | Model No.: S209 | Model No.: S210 |
|---|---|---|
| Applicable DUTs | Various Top View SMD LED | |
| DUT Supply | Parts Feeder | |
| DUT Direction | (Polarity test & rotation, to ensure the direction) for PLCC type | |
| Test Station | 1 | |
| Throughput | Type 0805, 1206, 0603 : Max. 16K PPH (with measurement time < 100 msec) Type 3020, 3528 : Max. 15K PPH (with measurement time < 100 msec) Type 5050 : Max. 10K PPH (with measurement time < 140 msec) |
|
| Bin Number | 130 Bins | 260 Bins |
| Dimensions (mm) | 1,300(W) x 960(D) x 1,800(H) | 1,300(W) x 960(D) x 2,200(H) |
| Air Pressure (kg/cm²) | 5 | |
| Power Supply (V/Hz) | AC 220 / 50 | |
