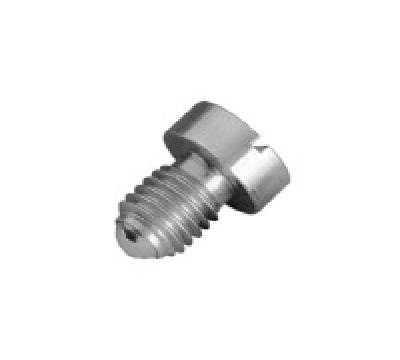

Ball catch, flat head, threaded with screw driver slot
- Hasco Z361/d1xl1
- max. 250°C
- 1.4305
Ball catch, flat head, threaded with screw driver slot
| F2 | F1 | Sn | l3 | l2 | d3 | d2 | d1 | l1 | Product |
|---|---|---|---|---|---|---|---|---|---|
| 27,6 | 18 | 1,2 | 10,8 | 17,5 | 13 | 5 | M8 | 16 |
Z361/8x16
|
| 55 | 35 | 2 | 14,8 | 24,5 | 18 | 8 | M12 | 22 |
Z361/12x22
|
