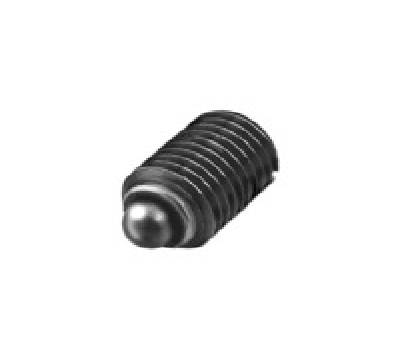

Ball catch, threaded with screw driver slot
- Hasco Z370/d1xl1
- max. 250°C
- 1.0718
Ball catch, threaded with screw driver slot
| F2 | F1 | Sn | l2 | d2 | d1 | l1 | Product |
|---|---|---|---|---|---|---|---|
| 28 | 20 | 1,6 | 18 | 4 | M8 | 16 |
Z370/8x16
|
| 36 | 20 | 2 | 21,5 | 4,5 | M10 | 19 |
Z370/10x19
|
| 48 | 25 | 2,8 | 25,5 | 6 | M12 | 22 |
Z370/12x22
|
| 76 | 50 | 3,6 | 28,5 | 8,5 | M16 | 24 |
Z370/16x24
|
| 112 | 80 | 5,2 | 36,5 | 10 | M20 | 30 |
Z370/20x30
|
