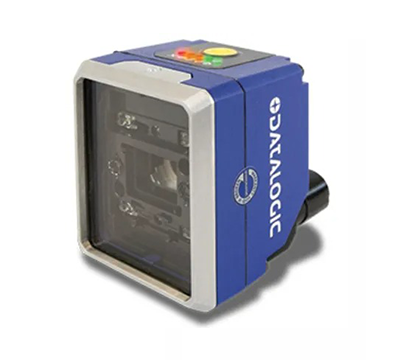

Barcode Reader

HIGHLIGHTS

• Ultra-compact dimensions and rotating connectors for easy integration and installation in tight spaces
• Industrial grade electronic focus on all models for extreme reading flexibility
• New All-In-One DPM illuminator. Red and blue-light polarizing filter and diffused illuminator on one
• model for many applications needs and strong DPM reading performances
• Ultraviolet illumination system perfectly suitable for all the industrial applications characterized by UV-sensitive fluorescent ink
• Top performing High Power Illuminators models for challenging high speed applications
• New multicore image processing platform, excellent for high speed applications and capable of reading up to 2 mils code resolution
• Hardware Acceleration to speed up algorithms and improve decoding capabilities
• Digimarc Barcode reading technology for added value decoding applications
• High Dynamic Range to improve image quality and contrast
• Power over Ethernet option, onboard PROFINET IO and ETHERNET/IP for industrial connectivity
• OPC UA protocol for Industry 4.0
• Extreme industrial grade IP65 and IP67 ratings for harsh environments, -10 to 50 oC/14 to 122 oF operating temperature, new flexible cables suitable for robotic arms applications
• ESD and Anti-YAG protection as front cover accessory for extreme flexibility and optimized stock

Application
Electronics
• Track and trace PCB board
manufacturing

• Electronic components (e.g. chip)
• Electronic products tracking
• DPM barcode reading (on plastic, glass, metal)

Automotive

• DPM code validation after marking
• Work-in-progress control
• Parts and assemblies traceability

Packaging

• Primary packaging barcode reading
• Package traceability
• Food & Beverage

Document Handling

• High speed applications

ACCESSORIES

CATEGORY	PART NUMBER	DESCRIPTION
Cables	93A050058	M12-IP67 Cable To CBX or QL (1M)
	93A050059	M12-IP67 Cable To CBX or QL (3M)
	93A050060	M12-IP67 Cable To CBX or QL (5M)
	93A050116	M12-IP67 17p Flexible Cable To CBX or QL (1M)*
	93A050117	M12-IP67 17p Flexible Cable To CBX or QL (3M)*
	93A050118	M12-IP67 17p Flexible Cable To CBX or QL (5M)*
	93A050122	M12-IP67 GIGA Ethernet Cable X-Coded (3M)
	93A050123	M12-IP67 GIGA Ethernet Cable X-Coded (3M)
	93A050124	M12-IP67 GIGA Ethernet Cable X-Coded (5M)
	93A050125	M12-IP67 GIGA Ethernet Flexible Cable X-Coded (1M)*
	93A050126	M12-IP67 GIGA Ethernet Flexible Cable X-Coded (3M)*
	93A050127	M12-IP67 GIGA Ethernet Flexible Cable X-Coded (5M)*
	93A050128	Adapter Cable GIGA Ethernet X-Coded M12 to RJ45
	93A050129	Adapter Cable GIGA Ethernet X-Coded to Ethernet D-Coded
Front covers	93ACC0227	ESD Safe Window Cover M220
	93ACC0228	YAG Cut Filter Window Cover M220
	93ACC0229	ESD Safe YAG Cut Filter Win Cover M220
Bracket	93ACC0230	BK-22-000 Fixing Bracket M220 Body

* Suitable for robotic arms applications

Models

P/N

DESCRIPTION

OPTICAL MODELS

ILLUMINATORS

CONNECTORS

7 mm

12 mm

STD- WHITE

DPM- RED

DPM- BLUE

STD- WHITE-HP

STD- RED-HP

DPM- RED-HP

STD- UV-HP

M12 17P + ETH

M12 5P + ETH POE

937900000

MATRIX 220 352-010 1.2MP STD-W 7MM

X

X

X

937900001

MATRIX 220 355-010 1.2MP STD-W 12MM

X

X

X

937900002

MATRIX 220 352-040 1.2MP STD-W 7MM POE

X

X

X

937900003

MATRIX 220 355-040 1.2MP STD-W 12MM POE

X

X

X

937900004

MATRIX 220 382-010 1.2MP DPM-R 7MM

X

X

X

937900005

MATRIX 220 385-010 1.2MP DPM-R 12MM

X

X

X

937900006

MATRIX 220 382-040 1.2MP DPM-R 7MM POE

X

X

X

937900007

MATRIX 220 385-040 1.2MP DPM-R 12MM POE

X

X

X

937900008

MATRIX 220 345-010 1.2MP STD-W 12MM HP

X

X

X

937900009

MATRIX 220 305-010 1.2MP DPM-R 12MM HP

X

X

X

937900010

MATRIX 220 302-010 1.2MP DPM-R 7MM HP

X

X

X

937900011

MATRIX 220 392-010 1.2MP DPM-B 7MM

X

X

X

937900012

MATRIX 220 395-010 1.2MP DPM-B 12MM

X

X

X

937900013

MATRIX 220 392-040 1.2MP DPM-B 7MM POE

x

X

X

937900014

MATRIX 220 395-040 1.2MP DPM-B 12MM POE

X

X

X

937900017

MATRIX 220 322-01A 1.2MP STD-R 7MM HP

X

X

X

937900018

MATRIX 220 325-01A 1.2MP STD-R 12MM HP

X

X

X

937900023

MATRIX 220 3U2-01U 1.2MP ST-UV 7MM HP

X

X

X

Dimensions
MATRIX 220 - STRAIGHT CONNECTORS


MATRIX 220 - STRAIGHT CONNECTORS & ESD/YAG COVER


MATRIX 220 - 90° CONNECTORS


MATRIX 220 - 90° CONNECTORS & ESD/YAG COVER
