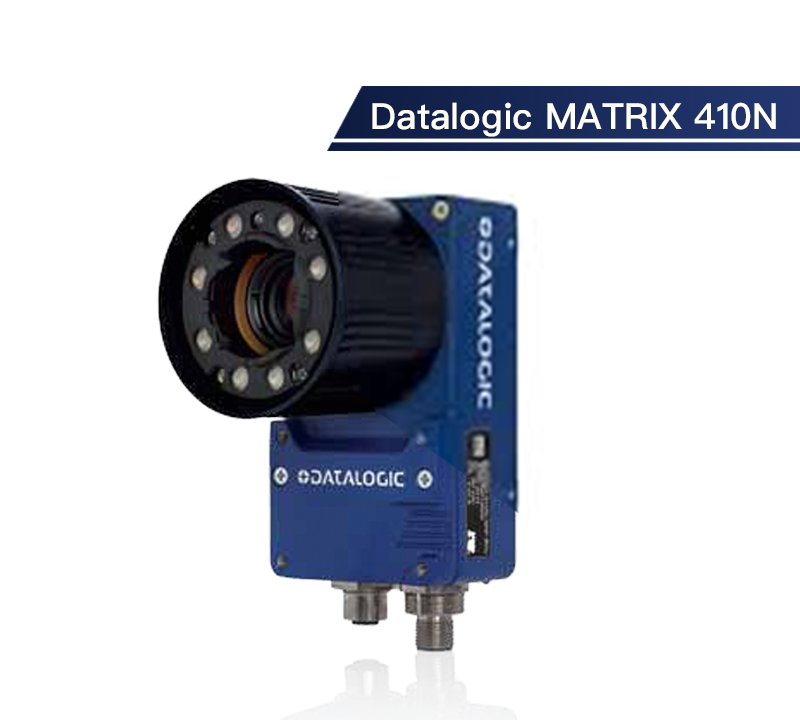

Barcode Reader
- Patented ultra-fast strobed lighting with stable effect for operator
- Patent Pending Packtrack 2D for short object gapping in sortation applications
- Embedded Ethernet connectivity, with common protocol support: PROFINET IO, ETHERNET/IP, TCP/IP, FTP, HTTP
- On board image storage saving up to 3,000 image (scaled)
- External connection box with parameter back up memory and display
- Increased flexibility with single reading point or multiple device cluster with easy configuration
- Laser pointing system, good read Green Spot, focusing aiming system
- Remote, web-based WebSentinel software with image archiving database
Distribution & Retail
- Manual Presentation
- Small Objects Sorting
- Totes content scanning
- End of line, Carton /objects, single ormulti-side scanning
- Part traceability in assembly
- Automated storage/ retrieval
- Automated Order fulfilment/validation
Technical Data
| Physical Characteristics | ||
| Dimensions | 123 x 60,5 x 87 mm (4.84 x 2.38 x 3.42 in) with protective lens cover | |
| Weight | 482 g (17 oz.) with lens and internal illuminator | |
| Case material | Aluminum | |
| Operating temperature | 0° to + 50 °C (32 to 122°F) | |
| Storage temperature | -20 to 70 °C (-4 to 158 °F) | |
| Humidity | 90% non condensing | |
| Protection class | IP67 | |
| Performance | ||
| MATRIX 410N -5xx-xxx | MATRIX 410N -6xx-xxx | |
| Optical features | SXGA (1280 x 1024) | UXGA (1600 x 1200) |
| CMOS sensor | CMOS sensor | |
| Frame rate | 60 frames/s | 45 frames/s |
| Reading angles | Max. Pitch: ± 35°; Tilt: 0-360° | |
| Readable symbologies | 1D and Stacked: IL 2/5, Code 128, Code 39, EAN/UPC, PDF417, Micro PDF417, Pharmacode, GS1 DataBar (RSS) family, and many more | |
| 2D: Data Matrix, QR Code, Micro QR, Maxicode, Aztec | ||
| Postal: Royal Mail, Japan Post, Planet, Postnet and many more | ||
| RS232 + RS232/RS422/RS485 up to 115.2 Kbit/s | ||
| Communication interface | Ethernet IEEE 802.3 10 Base T and IEEE 802.3U 100 BaseTX compliant | |
| ID-NETTM port up to 1 Mbps | ||
| Connectivity modes | Pass Through, Master/Slave, Ethernet point to point | |
| Digital inputs | 2 opto-isolated. Polarity insensitive and SW Programmable. | |
| Digital outputs | 3 SW programmable PNP/NPN ( short circuit protection ). OUT3 programmable as inputOutput current 100 mA max, Saturation voltage < 3 V @ 100 mA | |
| Programming method | X-PRESSTM Human Machine Interface | |
| WindowsTM based SW (DL.CODETM) Ethernet link | ||
| User interface | X-PRESSTM Human Machine Interface | |
| Beeper, Programmable Push Button, LEDs (Status, Com, Trigger, Good, Ready, Power on, Network presence, Good read Spot) | ||
| Code quality verification | AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A | |
| Electrical Characteristics | ||
| Power supply | 10 to 30 VDC | |
| Power consumption | 8 W max; 5W typical | |
Models & Accessories
|
|
P/N |
DEsCRIPTION |
|
Matrix 410N Reader Body |
937401082 |
MATRIX 410N 500-010 1.3MP-60FPS-ETH |
|
937401083 |
MATRIX 410N 700-010 2.0MP-45FPS-ETH |
|
|
Focusing Lenses |
93ACC1793 |
LNS-1006 6MM C-MOUNT LENS |
|
93ACC1794 |
LNS-1109 9MM C-MOUNT LENS |
|
|
93ACC1795 |
LNS-1112 12,5MM C-MOUNT LENS |
|
|
93ACC1796 |
LNS-1116 16MM C-MOUNT LENS |
|
|
93ACC1797 |
LNS-1125 25MM C-MOUNT LENS |
|
|
93ACC1798 |
LNS-1135 35MM C-MOUNT LENS |
|
|
93ACC1799 |
LNS-1150 50MM C-MOUNT LENS |
|
|
Internal Lighting modules |
93A401019 |
LT-001 INTERNAL LT RED NARROW ANGLE |
|
93A401020 |
LT-002 INTERNAL LT RED WIDE ANGLE |
|
|
93A401021 |
LT-003 INTERNAL LT WHITE NARROW ANGLE |
|
|
93A401023 |
LT-005 INTERNAL LT BLUE FOR DPM |
|
|
93A401022 |
LT-004 INTERNAL LT WHITE WIDE ANGLE |
|
|
93A401024 |
LT-006 INTERNAL LT RED SUPERNARROW ANGLE |
|
|
93A401030 |
LT-007 INTERNL LT RED SUPERNAR+LASER P |
|
|
93A401026 |
LT-010 HI POWER LT BLUE SUPERNARROW |
|
|
93A400031 |
LT-011 HI POWER LT RED SUPERNARROW |
