Camera & Optics

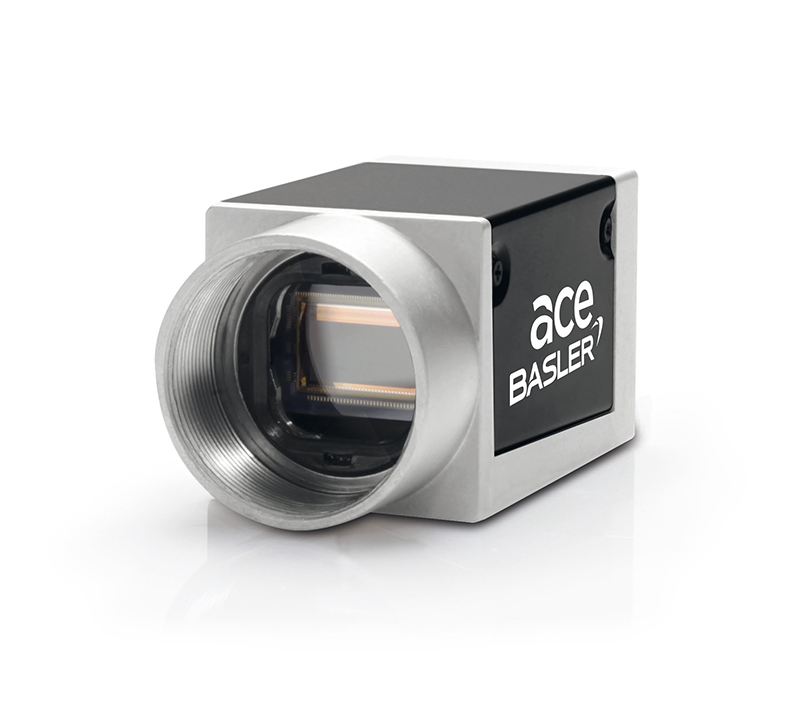

Basler acA1300-30gc
- 1/3" CCD, 30 FPS
- 1294 x 964 Pixels, Color
- Global Shutter
Specifications
| Resolution (H x V pixels) |
1294 x 964 Pixels |
| Max. Image Circle |
1/3" |
| Sensor Type |
CCD Color |
| Shutter |
Global Shutter |
| Pixel Size horizontal/vertical |
3.75 µ x 3.75 µ |
| Frame Rate |
30 FPS |
| Interface |
GigE |
| Pixel Bit Depth |
12 bits |
| Exposure Control |
- Programmable via the camera API
- External Trigger Signal
|
| Synchronization |
- External Trigger
- Ethernet Connection
- Free-Run
|
| Housing Size (L x W x H)mm |
42.0 x 29.0 x 29.0 |
| Housing Temperature |
0 °C - 50 °C |
| Lens Mount |
|
| Digital Input |
1 |
| Digital Output |
1 |
| Power Requirements |
PoE or 12 VDC |
| Power Consumption (typical) |
2.2 W |
| Power Consumption PoE |
2.7 W |
| Weight (typical) |
90 g |
| Sensor |
ICX445 |
| Sensor Size (mm) |
4.86 mm x 3.62 mm |
