Camera & Optics

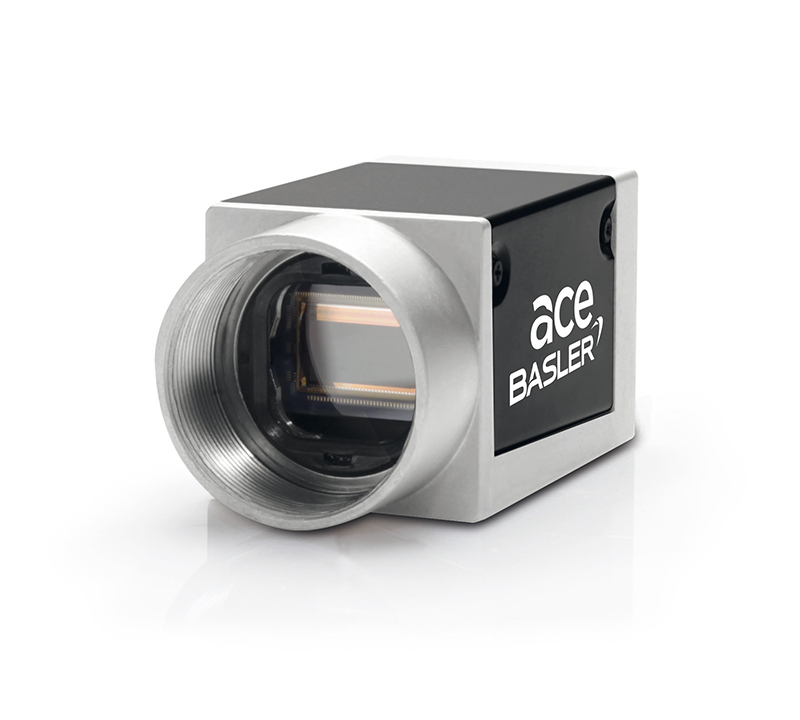

Basler acA3800-10gm
- 1/2.3" CMOS, 10 FPS
- 3856 x 2764 Pixels, Mono
- Rolling Shutter
| Resolution (H x V pixels) |
3856 x 2764 Pixels |
| Max. Image Circle |
1/2.3" |
| Sensor Type |
CMOS Mono |
| Shutter |
Rolling Shutter |
| Pixel Size horizontal/vertical |
1.67 µ x 1.67 µ |
| Frame Rate |
10 FPS |
| Interface |
GigE |
| Pixel Bit Depth |
12 bits |
| Exposure Control |
- Programmable via the camera API
|
| Synchronization |
- External Trigger
- Ethernet Connection
- Free-Run
|
| Housing Size (L x W x H)mm |
42.0 x 29.0 x 29.0 |
| Housing Temperature |
0 °C - 50 °C |
| Lens Mount |
|
| Digital Input |
1 |
| Digital Output |
1 |
| Power Requirements |
PoE or 12 VDC |
| Power Consumption (typical) |
3.3 W |
| Power Consumption PoE |
3.5 W |
| Weight (typical) |
90 g |
| Sensor |
MT9J003 |
| Sensor Size (mm) |
6.44 mm x 4.62 mm |
