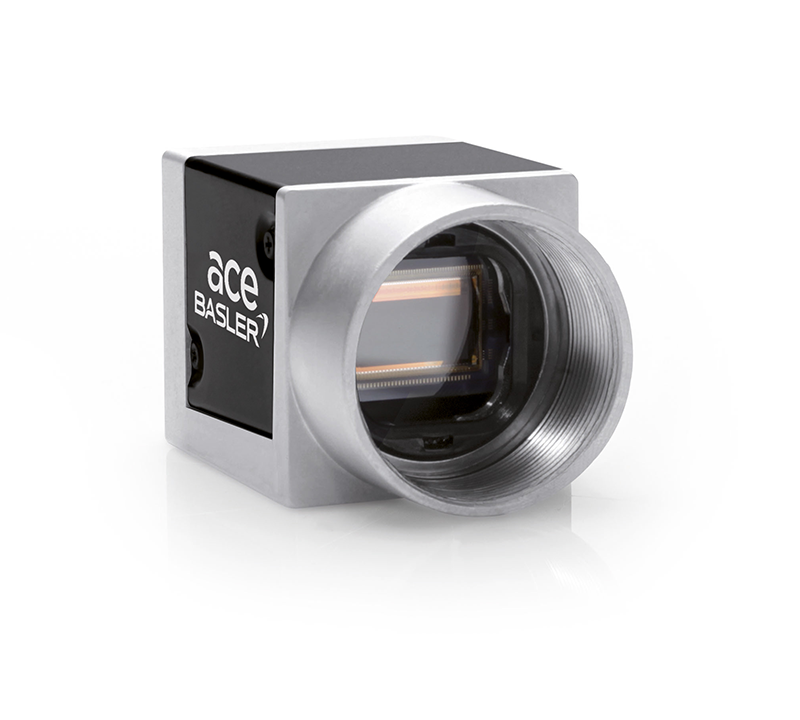

Basler acA3800-14um
- 1/2.3" CMOS, 14 FPS
- 3840 x 2748 Pixels, Mono
- Rolling Shutter
Specifications
| Resolution (H x V pixels) |
3840 x 2748 Pixels |
| Max. Image Circle |
1/2.3" |
| Sensor Type |
CMOS Mono |
| Shutter |
Rolling Shutter |
| Pixel Size horizontal/vertical |
1.67 µ x 1.67 µ |
| Frame Rate |
14 FPS |
| Interface |
USB 3.0 |
| Pixel Bit Depth |
12 bits |
| Exposure Control |
- Programmable via the camera API
- External Trigger Signal
|
| Synchronization |
- External Trigger
- Software
- Free-Run
|
| Housing Size (L x W x H)mm |
29.3 x 29.0 x 29.0 |
| Housing Temperature |
0 °C - 50 °C |
| Lens Mount |
|
| Digital Input |
1 |
| Digital Output |
1 |
| General Purpose I/O |
2 |
| Power Requirements |
Via USB 3.0 interface |
| Power Consumption (typical) |
2.8 W |
| Weight (typical) |
80 g |
| Sensor |
MT9J003 |
| Sensor Size (mm) |
6.44 mm x 4.62 mm |
