Camera & Optics

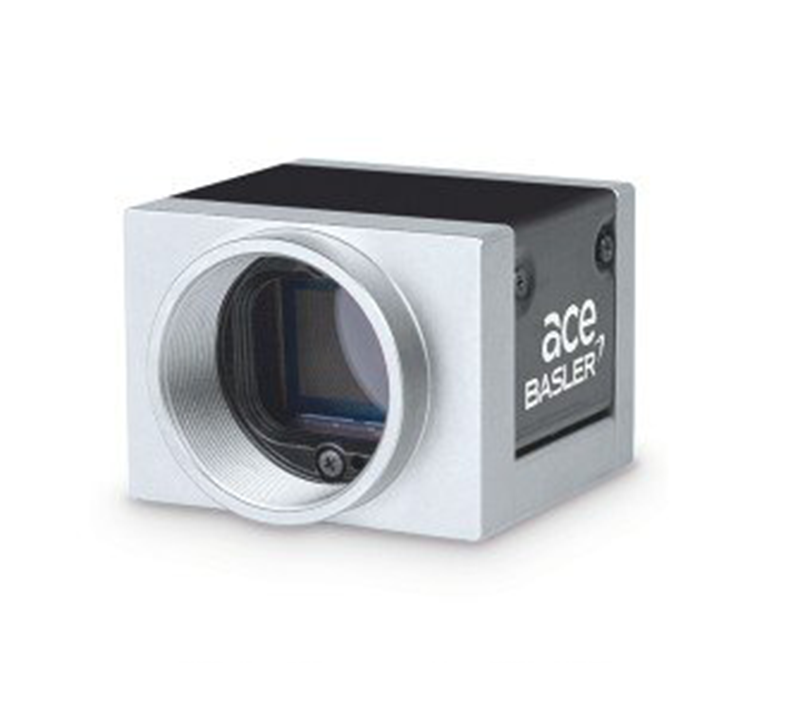

Basler acA4096-30um
- 1" CMOS, 32 FPS
- 4096 x 2168 Pixels, Mono
- Global Shutter
| Resolution (H x V pixels) |
4096 x 2168 Pixels |
| Max. Image Circle |
1" |
| Sensor Type |
CMOS Mono |
| Shutter |
Global Shutter |
| Pixel Size horizontal/vertical |
3.45 µ x 3.45 µ |
| Frame Rate |
32 FPS |
| Interface |
USB 3.0 |
| Pixel Bit Depth |
12 bits |
| Exposure Control |
- Programmable via the camera API
- External Trigger Signal
|
| Synchronization |
- External Trigger
- Software
- Free-Run
|
| Housing Size (L x W x H)mm |
35.8 x 40 x 30 |
| Housing Temperature |
0 °C - 50 °C |
| Lens Mount |
|
| Digital Input |
1 |
| Digital Output |
1 |
| General Purpose I/O |
2 |
| Power Requirements |
Via USB 3.0 interface |
| Power Consumption (typical) |
3 W |
| Weight (typical) |
80 g |
| Sensor |
IMX267 |
| Sensor Size (mm) |
14.1 mm x 7.5 mm |
