Camera & Optics

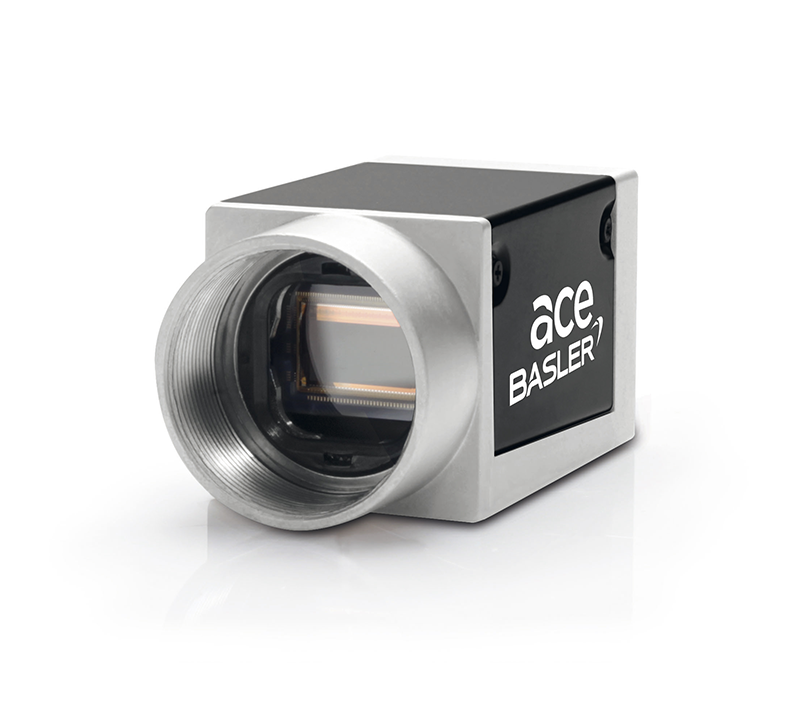

Basler acA640-120gm
- 1/4" CCD, 120 FPS
- 658 x 492 Pixels, Mono
- Global Shutter
| Resolution (H x V pixels) |
658 x 492 Pixels |
| Max. Image Circle |
1/4" |
| Sensor Type |
CCD Mono |
| Shutter |
Global Shutter |
| Pixel Size horizontal/vertical |
5.6 µ x 5.6 µ |
| Frame Rate |
120 FPS |
| Interface |
GigE |
| Pixel Bit Depth |
12 bits |
| Exposure Control |
- Programmable via the camera API
- External Trigger Signal
|
| Synchronization |
- External Trigger
- Ethernet Connection
- Free-Run
|
| Housing Size (L x W x H)mm |
42.0 x 29.0 x 29.0 |
| Housing Temperature |
0 °C - 50 °C |
| Lens Mount |
|
| Digital Input |
1 |
| Digital Output |
1 |
| Power Requirements |
PoE or 12 VDC |
| Power Consumption (typical) |
2.0 W |
| Power Consumption PoE |
2.5 W |
| Weight (typical) |
90 g |
| Sensor |
ICX618 |
| Sensor Size (mm) |
3.69 mm x 2.77 mm |
