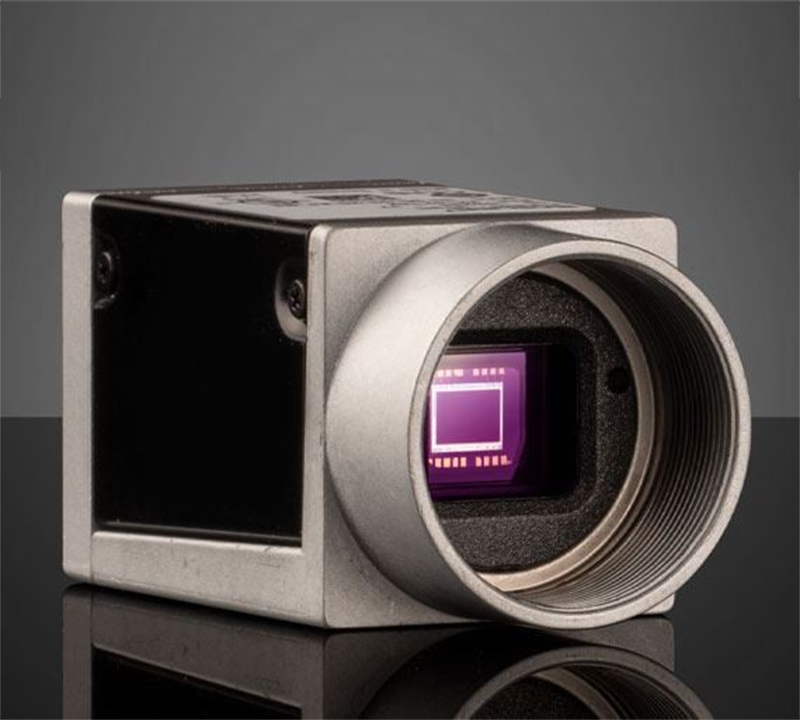

Basler ace acA1920-40gc Color GigE Camera
- Perfect Analog Replacement
- Ultra-Small Form Factor
- Power Over Ethernet (PoE)
- Includes Basler Pylon Driver
| Video Output: | GigE (PoE) |
| Type: | Color Camera |
| Manufacturer: | Basler |
| Mounting Threads: | ¼-20 with Tripod Mount Adapter |
| Camera Family: | ace |
| Model Number: | acA1920-40gc |
| Imaging Sensor: | Sony IMX249 |
| Type of Sensor: | Progressive Scan CMOS |
| Type of Shutter: | Global |
| Camera Sensor Format: | 1/1.2" |
| Resolution (MegaPixels): | 2.30 |
| Pixels (H x V): | 1,920 x 1,200 |
| Pixel Size, H x V (μm): | 5.86 x 5.86 |
| Sensing Area, H x V (mm): | 11.25 x 7.03 |
| Frame Rate (fps): | 42.00 |
| Pixel Depth: | 10/12 bit |
| Exposure Time: | Freely Programmable |
| Connector: | GigE, RJ45 with Screw Locks |
| Power Supply: | Power Supply Required and Sold Separately |
| Power Consumption (W): | 2.8 (12VDC External Power Supply) 3.0 (PoE) |
| GPIOs: | 1 opto-coupled input line, 1 opto-coupled output line, 1 general purpose I/O (GPIO) line |
| Synchronization: | Hardware Trigger (GPIO), Software Trigger, or Free-Run |
| Dimensions (mm): | 42 x 29 x 29 (excludes connectors and lens mount) |
| Weight (g): | 90 |
| Mount: | C-Mount |
| Housing: | Full |
| Interface Port Orientation: | Back Panel |
| Dynamic Range (dB): | Not Specified |
| Operating Temperature (°C): | 0 to +50 |
| Storage Temperature (°C): | -20 to +80 |
| GPIO Connector Type: | 6-pin Hirose (HR10) |
| Machine Vision Standard: | GigE Vision |
| Operating System: | Software Driver: Windows, Linux - 32 and 64 bit |
