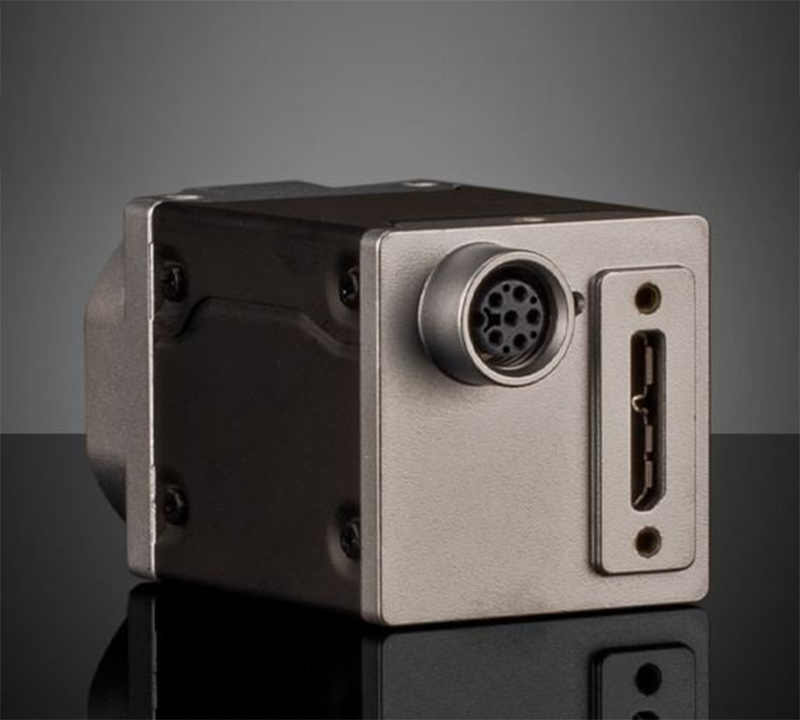

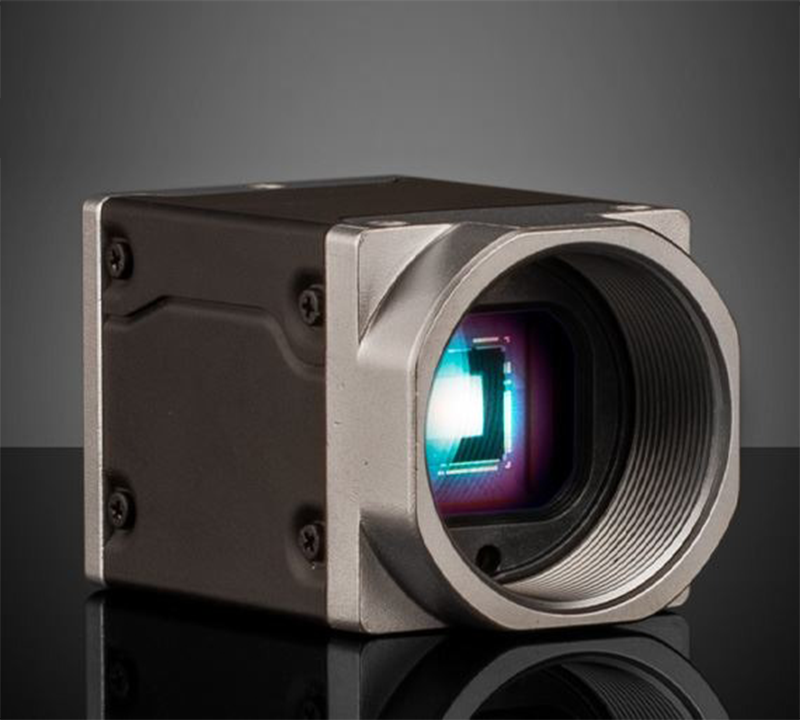

Basler ace2 a2A1920-160umBAS Monochrome USB3 Basic Camera
- USB 3.0 with SONY Pregius S Sensors up to 24MP and 160 fps
- Proven Compact Housing (29 x 29mm)
- Powerful Computer Vision Feature Set with Optional Beyond Features
- Basler ace USB 3.0 Cameras Also Available
| Video Output: |
USB 3.0 |
Type: |
Color Camera |
| Manufacturer: |
Basler |
Mounting Threads: |
¼-20 with Tripod Mount Adapter #16-641 |
| Image Buffer: |
Not Specified |
Camera Family: |
ace2 |
| Model Number: |
a2A1920-160ucBAS |
Imaging Sensor: |
Sony IMX392 |
| Type of Sensor: |
Progressive Scan CMOS |
Type of Shutter: |
Global |
| Camera Sensor Format: |
1/2.3" |
Resolution (MegaPixels): |
2.00 |
| Pixels (H x V): |
1,920 x 1,200 |
Pixel Size, H x V (μm): |
3.45 x 3.45 |
| Sensing Area, H x V (mm): |
6.6 x 4.1 |
Frame Rate (fps): |
160.00 |
| Pixel Depth: |
8/10/12 bit |
Exposure Time: |
Freely Programmable |
| Connector: |
USB 3.0, Micro-B |
Power Supply: |
Power over USB |
| Power Consumption (W): |
3.6 |
GPIOs: |
1 opto-coupled input line, 2 general purpose I/O (GPIO) lines |
| Synchronization: |
Hardware Trigger (GPIO), Software Trigger, or Free-Run |
Dimensions (mm): |
36.3 x 29 x 29 (excludes connectors and lens mount) |
| Weight (g): |
<85 |
Mount: |
C-Mount |
| Housing: |
Full |
Interface Port Orientation: |
Back Panel |
| Dynamic Range (dB): |
Not Specified |
Operating Temperature (°C): |
-10 to +60 |
| Storage Temperature (°C): |
-20 to +80 |
GPIO Connector Type: |
6-pin M8 |
| Machine Vision Standard: |
USB3 Vision v1.0, GenICam |
|
