Camera & Optics

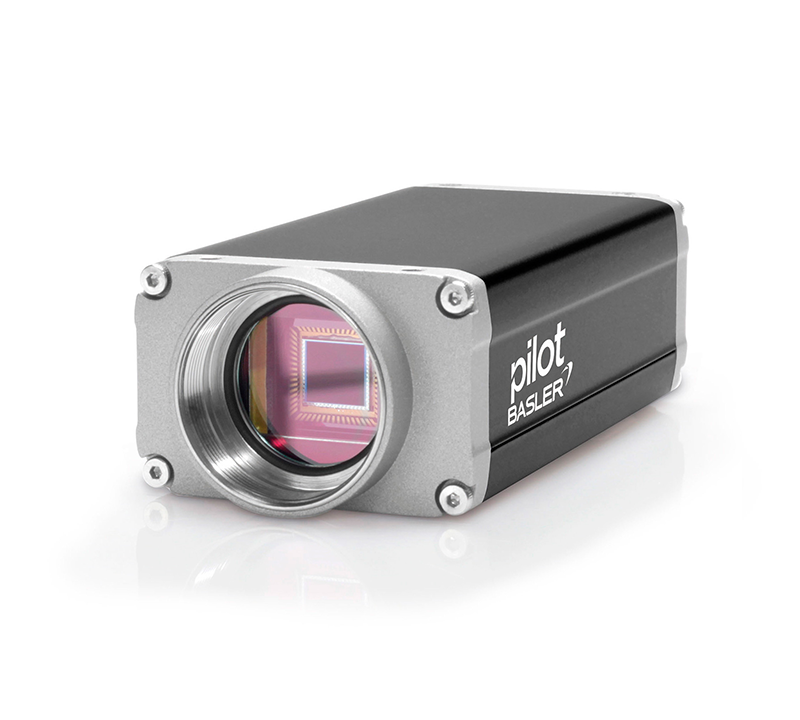

Basler piA2400-17gm
- 2/3" CCD, 17 FPS
- 2456 x 2058 Pixels, Mono
- Global Shutter
Specifications
| Resolution (H x V pixels) |
2456 x 2058 Pixels |
| Max. Image Circle |
2/3" |
| Sensor Type |
CCD Mono |
| Shutter |
Global Shutter |
| Pixel Size horizontal/vertical |
3.45 µ x 3.45 µ |
| Frame Rate |
17 FPS |
| Interface |
GigE |
| Pixel Bit Depth |
12 bits |
| Exposure Control |
- Programmable via the camera API
|
| Synchronization |
- External Trigger
- Software
- Free-Run
|
| Housing Size (L x W x H)mm |
86.7 x 44.0 x 29.0 |
| Housing Temperature |
0 °C - 50 °C |
| Lens Mount |
|
| Digital Input |
2 |
| Digital Output |
4 |
| Power Requirements |
12-24 VDC |
| Power Consumption (typical) |
5.9 W |
| Weight (typical) |
220 g |
| Sensor |
ICX625 |
| Sensor Size (mm) |
8.47 mm x 7.10 mm |
