Beckhoff EK1xxx BK1xx0 EtherCAT Couplers
The EtherCAT Couplers are the link between the EtherCAT protocol at fieldbus level and the EtherCAT Terminals. Since communication in the EtherCAT system is continuous through to the last terminal, the coupler only converts the physical layer without changing the process data stream.
Beckhoff EK1xxx BK1xx0 EtherCAT Couplers
There is a selection of three different technologies:
A distinction is made between a coupler, a junction and an extension. The EtherCAT Coupler is the head station with which the terminal segment starts. The junction can be placed anywhere in the EtherCAT segment and thus allows the setup of a star topology. The extension is plugged into the end of the EtherCAT terminal block and allows a setup with a line topology.
The products are available in different versions, depending on the required physical layer and additional functions.
Physical layer
Additional functions
Your selection
There is a selection of three different technologies:
- EtherCAT: ultra-fast communication standard
- EtherCAT P: combines communication and power in one cable
- EtherCAT G: speeds up to 10 Gbit/s
A distinction is made between a coupler, a junction and an extension. The EtherCAT Coupler is the head station with which the terminal segment starts. The junction can be placed anywhere in the EtherCAT segment and thus allows the setup of a star topology. The extension is plugged into the end of the EtherCAT terminal block and allows a setup with a line topology.
The products are available in different versions, depending on the required physical layer and additional functions.
Physical layer
- copper-based RJ45 connection
- copper-based M8 connection
- optical fiber connection for single or multimode
- POF (polymer optical fiber) connection
Additional functions
- ID switches for variable topologies
- Hot Connect and Fast Hot Connect technology for changing topologies
- integrated digital and safe I/Os for compact and space-saving solutions
- Extended Distance connection for distances up to 300 m
- metal housing and additional diagnostics for high-precision analog measurement technology
Your selection

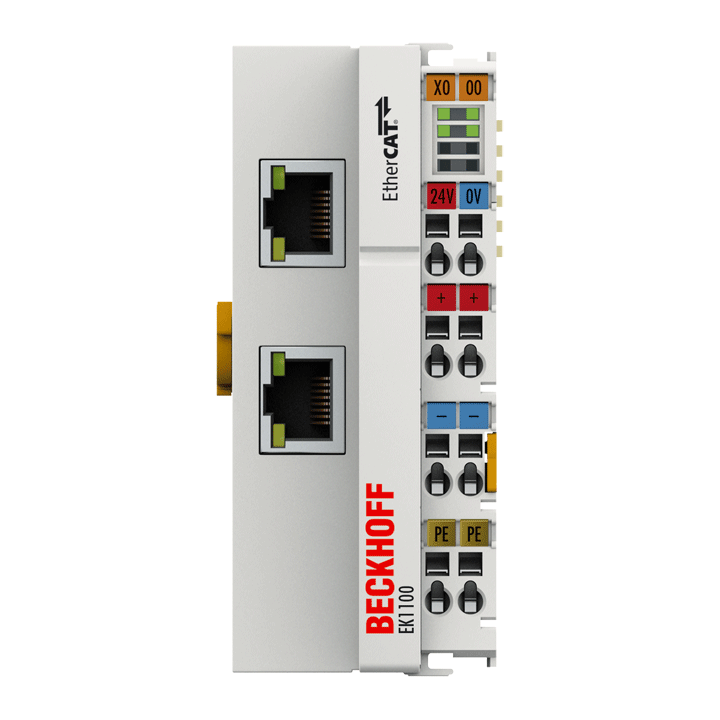

- EtherCAT Coupler EK1100
- EtherCAT Coupler with M8 connection EK1100-0008

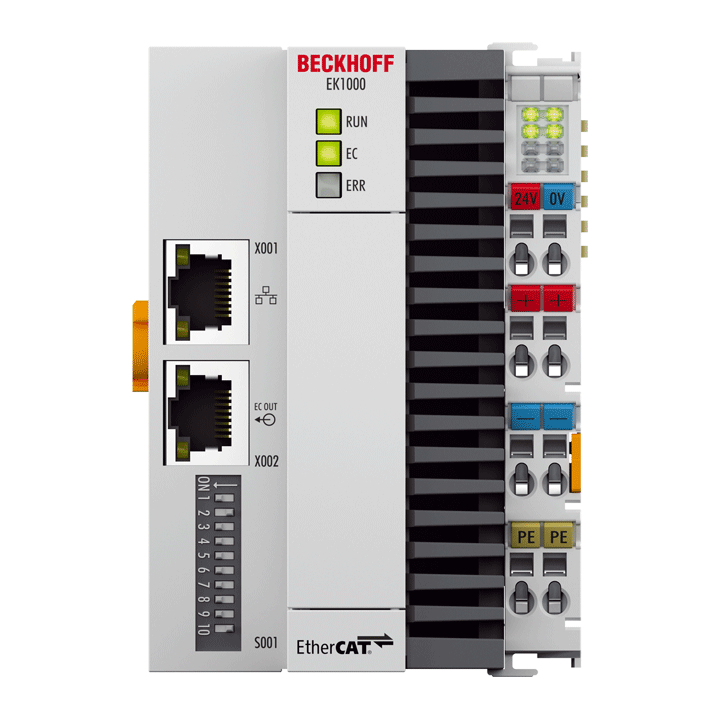

- EtherCAT TSN Coupler EK1000
- EtherCAT Coupler with ID switch EK1101
- EtherCAT Coupler with ID switch and M8 connection EK1101-0008
- EtherCAT Coupler with ID switch, Extended Distance EK1101-0010
- EtherCAT Coupler with ID switch, Fast Hot Connect EK1101-0080
- EKM1101 | EtherCAT Coupler with ID switch and diagnostics

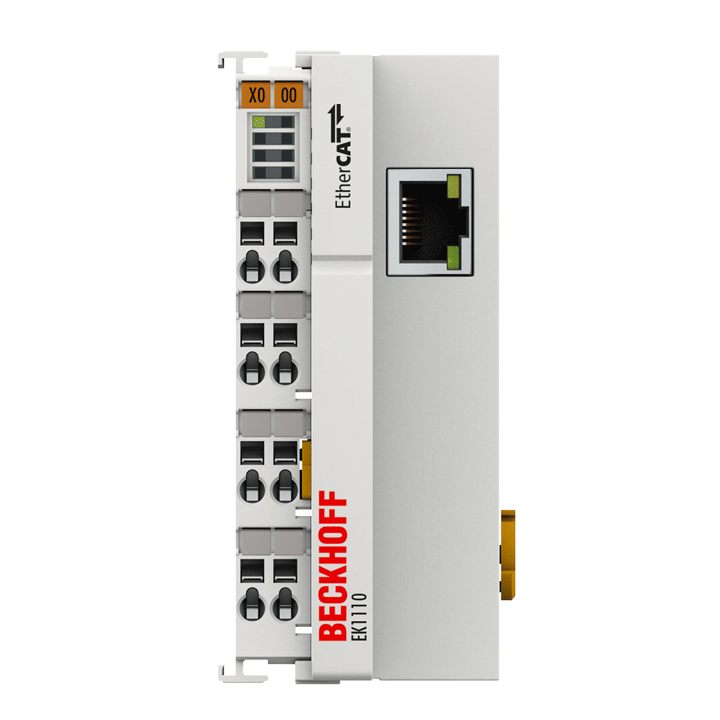

- EtherCAT extension EK1110
- EtherCAT extension with M8 connection EK1110-0008
- EtherCAT EJ coupler, CX and EL terminal connection EK1110-0043
- EtherCAT EJ coupler, CX and EL terminal connection, EtherCAT junction EK1110-0044

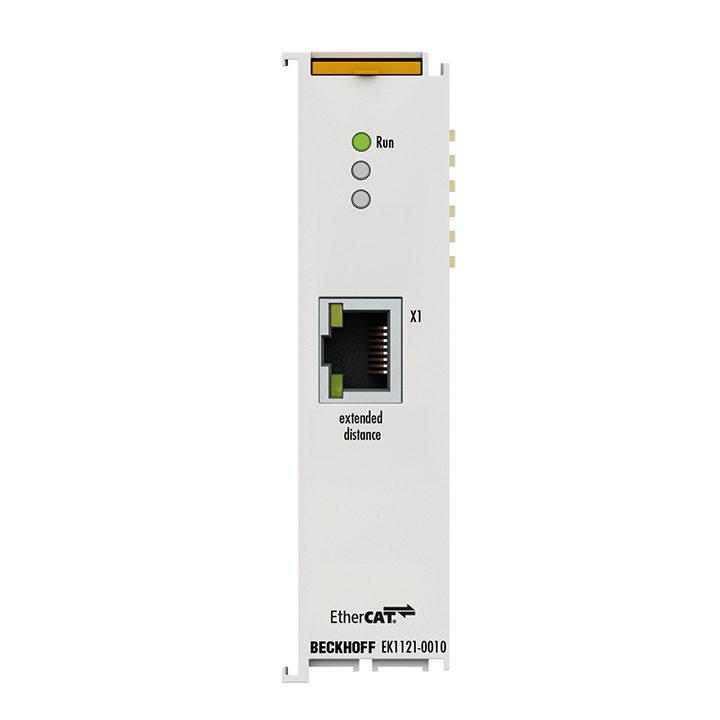

- 1-port EtherCAT junction, Extended Distance EK1121-0010
- 2-port EtherCAT junction EK1122
- 2-port EtherCAT junction with M8 connection EK1122-0008
- 2-port EtherCAT junction, Fast Hot Connect EK1122-0080
- EtherCAT P coupler EK1300
- 1-port EtherCAT P extension with feed-in EK1310
- 2-port EtherCAT P junction with feed-in EK1322
- EtherCAT G Coupler EK1400
- EtherCAT Coupler with ID switch, multimode fibre optic EK1501
- EtherCAT Coupler with ID switch, single mode fibre optic EK1501-0010

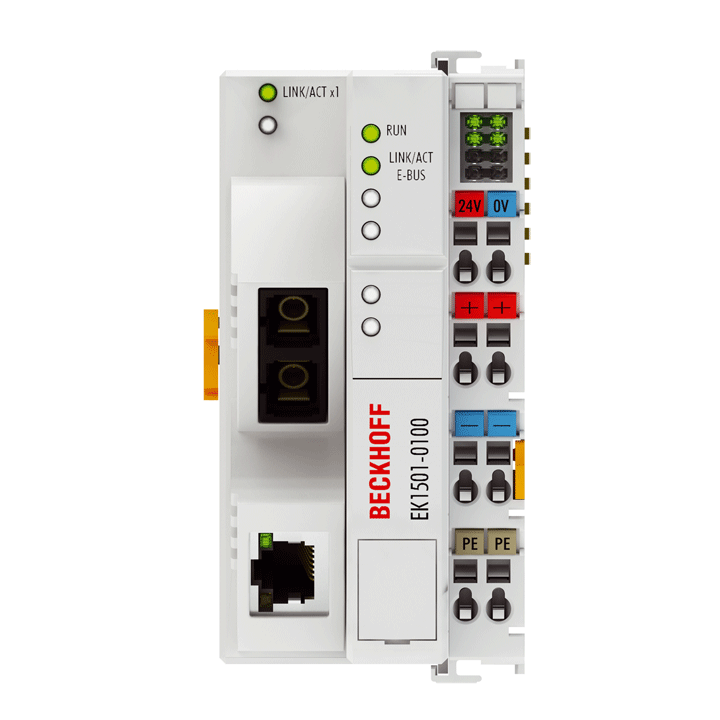

- EtherCAT Coupler, media converter (multimode fibre optic, RJ45 OUT) with ID switch EK1501-0100
- 1-port EtherCAT fibre optic junction EK1521
- 1-port EtherCAT fibre optic junction EK1521-0010
- EtherCAT Coupler with ID switch, plastic optical fibre EK1541
- 1-port EtherCAT plastic optical fibre junction EK1561
- EtherCAT Coupler with integrated digital inputs/outputs EK1814
- EtherCAT Coupler with integrated digital inputs/outputs EK1818
- EtherCAT Coupler with integrated digital inputs/outputs EK1828
- EtherCAT Coupler with integrated digital outputs EK1828-0010
- EtherCAT Coupler with integrated digital standard and safety I/Os EK1914
- TwinSAFE Compact Controller EK1960
- EtherCAT Bus Coupler for standard Bus Terminals BK1120
- EtherCAT “Compact” Bus Coupler BK1150
- “Compact” coupler between EtherCAT Terminals and Bus Terminals BK1250
