Beckhoff EL1xxx EtherCAT Terminals Digital Input
The EtherCAT Terminals from the EL1xxx, ES1xxx and ELX1xxx series are intended for the acquisition of binary signals. Typically, these are mechanical contacts such as break contacts or make contacts, electronic sensors such as inductive proximity switches, optical sensors or other methods in order to generate a low/high signal in the sense of control technology.
Beckhoff EL1xxx EtherCAT Terminals Digital Input
This signal is transmitted via EtherCAT to the higher-level automation device for further processing. The terminal variants differ by different signal thresholds, number of channels, connection options and/or input filter times. The portfolio is rounded off by additional functions such as XFC (timestamp/oversampling), safety or combined input/output terminals.
Your selection
This signal is transmitted via EtherCAT to the higher-level automation device for further processing. The terminal variants differ by different signal thresholds, number of channels, connection options and/or input filter times. The portfolio is rounded off by additional functions such as XFC (timestamp/oversampling), safety or combined input/output terminals.
Your selection

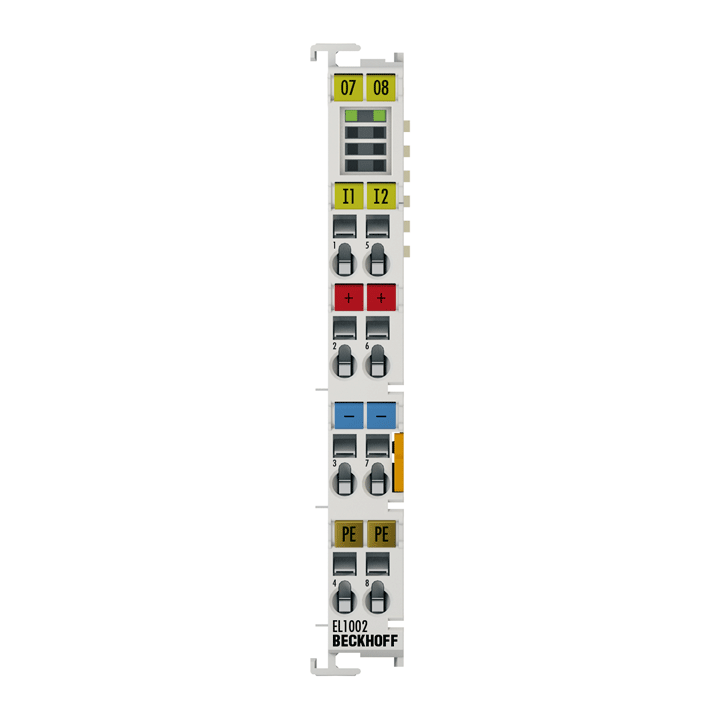

- EtherCAT Terminal, 2-channel digital input, 24 V DC, 3 ms EL1002, ES1002
- EtherCAT Terminal, 4-channel digital input, 24 V DC, 3 ms EL1004, ES1004
- EtherCAT Terminal, 4-channel digital input, 24 V DC, 3 ms, isolation voltage 2500 V DC EL1004-0020
- EtherCAT Terminal, 8-channel digital input, 24 V DC, 3 ms EL1008, ES1008
- EtherCAT Terminal, 2-channel digital input, 24 V DC, 10 µs EL1012, ES1012
- EtherCAT Terminal, 4-channel digital input, 24 V DC, 10 µs EL1014, ES1014
- EtherCAT Terminal, 8-channel digital input, 24 V DC, 10 µs EL1018, ES1018
- EtherCAT Terminal, 4-channel digital input, 24 V DC, 3 ms, type 2 EL1024, ES1024

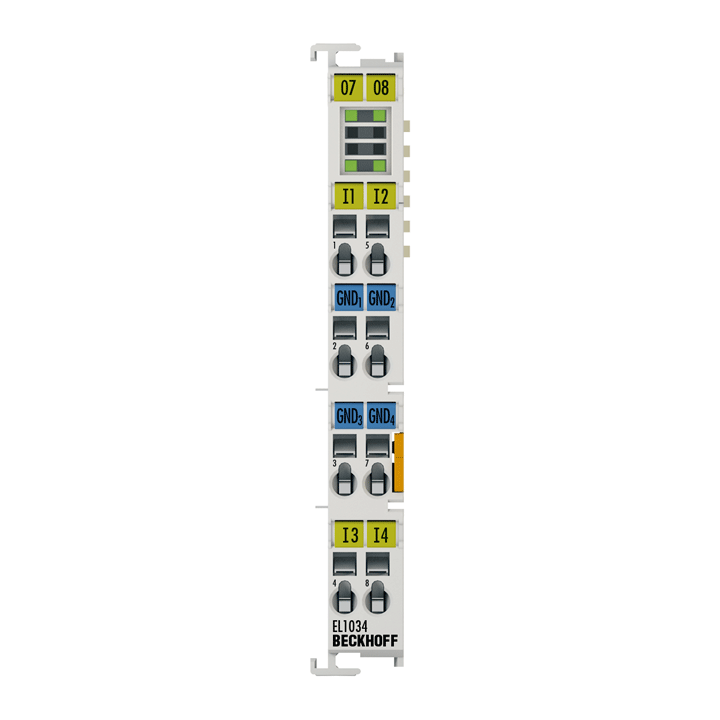

- EtherCAT Terminal, 4-channel digital input, 24 V DC, 10 µs, potential-free EL1034, ES1034
- EtherCAT Terminal, 2-channel digital input, NAMUR EL1052, ES1052
- EtherCAT Terminal, 4-channel digital input, NAMUR EL1054, ES1054
- EtherCAT Terminal, 4-channel digital input, 24 V DC, 3 ms, ground switching EL1084, ES1084
- EtherCAT Terminal, 8-channel digital input, 24 V DC, 3 ms, ground switching EL1088, ES1088
- EtherCAT Terminal, 4-channel digital input, 24 V DC, 10 µs, ground switching EL1094, ES1094
- EtherCAT Terminal, 8-channel digital input, 24 V DC, 10 µs, ground switching EL1098, ES1098
- EtherCAT Terminal, 4-channel digital input, 24 V DC, 3 ms, 2-/3-wire connection EL1104, ES1104
- EtherCAT Terminal, 4-channel digital input, 24 V DC, 10 µs, 2-/3-wire connection EL1114, ES1114
- EtherCAT Terminal, 4-channel digital input, 5 V DC, 0.05 µs EL1124, ES1124
- EtherCAT Terminal, 4-channel digital input, 48 V DC, 10 µs EL1134, ES1134
- EtherCAT Terminal, 4-channel digital input, 12 V DC, 10 µs EL1144, ES1144

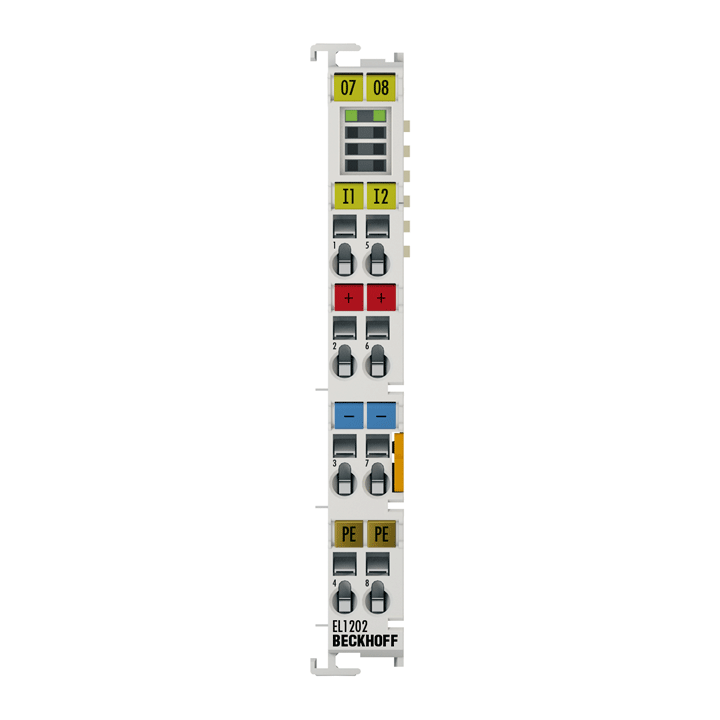

- EtherCAT Terminal, 2-channel digital input, 24 V DC, 1 µs EL1202, ES1202
- EtherCAT Terminal, 2-channel digital input, 24 V DC, 1 µs, timestamp EL1252, ES1252
- EtherCAT Terminal, 2-channel digital input, 5 V DC, 1 µs, timestamp EL1252-0050
- EtherCAT Terminal, 4-channel digital input, 24 V DC, 1 µs, timestamp EL1254
- EtherCAT Terminal, 8-channel digital input, 24 V DC, 1 µs, multi-timestamp EL1258
- EtherCAT Terminal, 8-channel digital input, 24 V DC, 1 µs, ground switching, multi-timestamp EL1258-0010
- EtherCAT Terminal, 8-channel digital input + 8-channel digital output, 24 V DC, 1 µs, 0.5 A, multi-timestamp EL1259
- EtherCAT Terminal, 2-channel digital input, 24 V DC, 1 µs, oversampling EL1262, ES1262
- EtherCAT Terminal, 2-channel digital input, 5 V DC, 1 µs, oversampling EL1262-0050
- EtherCAT Terminal, 2-channel digital input, thermistor, 30 ms EL1382, ES1382
- EtherCAT Terminal, 2-channel digital input, counter, 24 V DC, 100 kHz EL1502, ES1502
- EtherCAT Terminal, 2-channel digital input, counter, 24 V DC, 1 kHz EL1512, ES1512
- EtherCAT Terminal, 2-channel digital input, 120…230 V AC, 10 ms EL1702, ES1702
- EtherCAT Terminal, 2-channel digital input, 220 V DC, 3 ms EL1702-0020, ES1702-0020
- EtherCAT Terminal, 2-channel digital input, 120 V AC/DC, 10 ms EL1712, ES1712
- EtherCAT Terminal, 2-channel digital input, 120 V DC, 3 ms EL1712-0020, ES1712-0020
- EtherCAT Terminal, 2-channel digital input, 120…230 V AC, 10 ms, without power contacts EL1722, ES1722

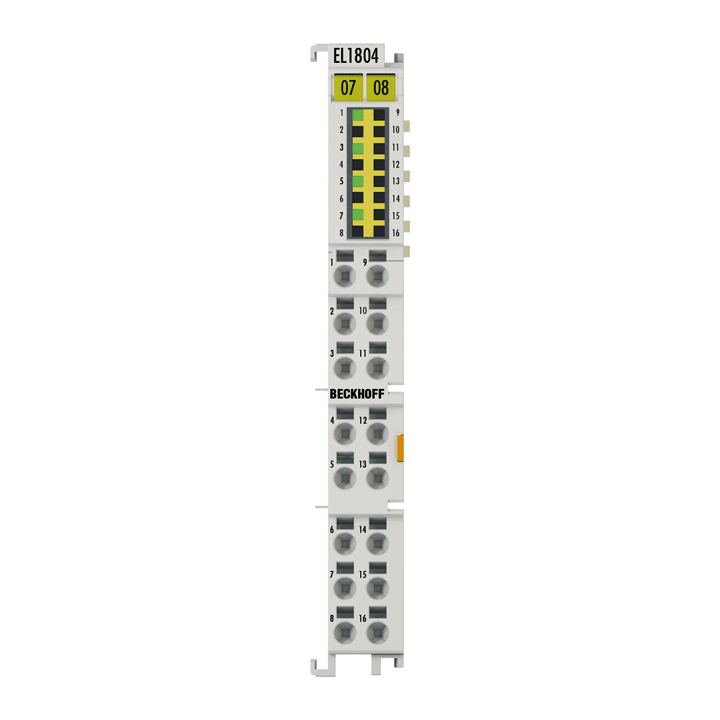

- EtherCAT Terminal, 4-channel digital input, 24 V DC, 3 ms, 3-wire connection EL1804
- EtherCAT Terminal, 8-channel digital input, 24 V DC, 3 ms, 2-wire connection EL1808
- EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms EL1809
- EtherCAT Terminal, 4-channel digital input, 24 V DC, 10 µs, 3-wire connection EL1814
- EtherCAT Terminal, 16-channel digital input, 24 V DC, 10 µs EL1819
- EtherCAT Terminal, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A, flat-ribbon cable EL1852
- EtherCAT Terminal, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A EL1859
- EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms, flat-ribbon cable EL1862
- EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms, ground switching, flat-ribbon cable EL1862-0010
- EtherCAT Terminal, 16-channel digital input, 24 V DC, 10 µs, flat-ribbon cable EL1872
- EtherCAT Terminal, 16-channel digital input, 24 V DC, 10 µs, ground switching, flat-ribbon cable EL1872-0010
- EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms, ground switching EL1889
- EtherCAT Terminal, 16-channel digital input, 24 V DC, 10 µs, ground switching EL1899
- EtherCAT Terminal, 4-channel digital input, 24 V DC, TwinSAFE EL1904
- EtherCAT Terminal, 8-channel digital input, 24 V DC, TwinSAFE, TwinSAFE Logic EL1918
- EtherCAT Terminal, 2-channel digital input, NAMUR, Ex i ELX1052
- EtherCAT Terminal, 4-channel digital input, NAMUR, Ex i ELX1054
- EtherCAT Terminal, 8-channel digital input, NAMUR, Ex i ELX1058
