Beckhoff EL2xxx EtherCAT Terminals Digital Output
The EtherCAT Terminals from the EL2xxx, ES2xxx, ELM2xxx, EM2xx and ELX2xxx series are intended for the processing of digital/binary signals. Unless otherwise stated, the high level corresponds to the supply voltage in the positive switching logic, the low level corresponds to ground. With the ground-switching logic, it is reversed. Different supply voltages are available for both types of logic. 1, 2, 3 and 4-wire connection techniques enable the use of EtherCAT Terminals in almost all applications without further wiring.
Beckhoff EL2xxx EtherCAT Terminals Digital Output
Advantages
The ELX2xxx EtherCAT Terminal series allows the direct connection of an intrinsically safe actuator from potentially explosive atmospheres of zones 0/20 and 1/21.
TwinSAFE, outputs
The EL29xx EtherCAT Terminal series switches actuators or the potential supply fail-safe. The safety-relevant data are exchanged via FSoE with a TwinSAFE Logic-capable component.
Your selection
Advantages
- fine scalability of channel density and functional scope
- compact solutions due to high packing density
- synchronization of the switching process with other processes with µs precision thanks to the XFC timestamp function with some terminals
- numerous special functions for optimizing machine control, e.g. overexcitation, switch-on at the zero crossing point of the AC voltage, oversampling, etc.
- switching of standard actuators such as contactors and valves
- increased machine efficiency/clock rate due to XFC I/Os
- control of LED lighting for vision applications
- simple connection e.g. of external relay cards via ribbon cable connection
The ELX2xxx EtherCAT Terminal series allows the direct connection of an intrinsically safe actuator from potentially explosive atmospheres of zones 0/20 and 1/21.
TwinSAFE, outputs
The EL29xx EtherCAT Terminal series switches actuators or the potential supply fail-safe. The safety-relevant data are exchanged via FSoE with a TwinSAFE Logic-capable component.
Your selection

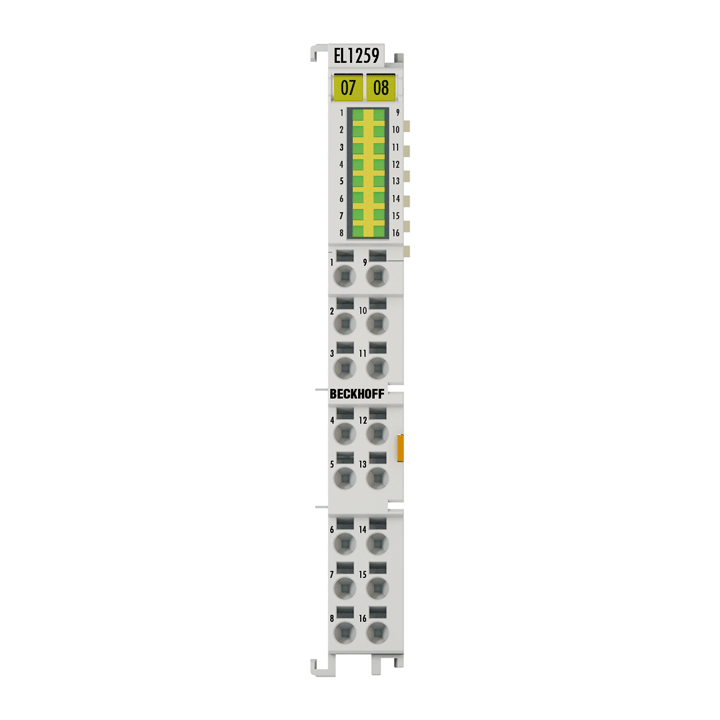

- EtherCAT Terminal, 8-channel digital input + 8-channel digital output, 24 V DC, 1 µs, 0.5 A, multi-timestamp EL1259

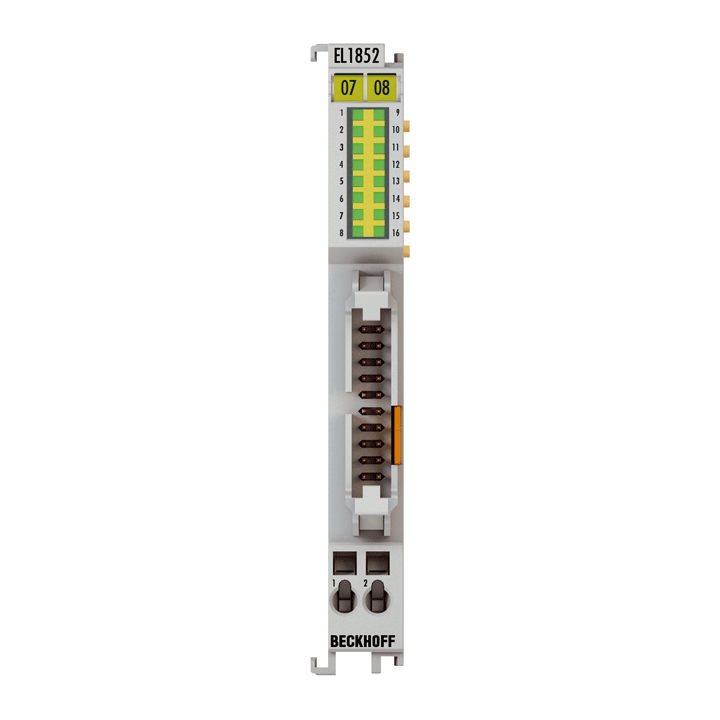

- EtherCAT Terminal, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A, flat-ribbon cable EL1852
- EtherCAT Terminal, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A EL1859
- EtherCAT Terminal, 2-channel digital output, 24 V DC, 0.5 A EL2002, ES2002
- EtherCAT Terminal, 4-channel digital output, 24 V DC, 0.5 A EL2004, ES2004
- EtherCAT Terminal, 8-channel digital output, 24 V DC, 0.5 A EL2008, ES2008
- EtherCAT Terminal, 4-channel digital output, 24 V DC, 0.5 A, with diagnostics EL2014, ES2014
- EtherCAT Terminal, 2-channel digital output, 24 V DC, 2 A EL2022, ES2022
- EtherCAT Terminal, 4-channel digital output, 24 V DC, 2 A EL2024, ES2024
- EtherCAT Terminal, 4-channel digital output, 12 V DC, 2 A EL2024-0010
- EtherCAT Terminal, 2-channel digital output, 24 V DC, 2 A, with diagnostics EL2032, ES2032
- EtherCAT Terminal, 4-channel digital output, 24 V DC, 2 A, with diagnostics EL2034, ES2034
- EtherCAT Terminal, 2-channel digital output, 24 V DC, 2 x 4 A/1 x 8 A EL2042, ES2042
- EtherCAT Terminal, 4-channel digital output, 24 V DC, 2 A, with extended diagnostics EL2044, ES2044
- EtherCAT Terminal, 4-channel digital output, 24 V DC, 0.5 A, ground switching EL2084, ES2084
- EtherCAT Terminal, 8-channel digital output, 24 V DC, 0.5 A, ground switching EL2088, ES2088
- EtherCAT Terminal, 4-channel digital output, 5 V DC, 20 mA EL2124, ES2124
- EtherCAT Terminal, 2-channel digital output, 24 V DC, 0.5 A, push-pull, tristate EL2202, ES2202
- EtherCAT Terminal, 2-channel digital output, 24 V DC, 0.5 A, push-pull, tristate, distributed clocks EL2202-0100
- EtherCAT Terminal, 2-channel digital output, 24…72 V DC, 10 A, overexcitation, multi-timestamp EL2212, ES2212
- EtherCAT Terminal, 2-channel digital output, 24 V DC, 0.5 A, timestamp EL2252, ES2252
- EtherCAT Terminal, 8-channel digital output, 24 V DC, 0.5 A, multi-timestamp EL2258
- EtherCAT Terminal, 2-channel digital output, 24 V DC, 0.5 A, oversampling EL2262, ES2262
- EtherCAT Terminal, 2-channel PWM output, 24 V DC, 0.5 A EL2502, ES2502
- EtherCAT Terminal, 2-channel PWM output, 24 V DC, 0.5 A, timestamp EL2502-0010
- EtherCAT Terminal, 1-channel pulse train output, incr. enc. simulation, RS422, 50 mA EL2521, ES2521
- EtherCAT Terminal, 1-channel pulse train output, incr. enc. simulation, 24 V DC, 1 A EL2521-0024
- EtherCAT Terminal, 1-channel pulse train output, incr. enc. simulation, 24 V DC, 1 A, ground switching EL2521, ES2521

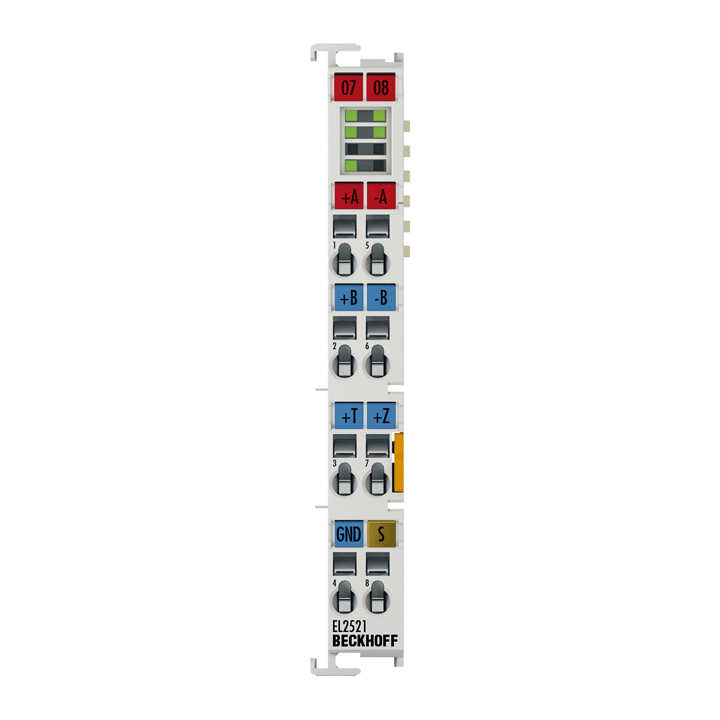

- EtherCAT Terminal, 1-channel pulse train output, incr. enc. simulation, 24 V DC, 1 A, with capture/compare input/output EL2521, ES2521
- EtherCAT Terminal, 2-channel pulse train output, incr. enc. simulation, RS422, 50 mA EL2522
- EtherCAT Terminal, 2-channel PWM output, 24 V DC, 1 A, current-controlled EL2535, ES2535
- EtherCAT Terminal, 2-channel PWM output, 24 V DC, 2 A, current-controlled EL2535-0002
- EtherCAT Terminal, 2-channel PWM output, 24 V DC, 5 A, current-controlled EL2535-0005
- EtherCAT Terminal, 2-channel PWM output, 24 V DC, 50 mA, current-controlled EL2535-0050
- EtherCAT Terminal, 2-channel PWM output, 24 V DC, 0.1 A, current-controlled EL2535-0100
- EtherCAT Terminal, 2-channel PWM output, 12…48 V DC, 3 A, current-controlled EL2535-0103
- EtherCAT Terminal, 4-channel LED output, 5…48 V DC, 4 A, RGBW, common Anode EL2564
- EtherCAT Terminal, 1-channel LED output, 48 V DC, 0.7 A EL2595
- EtherCAT Terminal, 1-channel LED output, 24 V DC, 3 A EL2596
- EtherCAT Terminal, 1-channel LED output, 48 V DC, 3 A EL2596-0010
- EtherCAT Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A EL2602, ES2602
- EtherCAT Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A, contact-protecting switching EL2602-0010, ES2602-0010
- EtherCAT Terminal, 2-channel relay output, 125 V AC, 30 V DC, 0.5 A AC, 2 A DC EL2612, ES2612
- EtherCAT Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A, without power contacts EL2622, ES2622
- EtherCAT Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A, contact-protecting switching, without power contacts EL2622-0010, ES2622-0010
- EtherCAT Terminal, 4-channel relay output, 125 V AC, 30 V DC, 0.5 A AC, 2 A DC EL2624, ES2624
- EtherCAT Terminal, 4-channel relay output, 250 V AC, 30 V DC, 4 A EL2634, ES2634
- EtherCAT Terminal, 2-channel reed output, multiplexer, 48 V AC/DC, 0.5 A, potential-free, 1 x 4 EL2642, ES2642
- EtherCAT Terminal, 2-channel relay output, 230 V AC, 300 V DC, 1 A EL2652, ES2652
- EtherCAT Terminal, 2-channel triac output, 12…230 V AC, 0.5 A EL2712, ES2712
- EtherCAT Terminal, 2-channel triac output, 12…230 V AC, 1 A EL2722, ES2722
- EtherCAT Terminal, 2-channel triac output, 12…230 V AC, 1 A, without power contacts EL2732, ES2732
- EtherCAT Terminal, 4-channel solid state relay output, 30 V AC, 48 V DC, 2 A EL2784, ES2784
- EtherCAT Terminal, 8-channel solid state relay output, 30 V AC, 48 V DC, 2 A EL2788
- EtherCAT Terminal, 4-channel solid state relay output, 30 V AC, 48 V DC, 2 A, potential-free EL2794, ES2794
- EtherCAT Terminal, 8-channel solid state relay output, 30 V AC, 48 V DC, 2 A, potential-free EL2798
- EtherCAT Terminal, 8-channel digital output, 24 V DC, 0.5 A, 2-wire connection EL2808
- EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A EL2809
- EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A, with diagnostics EL2819
- EtherCAT Terminal, 8-channel digital output, 24 V DC, 2 A EL2828
- EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A, flat-ribbon cable EL2872
- EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A, ground switching, flat-ribbon cable EL2872-0010
- EtherCAT Terminal, 8-channel digital output, 24 V DC, 0.5 A, flat-ribbon cable, with diagnostics EL2878-0005
- EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A, ground switching EL2889
- EtherCAT Terminal, 4-channel digital output, 24 V DC, 0.5 A, TwinSAFE EL2904
- EtherCAT Terminal, 4-channel digital input + 1-channel digital output, 24 V DC, 10 A, TwinSAFE, TwinSAFE Logic EL2911
- EtherCAT Terminal, 2-channel digital output, 24 V DC, 2 A, TwinSAFE, TwinSAFE Logic EL2912
- EtherCAT Terminal, 2-channel reed output, multiplexer, 48 V AC/DC, 0.5 A, potential-free, 1 x 4 ELM2642-0000
- EtherCAT Terminal, 4-channel reed output, multiplexer, 48 V AC/DC, 0.5 A, potential-free, 1 x 4 ELM2644-0000
- EtherCAT Terminal, 2-channel solid state relay output, multiplexer, 48 V AC/DC, 1 A, potential-free, 1 x 4 ELM2742-0000
- EtherCAT Terminal, 4-channel solid state relay output, multiplexer, 48 V AC/DC, 1 A, potential-free, 1 x 4 ELM2744-0000
- EtherCAT Terminal, 2-channel digital output, 24 V DC, 45 mA, Ex i ELX2002

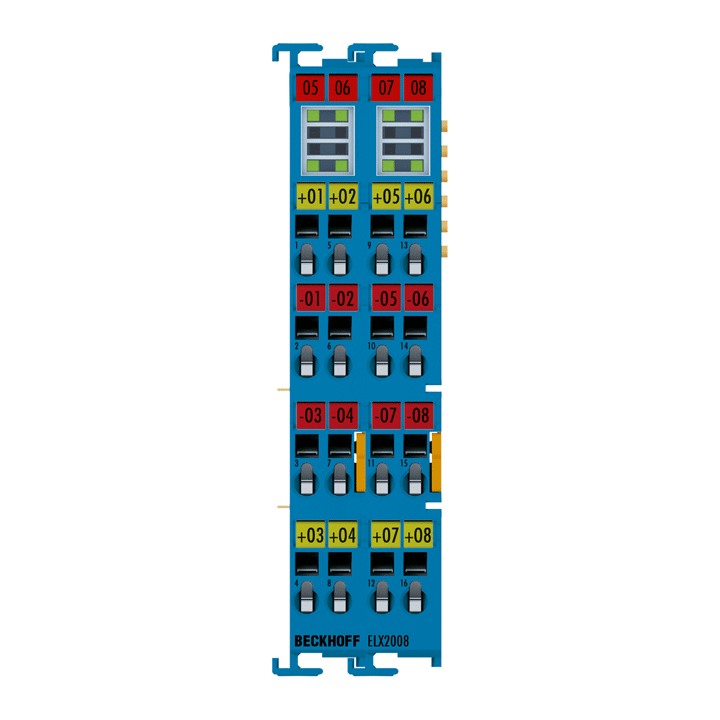

- EtherCAT Terminal, 8-channel digital output, 24 V DC, 30 mA, Ex i ELX2008
- EtherCAT Terminal, 2-channel relay output, potential-free, Ex i ELX2652
- EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A, D-sub EM2042
