    Beckhoff EL3xxx EtherCAT Terminals Analog Input

    The EtherCAT Terminals from the EL3xxx, ES3xxx, ELM3xxx, ELX3xxx and EM3xxx series process the most diverse analog signals. The typical standard signals encountered in the automation industry, such as 0 to 10 V, ±10 V, 0 to 20 mA and 4 to 20 mA, are supported and pre-processed along with other measured variables such as resistance, pressure or temperature. The product portfolio additionally includes analog EtherCAT Terminals for the connection and evaluation of special sensors such as strain gauges, thermocouples, resistance thermometers and accelerometers. Special analog EtherCAT Terminals are also available for measurement tasks in energy and power measurement.
    add to cart Inquiry Now
    EL3xxx | EtherCAT Terminals, analog input
    Beckhoff offers the right product for every application in its product portfolio of analog EtherCAT input terminals. Due to a comprehensive selection of terminals with different numbers of channels, resolutions and measuring accuracies, the right product is available for every application, from simple industrial applications to high-precision measurement technology. There are also different product categories for some application areas. For example, the analog input terminals from the ELX3xxx series are specially designed for potentially explosive atmospheres and the products from the ELM3xxx series with their low measurement uncertainty are especially designed for measurement applications with high requirements.

    Distributed Clocks and XFC for speed and precision
    Some analog EtherCAT Terminals support XFC technology (eXtreme Fast Control), which enables rapid, deterministic reactions in the µs range. This technology enables fast I/O response times, oversampling of the input signal and precise time measurement for events at the input with a resolution of 1 ns. Highly accurate synchronization of all Distributed-Clocks-capable devices in the network is attainable with a synchronization accuracy of <<1 µs with the EtherCAT Distributed Clocks, which are implemented in many EtherCAT analog terminals.

    Calibration to control the measurement chain
    Calibration certificates (factory calibration or calibration to ISO17025/DAkkS) are also available for some EtherCAT analog input terminals. If Beckhoff EtherCAT Terminals are part of a measurement chain and therefore subject to special requirements for the reproducibility and traceability of measurement results, a calibration certificate can be issued to the user for certain terminal types for quality assurance purposes. The certificate is issued for individual terminals, enabling a more precise definition of the entire measurement chain as proof of the exact measurement deviation of the terminal and thus reducing the measurement uncertainty. In the context of the uncertainty assessment of a measurement, the possible influence of the Beckhoff terminal can be reduced in this way.

    Advantages
    • robust measurement of analog signals with long-term availability
    • fine scalability of channel density and functional scope
    • extensive adjustment and diagnostic options in the terminals via the EtherCAT bus
    • Distributed Clocks for the precise acquisition of the timestamp of an input signal and synchronization of the network
    • optionally calibrated terminals for precise acquisition of the measurement uncertainty
    Areas of application
    • production machines
    • test systems
    • Condition Monitoring
    • energy generation systems

    Your selection
    1. EtherCAT Terminal, 1-channel analog input, voltage, ±10 V, 12 bit, single-ended EL3001, ES3001
    2. EtherCAT Terminal, 2-channel analog input, voltage, ±10 V, 12 bit, single-ended EL3002, ES3002
    3. EtherCAT Terminal, 4-channel analog input, voltage, ±10 V, 12 bit, single-ended EL3004, ES3004
    4. EtherCAT Terminal, 8-channel analog input, voltage, ±10 V, 12 bit, single-ended EL3008, ES3008
    5. EtherCAT Terminal, 1-channel analog input, current, 0…20 mA, 12 bit, differential EL3011, ES3011
    6. EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 12 bit, differential EL3012, ES3012
    7. EtherCAT Terminal, 4-channel analog input, current, 0…20 mA, 12 bit, differential EL3014, ES3014
    8. EtherCAT Terminal, 1-channel analog input, current, 4…20 mA, 12 bit, differential EL3021, ES3021
    9. EtherCAT Terminal, 2-channel analog input, current, 4…20 mA, 12 bit, differential EL3022, ES3022
    10. EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 12 bit, differential EL3024, ES3024
    11. EtherCAT Terminal, 1-channel analog input, current, 0…20 mA, 12 bit, single-ended EL3041, ES3041
    12. EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 12 bit, single-ended EL3042, ES3042
    13. EtherCAT Terminal, 4-channel analog input, current, 0…20 mA, 12 bit, single-ended EL3044, ES3044
    14. EtherCAT Terminal, 8-channel analog input, current, 0…20 mA, 12 bit, single-ended EL3048, ES3048
    15. EtherCAT Terminal, 1-channel analog input, current, 4…20 mA, 12 bit, single-ended EL3051, ES3051
    16. EtherCAT Terminal, 2-channel analog input, current, 4…20 mA, 12 bit, single-ended EL3052, ES3052
    17. EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 12 bit, single-ended EL3054, ES3054
    18. EtherCAT Terminal, 8-channel analog input, current, 4…20 mA, 12 bit, single-ended EL3058, ES3058
    19. EtherCAT Terminal, 1-channel analog input, voltage, 0…10 V, 12 bit, single-ended EL3061, ES3061
    20. EtherCAT Terminal, 2-channel analog input, voltage, 0…10 V, 12 bit, single-ended EL3062, ES3062
    21. EtherCAT Terminal, 2-channel analog input, voltage, 0…30 V, 12 bit, single-ended EL3062-0030
    22. EtherCAT Terminal, 4-channel analog input, voltage, 0…10 V, 12 bit, single-ended EL3064, ES3064
    23. EtherCAT Terminal, 8-channel analog input, voltage, 0…10 V, 12 bit, single-ended EL3068, ES3068
    24. EtherCAT Terminal, 2-channel analog input, multi-function, ±10 V, ±20 mA, 12 bit EL3072
    25. EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 12 bit EL3074
    26. EtherCAT Terminal, 1-channel analog input, voltage, ±10 V, 16 bit, differential EL3101, ES3101
    27. EtherCAT Terminal, 2-channel analog input, voltage, ±10 V, 16 bit, differential EL3102, ES3102
    28. EtherCAT Terminal, 4-channel analog input, voltage, ±10 V, 16 bit, differential EL3104, ES3104
    29. EtherCAT Terminal, 1-channel analog input, current, 0…20 mA, 16 bit, differential EL3111, ES3111
    30. EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 16 bit, differential EL3112, ES3112
    31. EtherCAT Terminal, 2-channel analog input, current, ±20 mA, 16 bit, differential EL3112-0011
    32. EtherCAT Terminal, 4-channel analog input, current, 0…20 mA, 16 bit, differential EL3114, ES3114
    33. EtherCAT Terminal, 1-channel analog input, current, 4…20 mA, 16 bit, differential EL3121, ES3121
    34. EtherCAT Terminal, 2-channel analog input, current, 4…20 mA, 16 bit, differential EL3122, ES3122
    35. EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 16 bit, differential EL3124, ES3124
    36. EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 16 bit, differential, TwinSAFE SC EL3124-0090
    37. EtherCAT Terminal, 1-channel analog input, current, 0…20 mA, 16 bit, single-ended EL3141, ES3141
    38. EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 16 bit, single-ended EL3142, ES3142
    39. EtherCAT Terminal, 2-channel analog input, current, ±10 mA, 16 bit, single-ended EL3142-0010
    40. EtherCAT Terminal, 4-channel analog input, current, 0…20 mA, 16 bit, single-ended EL3144, ES3144
    41. EtherCAT Terminal, 1-channel analog input, current, 4…20 mA, 16 bit, single-ended EL3151, ES3151
    42. EtherCAT Terminal, 2-channel analog input, current, 4…20 mA, 16 bit, single-ended EL3152, ES3152
    43. EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 16 bit, single-ended EL3154, ES3154
    44. EtherCAT Terminal, 1-channel analog input, voltage, 0…10 V, 16 bit, single-ended EL3161, ES3161
    45. EtherCAT Terminal, 2-channel analog input, voltage, 0…10 V, 16 bit, single-ended EL3162, ES3162
    46. EtherCAT Terminal, 4-channel analog input, voltage, 0…10 V, 16 bit, single-ended EL3164, ES3164
    47. EtherCAT Terminal, 2-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit EL3172
    48. EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit EL3174
    49. EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, differential EL3174-0002
    50. EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, externally calibrated EL3174-0030
    51. EtherCAT Terminal, 4-channel analog input, multi-function, ±3 V, ±20 mA, 16 bit, differential EL3174-0032
    52. EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, TwinSAFE SC EL3174-0090
    53. EtherCAT Terminal, 2-channel analog input, current, 0/4…20 mA, 16 bit, single-ended, HART EL3182, ES3182
    54. EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 16 bit EL3201, ES3201
    55. EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision EL3201-0010
    56. EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision, factory calibrated EL3201-0020
    57. EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision, externally calibrated EL3201-0030
    58. EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit EL3202, ES3202
    59. EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision EL3202-0010
    60. EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision, factory calibrated EL3202-0020
    61. EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision, externally calibrated EL3202-0030
    62. EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit EL3204, ES3204
    63. EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, RTD (Pt100), 12 bit, single-ended EL3204-0162
    64. EtherCAT Terminal, 4-channel analog input, temperature, RTD/NTC, 16 bit EL3204-0200
    65. EtherCAT Terminal, 8-channel analog input, temperature, RTD (Pt100), 16 bit EL3208
    66. EtherCAT Terminal, 8-channel analog input, temperature, RTD (Pt1000, NTC), 16 bit EL3208-0010
    67. EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit, 3-wire connection EL3214
    68. EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit, 3-wire connection, TwinSAFE SC EL3214-0090
    69. EtherCAT Terminal, 8-channel analog input, temperature, RTD (Pt100), 16 bit, 3-wire connection EL3218
    70. EtherCAT Terminal, 5-channel analog input, potentiometer, 300 Ω…50 kΩ, 16 bit EL3255
    71. EtherCAT Terminal, 1-channel analog input, temperature, thermocouple, 16 bit EL3311
    72. EtherCAT Terminal, 2-channel analog input, temperature, thermocouple, 16 bit EL3312
    73. EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 16 bit EL3314
    74. EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, electrically isolated EL3314-0002
    75. EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, high-precision EL3314-0010
    76. EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, high-precision, factory calibrated EL3314-0020
    77. EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, high-precision, externally calibrated EL3314-0030
    78. EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 16 bit, TwinSAFE SC EL3314-0090
    79. EtherCAT Terminal, 8-channel analog input, temperature, thermocouple, 16 bit EL3318
    80. EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 16 bit EL3351, ES3351
    81. EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 16 bit EL3356, ES3356
    82. EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, high-precision EL3356-0010
    83. EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, high-precision, factory calibrated EL3356-0020
    84. EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, high-precision, externally calibrated EL3356-0030
    85. EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, high-precision, TwinSAFE SC EL3356-0090
    86. EtherCAT Terminal, 3-channel analog input, power measurement, 500 V AC, 1 A, 16 bit EL3403, ES3403
    87. EtherCAT Terminal, 3-channel analog input, power measurement, 500 V AC, 5 A, 16 bit EL3403-0010
    88. EtherCAT Terminal, 3-channel analog input, power measurement, 690 V AC, 1/5 A, 16 bit, electrically isolated EL3413
    89. EtherCAT Terminal, 3-channel analog input, power measurement, 480 V AC/DC, 1 A, 24 bit EL3423
    90. EtherCAT Terminal, 3-channel analog input, power measurement, 500 V AC, 10 A, 16 bit EL3433
    91. EtherCAT Terminal, 3-channel analog input, power measurement, 480 V AC/DC, 1 A, 24 bit EL3443
    92. EtherCAT Terminal, 3-channel analog input, power measurement, 480 V AC/DC, 5 A, 24 bit EL3443-0010
    93. EtherCAT Terminal, 3-channel analog input, power measurement, 480 V AC/DC, 0.1 A, 24 bit EL3443-0011
    94. EtherCAT Terminal, 3-channel analog input, power measurement, 480 V AC/DC, 333 mV, 24 bit EL3443-0013
    95. EtherCAT Terminal, 3-channel analog input, power measurement, 480 V AC/DC, 1 A, 24 bit, factory calibrated EL3443-0020
    96. EtherCAT Terminal, 6-channel analog input, current, 1 A, 24 bit, distributed power measurement EL3446
    97. EtherCAT Terminal, 3-channel analog input, power measurement, 690 V AC, 0.1/1/5 A, 24 bit, electrically isolated EL3453
    98. EtherCAT Terminal, 3-channel analog input, power measurement, 690 V AC, 0.1/1/5 A, 24 bit, electrically isolated, factory calibrated EL3453-0020
    99. EtherCAT Terminal, 3-channel analog input, power measurement, 130 V AC, 0.1/1/5 A, 24 bit, electrically isolated EL3453-0100
    100. EtherCAT Terminal, 3-channel analog input, mains monitor, 480 V AC, 24 bit EL3483
    101. EtherCAT Terminal, 3-channel analog input, mains monitor, 480 V AC, 24 bit, with analog values EL3483-0060
    102. EtherCAT Terminal, 2-channel analog input, voltage, ±10 V, ±5 V, ±2.5 V, ±1.25 V, 24 bit, high-precision EL3602, ES3602
    103. EtherCAT Terminal, 2-channel analog input, voltage, ±200 mV, 24 bit, high-precision  EL3602-0002
    104. EtherCAT Terminal, 2-channel analog input, voltage, ±75 mV, 24 bit, high-precision EL3602-0010
    105. EtherCAT Terminal, 2-channel analog input, voltage, ±10 V, ±5 V, ±2.5 V, ±1.25 V, 24 bit, high-precision, factory calibrated EL3602-0020
    106. EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 24 bit, high-precision EL3612, ES3612
    107. EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 24 bit, high-precision, factory calibrated EL3612-0020
    108. EtherCAT Terminal, 1-channel analog input, current, 4…20 mA, 24 bit, high-precision, factory calibrated EL3621-0020
    109. EtherCAT Terminal, 2-channel analog input, IEPE/accelerometer, 16 bit, 50 ksps EL3632
    110. EtherCAT Terminal, 2-channel analog input, IEPE/accelerometer, 16 bit, 50 ksps, factory calibrated EL3632-0020
    111. EtherCAT Terminal, 1-channel analog input, multimeter, 300 V AC/DC, 10 A, 19 bit EL3681, ES3681
    112. EtherCAT Terminal, 1-channel analog input, multimeter, 300 V AC/DC, 10 A, 19 bit, factory calibrated EL3681-0020
    113. EtherCAT Terminal, 1-channel analog input, multimeter, 300 V AC/DC, 10 A, 19 bit, externally calibrated EL3681-0030
    114. EtherCAT Terminal, 2-channel analog input, resistance, 100 mΩ…10 MΩ, 24 bit EL3692
    115. EtherCAT Terminal, 2-channel analog input, resistance, 100 mΩ…10 MΩ, 24 bit, factory calibrated EL3692-0020
    116. EtherCAT Terminal, 2-channel analog input, resistance, 100 mΩ…10 MΩ, 24 bit, externally calibrated EL3692-0030
    117. EtherCAT Terminal, 2-channel analog input, voltage, ±10 V, 16 bit, oversampling EL3702, ES3702
    118. EtherCAT Terminal, 2-channel analog input, voltage, ±150 mV, 16 bit, oversampling EL3702-0015
    119. EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 16 bit, oversampling EL3742, ES3742
    120. EtherCAT Terminal, 1-channel analog input, multi-function, 24 bit, 10 ksps EL3751
    121. EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 24 bit, 10 ksps EL3751-0004
    122. EtherCAT Terminal, 1-channel analog input, multi-function, 24 bit, 10 ksps, factory calibrated EL3751-0020
    123. EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 24 bit, 10 ksps, factory calibrated EL3751-0024
    124. EtherCAT Terminal, 3-channel analog input, multi-function, 500 V AC/DC, 1 A, 16 bit, 10 ksps, oversampling EL3773
    125. EtherCAT Terminal, 3-channel analog input, multi-function, 690 V AC, 1/5 A, 16 bit, 20 ksps, electrically isolated, oversampling EL3783
    126. EtherCAT Terminal, 3-channel analog input, multi-function, 130 V AC, 1/5 A, 16 bit, 20 ksps, electrically isolated, oversampling EL3783-0100
    127. EtherCAT Terminal, 2-channel analog input, voltage, ±30 V…±20 mV, 24 bit, 20 ksps ELM3002-0000
    128. EtherCAT Terminal, 2-channel analog input, voltage, ±30 V…±20 mV, 24 bit, 20 ksps, externally calibrated ELM3002-0030
    129. EtherCAT Terminal, 4-channel analog input, voltage, ±30 V…±20 mV, 24 bit, 10 ksps ELM3004-0000
    130. EtherCAT Terminal, 4-channel analog input, voltage, ±30 V…±20 mV, 24 bit, 10 ksps, externally calibrated ELM3004-0030
    131. EtherCAT Terminal, 2-channel analog input, current, ±20 mA, 24 bit, 20 ksps ELM3102-0000
    132. EtherCAT Terminal, 4-channel analog input, current, ±20 mA, 24 bit, 10 ksps ELM3104-0000
    133. EtherCAT Terminal, 2-channel analog input, multi-function, ±10…±1.25 V, ±20 mA, 24 bit, 1 ksps ELM3142-0000
    134. EtherCAT Terminal, 4-channel analog input, multi-function, ±10…±1.25 V, ±20 mA, 24 bit, 1 ksps ELM3144-0000
    135. EtherCAT Terminal, 6-channel analog input, multi-function, ±10…±1.25 V, ±20 mA, 24 bit, 1 ksps ELM3146-0000
    136. EtherCAT Terminal, 8-channel analog input, multi-function, ±10…±1.25 V, ±20 mA, 24 bit, 1 ksps ELM3148-0000
    137. EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps ELM3344-0000
    138. EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps, Mini-TC universal ELM3344-0003
    139. EtherCAT Terminal, 8-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps ELM3348-0000
    140. EtherCAT Terminal, 8-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps, Mini-TC universal ELM3348-0003
    141. EtherCAT Terminal, 2-channel analog input, measuring bridge, full/half/quarter bridge, 24 bit, 20 ksps ELM3502-0000
    142. EtherCAT Terminal, 2-channel analog input, measuring bridge, full/half/quarter bridge, 24 bit, 20 ksps, externally calibrated ELM3502-0030
    143. EtherCAT Terminal, 4-channel analog input, measuring bridge, full/half/quarter bridge, 24 bit, 10 ksps ELM3504-0000
    144. EtherCAT Terminal, 4-channel analog input, measuring bridge, full/half/quarter bridge, 24 bit, 10 ksps, externally calibrated ELM3504-0030
    145. EtherCAT Terminal, 2-channel analog input, measuring bridge, full/half/quarter bridge, 24 bit, 1 ksps, TEDS ELM3542-0000
    146. EtherCAT Terminal, 4-channel analog input, measuring bridge, full/half/quarter bridge, 24 bit, 1 ksps ELM3544-0000
    147. EtherCAT Terminal, 2-channel analog input, IEPE/accelerometer, 24 bit, 50 ksps ELM3602-0000
    148. EtherCAT Terminal, 2-channel analog input, IEPE/accelerometer, 24 bit, 50 ksps, BNC ELM3602-0002
    149. EtherCAT Terminal, 4-channel analog input, IEPE/accelerometer, 24 bit, 20 ksps ELM3604-0000
    150. EtherCAT Terminal, 4-channel analog input, IEPE/accelerometer, 24 bit, 20 ksps, BNC ELM3604-0002
    151. EtherCAT Terminal, 2-channel analog input, multi-function, 24 bit, 10 ksps ELM3702-0000
    152. EtherCAT Terminal, 2-channel analog input, multi-function, 24 bit, 10 ksps, electrically isolated, LEMO ELM3702-0101
    153. EtherCAT Terminal, 4-channel analog input, multi-function, 24 bit, 10 ksps ELM3704-0000
    154. EtherCAT Terminal, 4-channel analog input, multi-function, 24 bit, 10 ksps, LEMO ELM3704-0001
    155. EtherCAT Terminal, 4-channel analog input, multi-function, 24 bit, 10 ksps, TC compensation ELM3704-1001
    156. EtherCAT Terminal, 2-channel analog input, current, 0/4…20 mA, 16 bit, single-ended, Ex i ELX3152
    157. EtherCAT Terminal, 2-channel analog input, current, 0/4…20 mA, 16 bit, single-ended, Ex i, TwinSAFE SC ELX3152-0090
    158. EtherCAT Terminal, 8-channel analog input, current, 4…20 mA, 16 bit, single-ended, Ex i ELX3158
    159. EtherCAT Terminal, 1-channel analog input, current, 4…20 mA, 16 bit, single-ended, HART, Ex i ELX3181
    160. EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 16 bit, single-ended, HART, Ex i ELX3184
    161. EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit, Ex i ELX3202
    162. EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit, Ex i, TwinSAFE SC ELX3202-0090
    163. EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit, Ex i ELX3204
    164. EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit, Ex i, TwinSAFE SC ELX3204-0090
    165. EtherCAT Terminal, 2-channel analog input, potentiometer, 300 Ω…40 kΩ, 16 bit, Ex i ELX3252
    166. EtherCAT Terminal, 2-channel analog input, temperature, thermocouple, 16 bit, Ex i ELX3312
    167. EtherCAT Terminal, 2-channel analog input, temperature, thermocouple, 16 bit, Ex i, TwinSAFE SC ELX3312-0090
    168. EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 16 bit, Ex i ELX3314

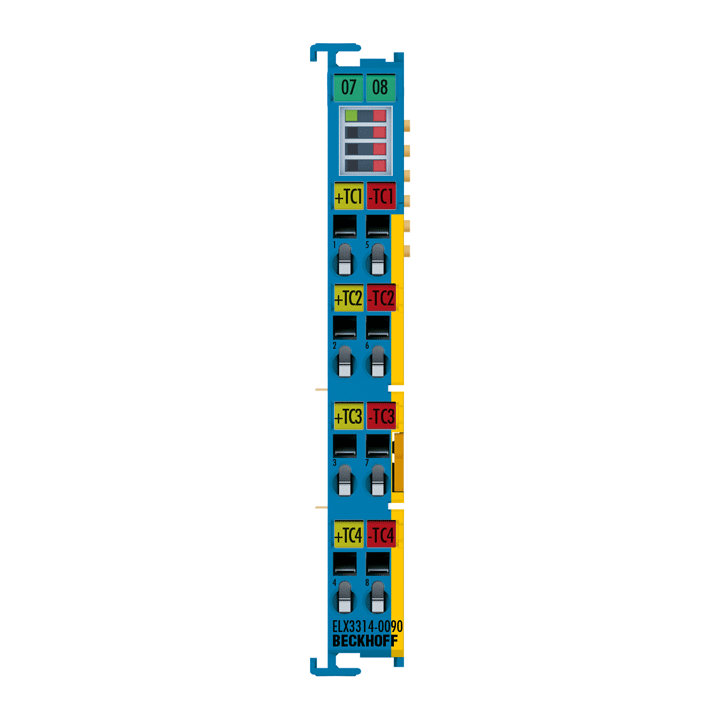

    169. EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 16 bit, Ex i, TwinSAFE SC ELX3314-0090
    170. EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, Ex i ELX3351
    171. EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, Ex i, TwinSAFE SC ELX3351-0090
    172. EtherCAT Terminal, 1-channel analog input, differential pressure, ±100 hPa (±100 mbar) EM3701
    173. EtherCAT Terminal, 2-channel analog input, relative pressure, 0...7500 hPa (0…+7.5 bar) EM3702

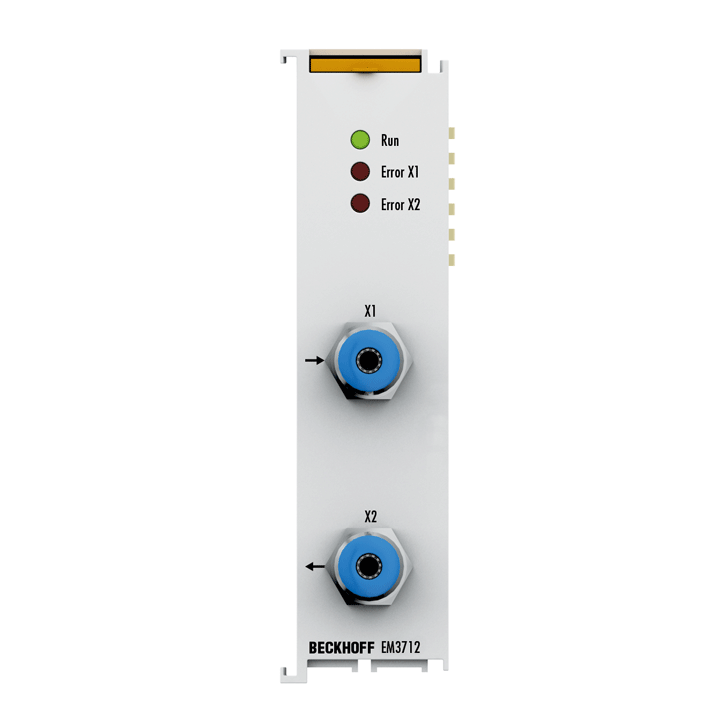

    174. EtherCAT Terminal, 2-channel analog input, relative pressure, ±1000 hPa (-1…+1 bar) EM3712
    Back

    Verification

    Click the numbers in sequence.

    Change
    0
    Leave a message

    Please leave us a message and we will get back to you shortly.


    Verification

    Click the numbers in sequence.

    Change
