Beckhoff EL5xxx EtherCAT Terminals Position Measurement
Fast counting as well as position detection by means of absolute or incremental displacement systems is indispensable in many automation applications. With the EtherCAT Terminals from the EL5xxx series, Beckhoff offers the right solution for precise measurement tasks in the field of position, frequency and displacement/angle measurement.
Beckhoff EL5xxx EtherCAT Terminals Position Measurement
Advantages
Absolute position detection
The EL5xxx enables the evaluation of linear and rotary encoders and measuring probes as well as position measuring systems and absolute encoders with SSI (synchronous serial interface), EnDat-2.2 or BISS-C interface. Many modules are equipped with an integrated sensor supply. Extensive parameterization options allow all standard sensors in both single-turn and multi-turn versions to be connected and evaluated. In addition, it is possible to evaluate inductive displacement measuring sensors – these include measuring probes in LVDT and half-bridge versions or inductive angular position sensors in an RVDT version.
Incremental position detection
Furthermore, incremental signals with SinCos 1 Vss, differential signals with RS422, 5 V single-ended signals of TTL or Open Collector Encoders as well as 24 V HTL encoder signals can also be evaluated. 24 V digital inputs can be used to store, disable and set the counter value. Functions such as micro-increments, timestamp and oversampling also enable finely resolved position detection. EtherCAT's Distributed Clocks function ensures an exact synchronization of the position value with other processes.
Ex i, incremental position detection
The ELX51xx EtherCAT Terminal series allows the direct connection of an intrinsically safe incremental encoder from potentially explosive atmospheres of zones 0/20 and 1/21.
Your selection
Advantages
- fine scalability of channel density and functional scope
- integrated sensor supply
- realization of simple automation solutions, even for complex systems, due to numerous functions
- synchronization of the position value with other processes thanks to the Distributed Clocks function
- position, speed of rotation and velocity measurement
- positioning tasks for Motion Control applications
- piece goods counting
Absolute position detection
The EL5xxx enables the evaluation of linear and rotary encoders and measuring probes as well as position measuring systems and absolute encoders with SSI (synchronous serial interface), EnDat-2.2 or BISS-C interface. Many modules are equipped with an integrated sensor supply. Extensive parameterization options allow all standard sensors in both single-turn and multi-turn versions to be connected and evaluated. In addition, it is possible to evaluate inductive displacement measuring sensors – these include measuring probes in LVDT and half-bridge versions or inductive angular position sensors in an RVDT version.
Incremental position detection
Furthermore, incremental signals with SinCos 1 Vss, differential signals with RS422, 5 V single-ended signals of TTL or Open Collector Encoders as well as 24 V HTL encoder signals can also be evaluated. 24 V digital inputs can be used to store, disable and set the counter value. Functions such as micro-increments, timestamp and oversampling also enable finely resolved position detection. EtherCAT's Distributed Clocks function ensures an exact synchronization of the position value with other processes.
Ex i, incremental position detection
The ELX51xx EtherCAT Terminal series allows the direct connection of an intrinsically safe incremental encoder from potentially explosive atmospheres of zones 0/20 and 1/21.
Your selection

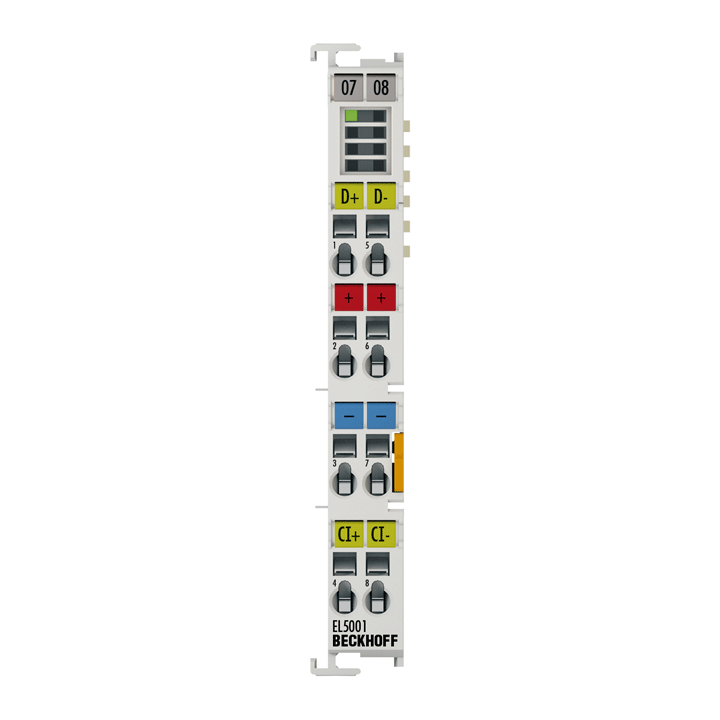

- EtherCAT Terminal, 1-channel encoder interface, SSI EL5001, ES5001
- EtherCAT Terminal, 1-channel encoder interface, SSI, monitor EL5001-0011
- EtherCAT Terminal, 1-channel encoder interface, SSI, TwinSAFE SC EL5001-0090

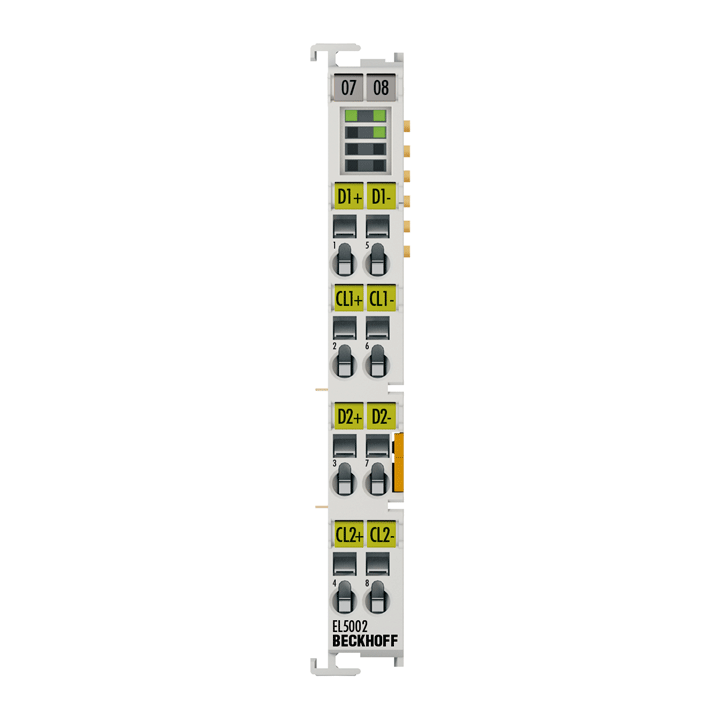

- EtherCAT Terminal, 2-channel encoder interface, SSI EL5002, ES5002
- EtherCAT Terminal, 1-channel encoder interface, SinCos, 1 Vpp EL5021, ES5021
- EtherCAT Terminal, 1-channel encoder interface, SinCos, 1 Vpp, TwinSAFE SC EL5021-0090
- EtherCAT Terminal, 2-channel encoder interface, EnDAT 2.2 EL5032

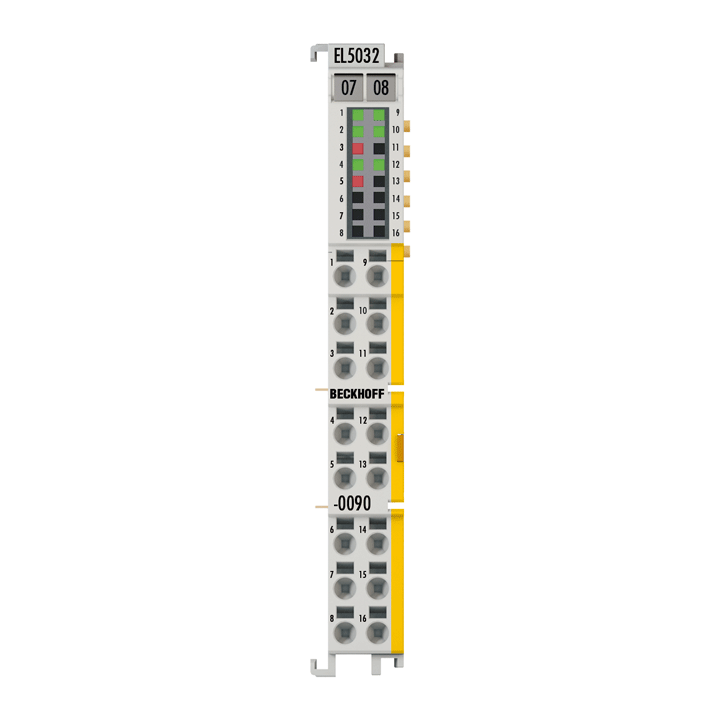

- EtherCAT Terminal, 2-channel encoder interface, EnDAT 2.2, TwinSAFE SC EL5032-0090
- EtherCAT Terminal, 2-channel encoder interface, BiSS C EL5042
- EtherCAT Terminal, 2-channel displacement sensor interface, inductive, LVDT, RVDT, half bridge EL5072
- EtherCAT Terminal, 1-channel encoder interface, incremental, 5 V DC (DIFF RS422, TTL), 1 MHz EL5101, ES5101
- EtherCAT Terminal, 1-channel encoder interface, incremental, 5 V DC (DIFF RS422), 5 MHz EL5101-0010
- EtherCAT Terminal, 1-channel encoder interface, incremental, 5 V DC (DIFF RS422), 5 MHz, oversampling EL5101-0011

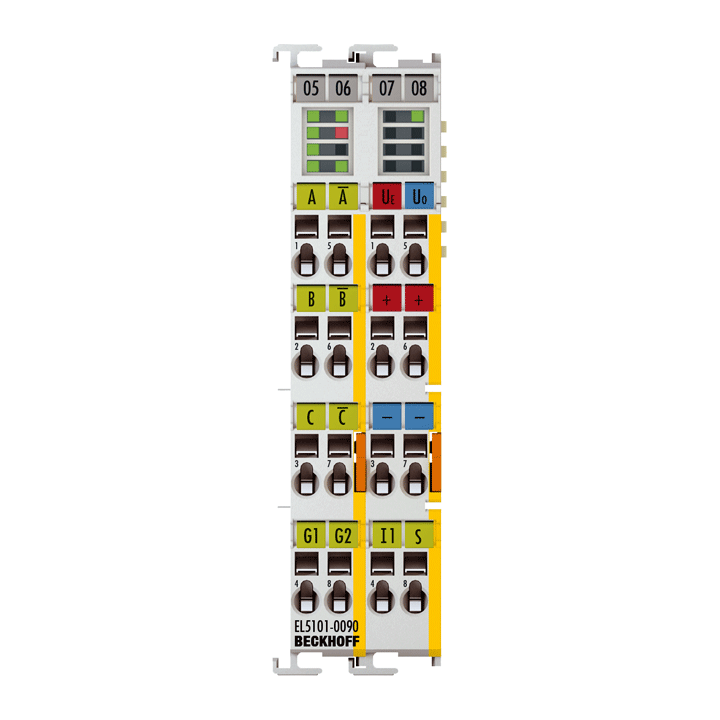

- EtherCAT Terminal, 1-channel encoder interface, incremental, 5 V DC (DIFF RS422, TTL), 1 MHz, TwinSAFE SC EL5101-0090
- EtherCAT Terminal, 2-channel encoder interface, incremental, 5 V DC (DIFF RS422, TTL, open collector), 5 MHz EL5102
- EtherCAT Terminal, 2-channel encoder interface, incremental, 5 V DC (DIFF RS422, TTL, open collector), 5 MHz, 2 x AB/1 x ABC EL5112
- EtherCAT Terminal, 2-channel encoder interface, incremental, 5 V DC (TTL, open collector), 1 MHz EL5122
- EtherCAT Terminal, 1-channel encoder interface, incremental, 5 V DC, 5 MHz, with 2 x digital output 24 V DC EL5131
- EtherCAT Terminal, 1-channel encoder interface, incremental, 24 V DC HTL, 100 kHz EL5151, ES5151
- EtherCAT Terminal, 1-channel encoder interface, incremental, 24 V DC HTL, 100 kHz, with 1 x digital output 24 V DC EL5151-0021
- EtherCAT Terminal, 1-channel encoder interface, incremental, 24 V DC HTL, 100 kHz, TwinSAFE SC EL5151-0090
- EtherCAT Terminal, 2-channel encoder interface, incremental, 24 V DC HTL, 100 kHz EL5152, ES5152
- EtherCAT Terminal, 2-channel encoder interface, incremental, 24 V DC HTL, 100 kHz, 2 x ABC EL5162

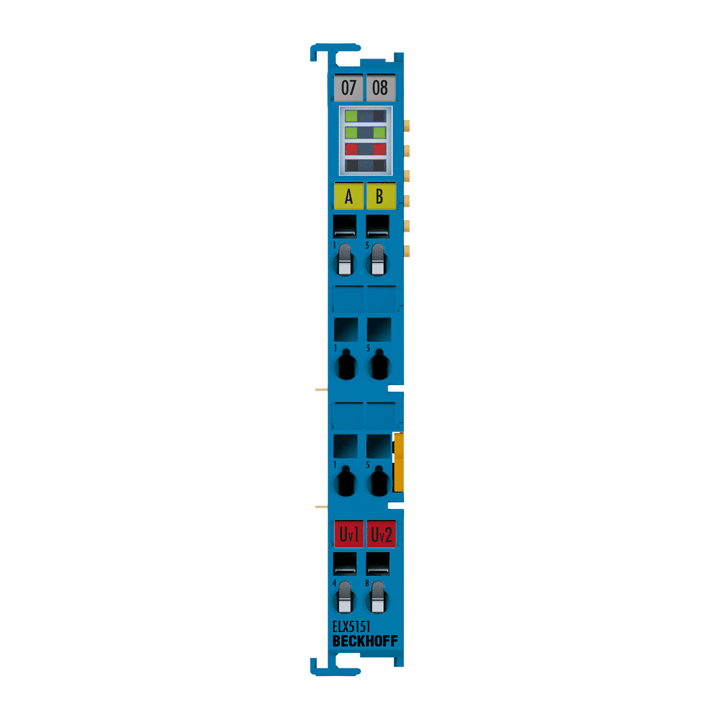

- EtherCAT Terminal, 1-channel encoder interface, incremental, NAMUR, Ex i ELX5151
- EtherCAT Terminal, 1-channel encoder interface, incremental, NAMUR, Ex i, TwinSAFE SC ELX5151-0090
