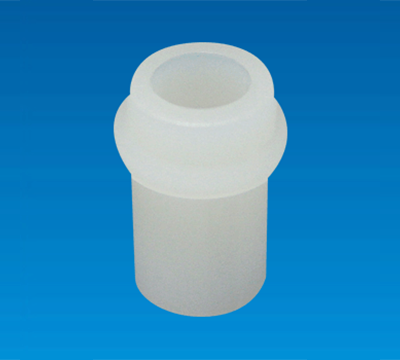

BUSHING SH-12A
The function of Bushing is like spacer support for sutain PCB and iron plate.
BUSHING SH-12A
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.

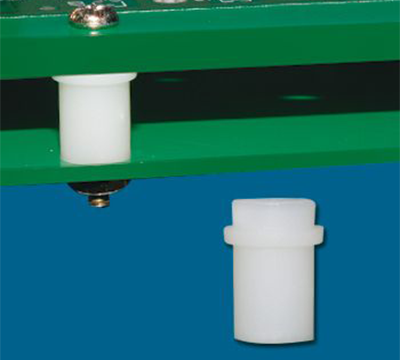

- Provides distance, space and support between Circuit board and chassis.
- Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

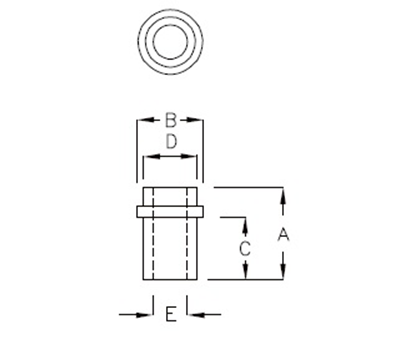

| PART NO | A | B | C | D | E | PACKAGE |
|---|---|---|---|---|---|---|
| SH-12A | 12.7 | 8.7 | Ø7.4 | Ø4.8 | 1000 |
