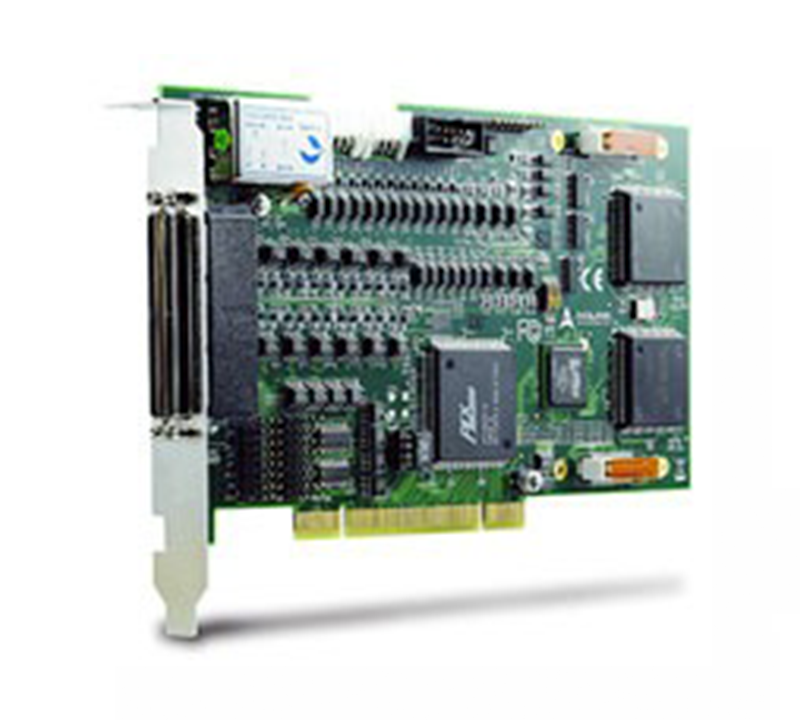

Model No. ADLINK PCI-8158
Advanced 8-axis Servo & Stepper Motion Controller with Modular Design
Features
Introduction
The PCI-8158 delivers high-frequency pulse rates of up to 6.55 MHz and features hardware-controlled emergency input stop, software security protection to avoid plagiarism, card index switch, and linear/circular run at the same time for that exceed the industry"s cost over performance requirements. Compatible with Mitsubishi, Panasonic and Yaskawa servos and steppers, the PCI-8158 allows complex moving patterns through multiple axes that move with linear and circular interpolations using continuous contouring. Applicable for various linear-wise and circular-wise trajectories, the PCI-8158 delivers the smoothest motion control for a wide-range of manufacturing applications. Besides, PCI-8158 design is modularized. ADLINK provides extension board for distributed I/O control, high-speed triggering and ECAM control.
Note: Since ADLINK will not release any future MotionCreator updates, only Windows XP and no later OS is supported
- 3 axes helical interpolation
- Pulse output options: OUT/DIR, CW/CCW
- Pulse output rate up to 6.55 Mpps
- 2 to 4 axes linear interpolation
- 2 axes circular interpolation
- Support manual pulse generator (MPG) and hardware emergency input
- Position/Speed change on-the-fly
