Test & Measurement
Centralized Motion Controllers

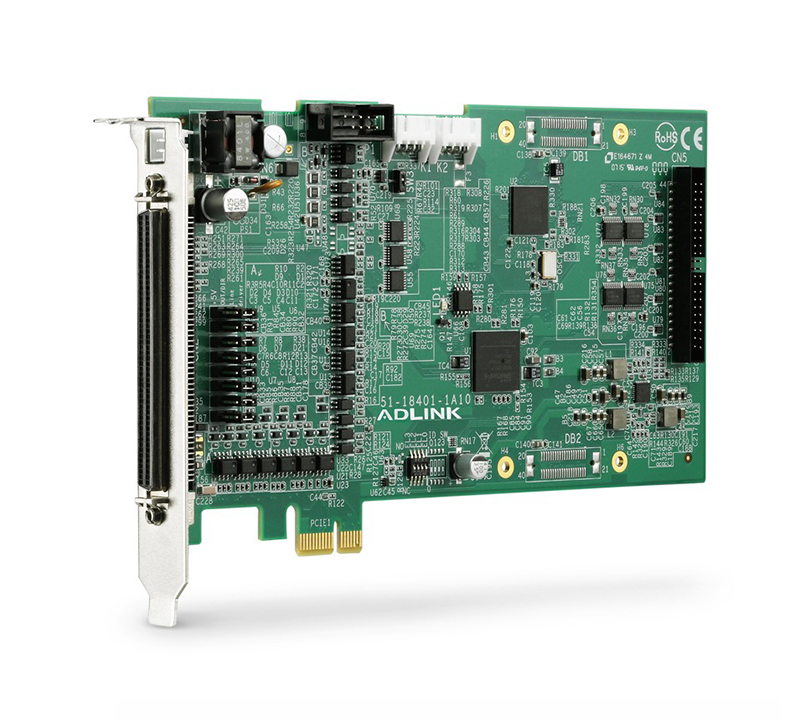

Model No. ADLINK PCIe-8154
Advanced 4-axis Servo & Stepper Motion Controller with Modular Design
Features
x1 lane PCI Express interface
16CH TTL digital inputs and 16CH TTL digital outputs
Pulse output rate: up to 6.55 MHz
Pulse output options: OUT/DIR, CW/CCW, AB Phase
2- to 4-axis linear interpolation
2-axis circular interpolation
Helical interpolation
Multi-axis continuous interpolation
Introduction
The PCIe-8154 delivers high-frequency pulse rates up to 6.55 MHz and hardware-controlled emergency stop, software security protection, card index switching, and simultaneous linear/ circular run, exceeding industrial cost/performance requirements. Compatible with Mitsubishi, Panasonic and Yaskawa servos and any pulse-train controlled servo and stepper drives, the PCIe-8154 allows complex moving patterns through multiple axes that move with linear and circular interpolations using continuous contouring. Applicable for a variety of linear and circular trajectories, the PCIe-8154 delivers the smoothest motion control for a wide range of manufacturing applications. Modularized configuration accommodates ADLINK extension boards for distributed I/O control and high-speed triggering functions.
