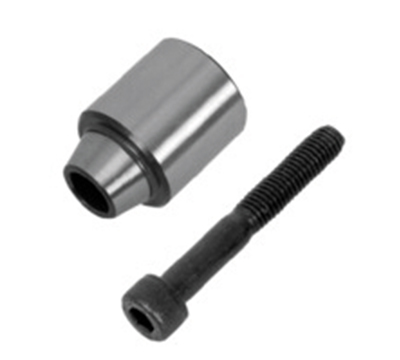

Centring piece, round, male component

Hasco Z0512/d1
54 HRC
1.2067
~ DIN ISO 8406

add to cart Inquiry Now

Centring piece, round, male component
253501637464857753-DESKTOP-DEFAULT

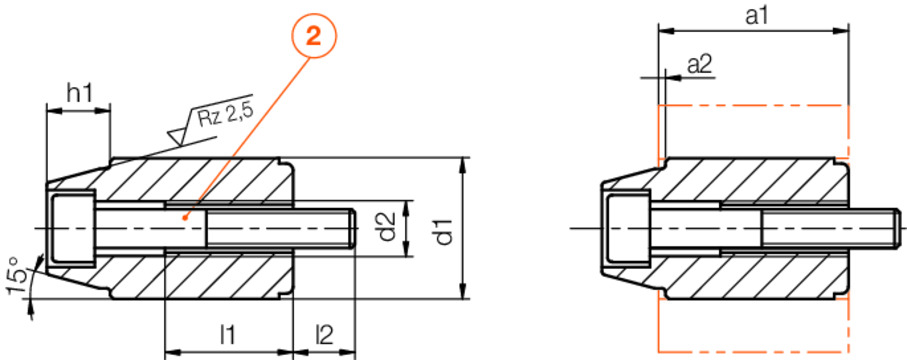

Pos2	h1	a2	a1	l2	l1	d2	d1	Product
Z31/3x20	4	0,5	11,5	8	6,6	M4	10	Z0512/10
Z31/3x25	4,5	1	17	8	9,6	M4	12	Z0512/12
Z31/4x25	6	1	17	7,5	12,4	M5	14	Z0512/14
Z31/4x25	6	1	17	7,5	12,4	M5	16	Z0512/16
Z31/6x40	9	1	27	12	19,7	M8	20	Z0512/20
Z31/6x40	10	1	27	11	19,7	M8	25	Z0512/25
Z31/6x40	10	1	27	11	19,7	M8	26	Z0512/26
Z31/8x55	14	1	36	15	25	M10	30	Z0512/30
Z31/8x55	14	1	36	15	25	M10	32	Z0512/32
Z31/8x70	18	1	46	16	27	M10	42	Z0512/42

The HASCO locating unit Z 051/. . . is used for centring mould plates to prevent damage to cavity inserts. It reliably absorbs any transverse forcesthat develop in the mould via conicalsurfaces.

Interchangeable parts
Single parts Z 0511/. . . and Z 0512 /. . . are available ex stock
Limited height tolerance
Simple screwing from the mould parting line and from the rear is possible
All functional surfaces are ground
Screws are included with the package
Fast removal with extraction thread
Intermediate sizes prevent undesired rotation
Geared to distance discs Z 055 /. . . possible
