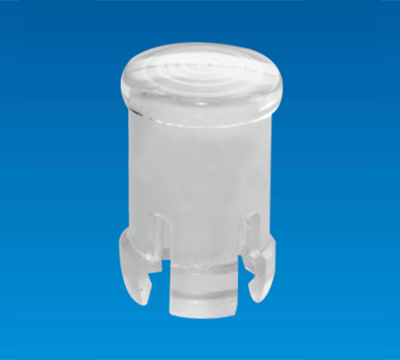

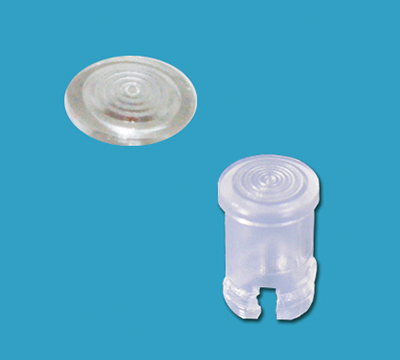

CLEAR LED CAP ROUND EDK-01
- Perform as a cover and light transporter for led lamp on the control panel.
- It can snap the unit into the hole on panel to assemble.
- High light transmission capability.
CLEAR LED CAP ROUND EDK-01
FEATURES
SPECIFICATION
FEATURES
- Perform as a cover and light transporter for led lamp on the control panel.
- It can snap the unit into the hole on panel to assemble.
- High light transmission capability.
SPECIFICATION
- MATERIAL: PC (UL)
- FLAME CLASS: 94V-2
- COLOR: CLEAR
- CAN BE USED AS AN OPTION UW-SERIES

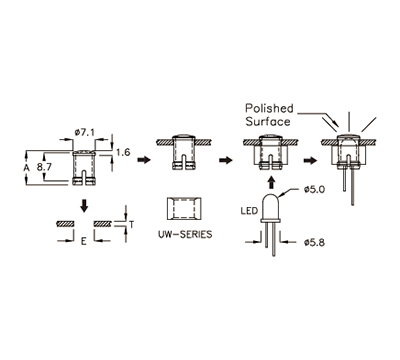

| PART NO | A | T CHASSIS THICKNESS |
SUITABLE HOLDER |
E HOLE IN CHASSIS |
PACKAGE |
|---|---|---|---|---|---|
| EDK-01 | 10.9 | 0.8 | UW-07C | Ø6.45 | 1000 |
| 1.0 | UW-07A | ||||
| 1.2 | UW-06C | ||||
| 1.6 | UW-06A | ||||
| 2.0 | UW-05C | ||||
| 2.5 | UW-05A | ||||
| 3.0 | UW-04C | ||||
| 6.7 | - |
