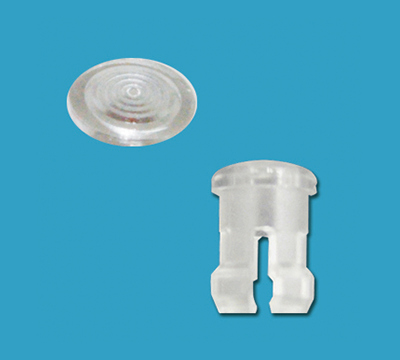

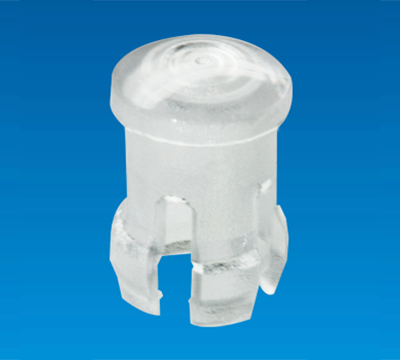

CLEAR LED CAP ROUND EDK-02
- Perform as a cover an light transporter for led lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High conductive capability.
- Custom made color is accepted,MOQ will be requested.
CLEAR LED CAP ROUND EDK-02
FEATURES
SPECIFICATION
FEATURES
- Perform as a cover an light transporter for led lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High conductive capability.
- Custom made color is accepted,MOQ will be requested.
SPECIFICATION
- MATERIAL: PC (UL)
- FLAME CLASS: 94V-2
- COLOR: CLEAR
- CAN BE USED AS AN OPTION P.G. PART UW-01C
| PART NO | A | B | C | T CHASSIS THICKNESS |
SUITABLE HOLDER |
E:HOLE IN CHASSIS |
PACKAGE | |
|---|---|---|---|---|---|---|---|---|
| EDK-02 | 7.3 | 5.0 | 5.6 | 0.8~2.8 | UW-01C | Ø4.3 | 1000 |
