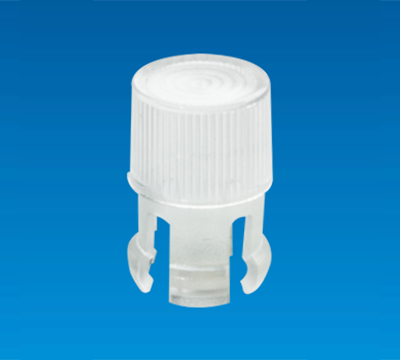

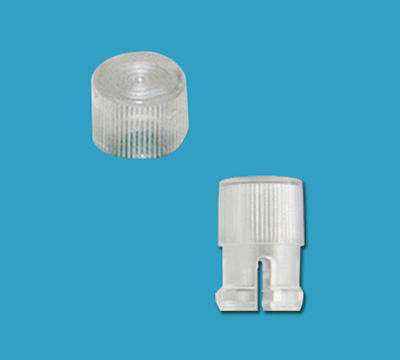

CLEAR LED CAP ROUND EDK-1A
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
- Accept customized color in accordance with client demand.
CLEAR LED CAP ROUND EDK-1A
FEATURES
SPECIFICATION
FEATURES
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
- Accept customized color in accordance with client demand.
SPECIFICATION
- MATERIAL: PC (UL)
- FLAME CLASS: 94V-2
- COLOR: CLEAR
| PART NO | A | B | C | D | E: HOLE IN CHASSIS |
T CHASSIS THICKNESS |
SUITABLE LED LAMP |
PACKAGE |
|---|---|---|---|---|---|---|---|---|
| EDK-1A | 10.9 | 7.2 | 9.1 | 5.4 | Ø6.4 | 3.2 | Ø5.0 | 1000 |
