Components & Accessories

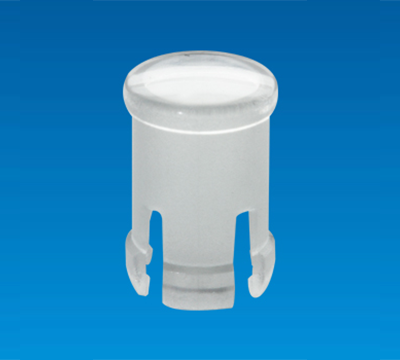

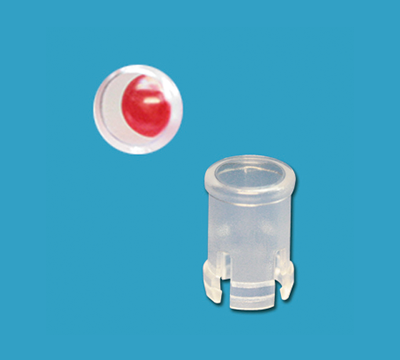

CLEAR LED CAP ROUND EDK-1C
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
- Accept customized color in accordance with client demand if order meets MOQ or more.
CLEAR LED CAP ROUND EDK-1C
FEATURES
SPECIFICATION
FEATURES
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
- Accept customized color in accordance with client demand if order meets MOQ or more.
SPECIFICATION
- MATERIAL: PC (UL)
- FLAME CLASS: 94V-2
- COLOR: CLEAR
| PART NO | A | B | E HOLE IN CHASSIS |
T CHASSIS THICKNESS |
FORM | PACKAGE |
|---|---|---|---|---|---|---|
| EDK-1C | 10.9 | 8.5 | Ø6.45 | 6.7 | 1 | 1000 |
| EDK-1TP | 10.8 | 8.9 | Ø6.45 | 6.7 | 2 | 1000 |
